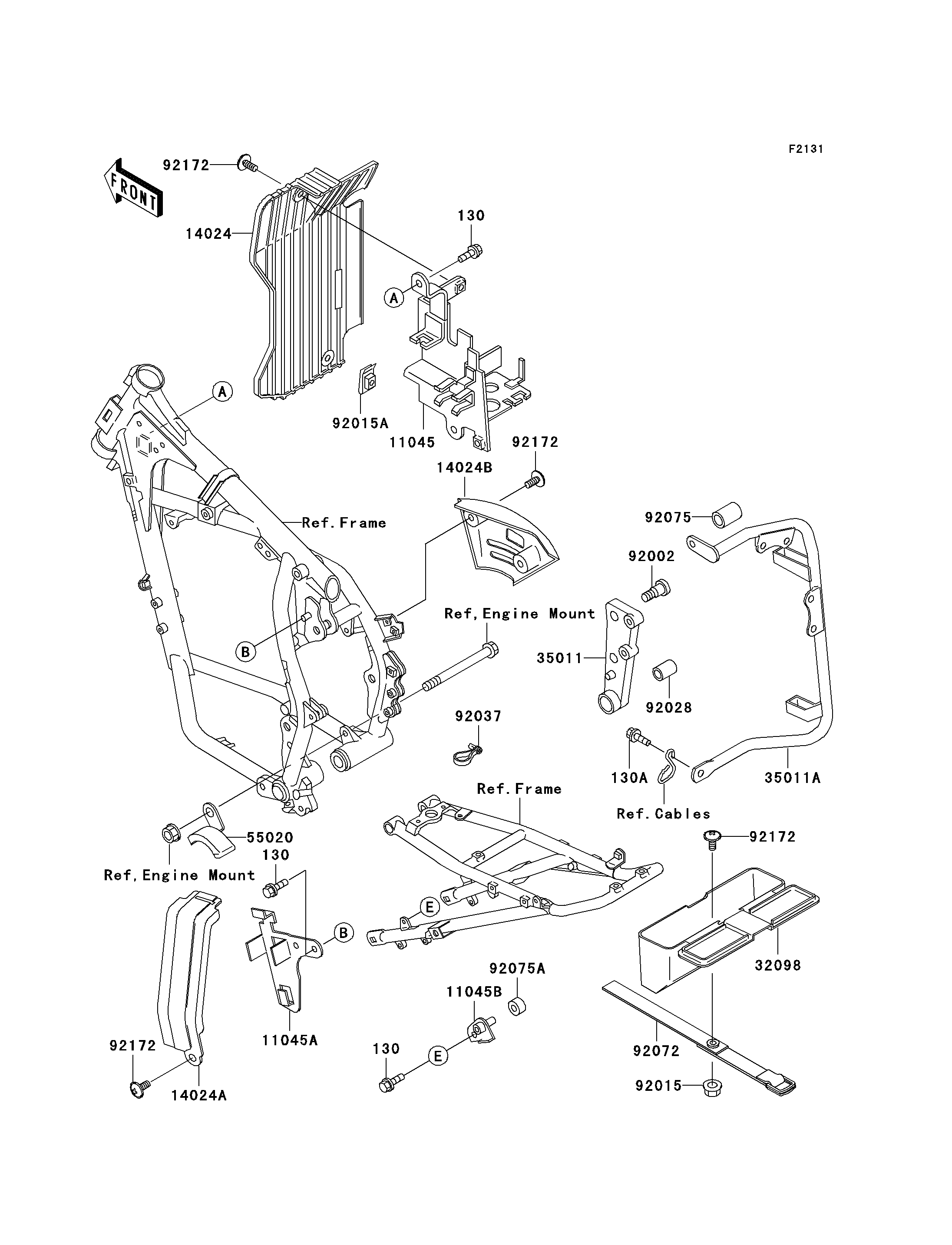

2006 KLR650 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
11045
11045A
11045B
14024
14024A
14024B
32098
35011
35011A
55020
92002
92015
92015A
92028
92037
92072
92075
92075A
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 4
BOLT-FLANGED,6X14 130A 130J0614 2
BRACKET,ELECTRIC,RH 11045 11045-1358 1
BRACKET,ELECTRIC,LH 11045A 11045-1359 1
BRACKET 11045B 11045-1360 1
COVER,FRONT RESERVOIR 14024 14024-1372 1
COVER,SIDE STAND SWITCH 14024A 14024-1373 1
COVER,RESERVOIR TANK 14024B 14024-1470 1
CASE-TOOL,F.BLACK 32098 32098-1074-6Z 1
STAY 35011 35011-1327 1
STAY,HORN&RESERVOIR TANK 35011A 35011-1370 1
GUARD,CHAIN 55020 55020-1266 1
BOLT,SOCKET,8X23.5 92002 92002-1598 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,6MM 92015A 92015-1602 1
BUSHING 92028 92028-1259 1
CLAMP,SPEED,L=80.5 92037 92037-1903 1
BAND,TOOL CASE 92072 92072-1219 1
DAMPER 92075 92075-1941 1
DAMPER 92075A 92075-243 1
SCREW,6X14 92172 92172-0004 7
