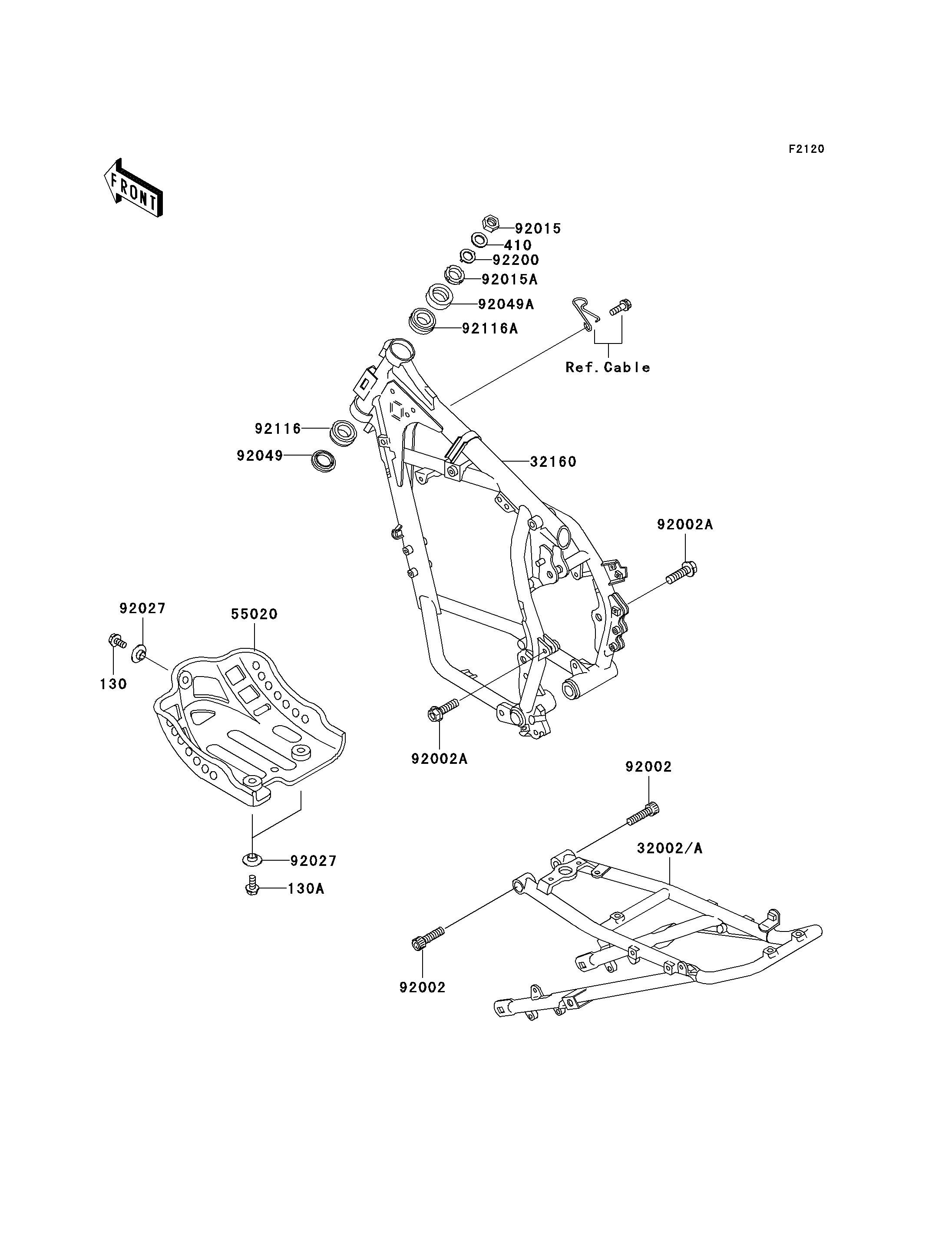

Parts Diagrams |
130
130A
410
32160
55020
92002
92002
92002A
92002A
92015
92015A
92027
92027
92049
92049A
92116
92116A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X12 | 130 | 130G0612 | 1 | ||
| BOLT-FLANGED,6X14 | 130A | 130G0614 | 2 | ||
| W-PLAIN-S | 410 | 410F1800 | 1 | ||
| FRAME-COMP,FR,SILVER | 32160 | 32160-1759-CE | 1 | ||
| GUARD,ENGINE,BLACK | 55020 | 55020-1249-6Z | 1 | ||
| BOLT,SOCKET,8X30 | 92002 | 92002-1844 | 2 | ||
| BOLT,FLANGED,8X28 | 92002A | 92002-1971 | 2 | ||
| NUT,18MM | 92015 | 92015-1404 | 1 | ||
| NUT,25MM,T=12 | 92015A | 92015-1546 | 1 | ||
| COLLAR | 92027 | 92027-1794 | 3 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,STEERING STEM | 92049A | 92049-1214 | 1 | ||
| BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER,HICAP 32005JR | 92116A | 92116-1052 | 1 | ||
| WASHER,CLAW,18.5X30X2.3 | 92200 | 92200-1357 | 1 | ||
| FRAME-COMP,RR,SILVER NO.25 | 32002 | 32002-1918-CE | 1 | CNUS | |
| FRAME-COMP,RR,SILVER NO.25 | 32002A | 32002-1923-CE | 1 | CA |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,FR,SILVER | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE,BLACK | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X28 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=12 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,STEERING STEM | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HICAP 32005JR | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLAW,18.5X30X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,RR,SILVER NO.25 | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| FRAME-COMP,RR,SILVER NO.25 | |
| REF # | 32002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
