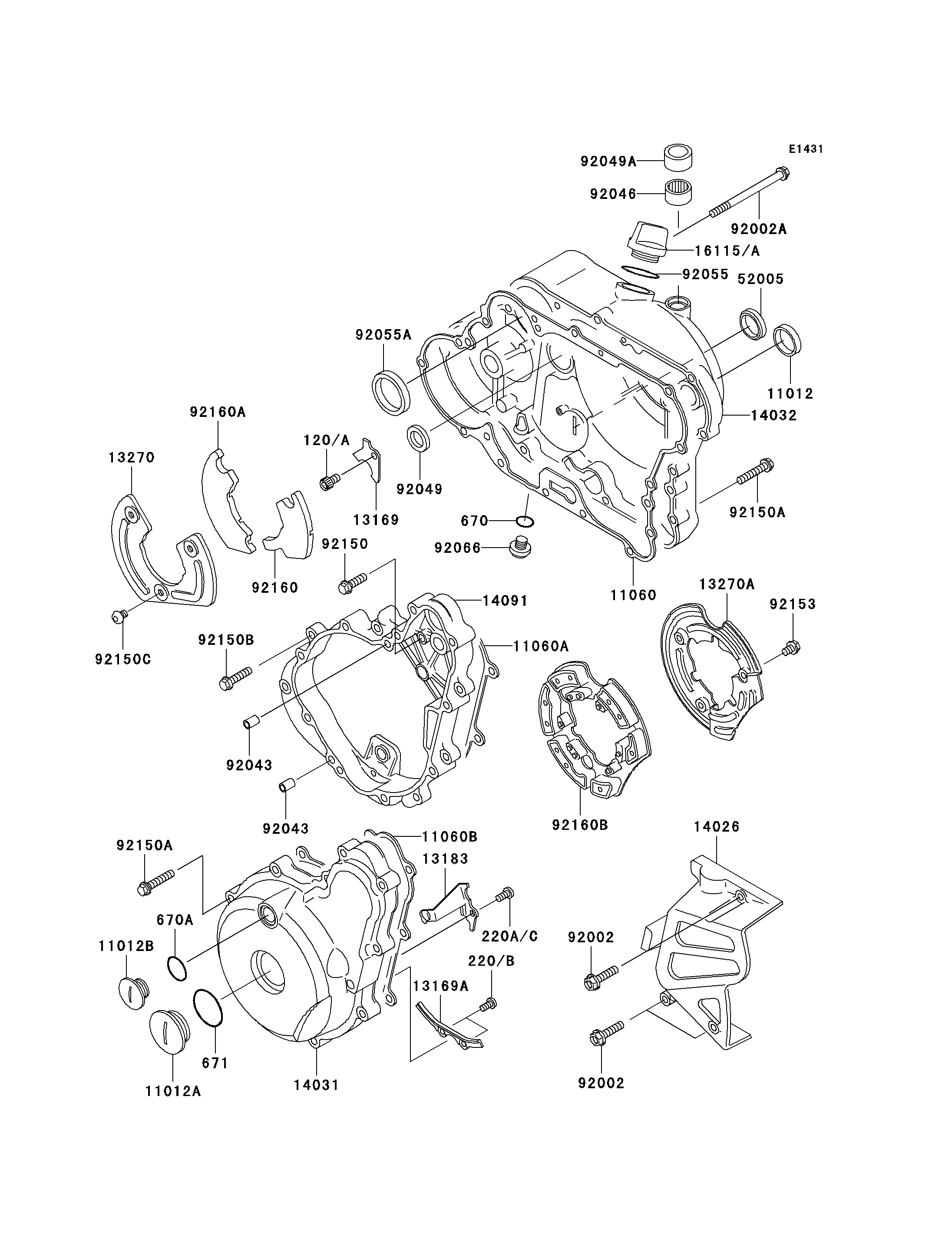

2006 KLR650 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120A
120A
220B
220B
11012
11012
11012A
11012A
11012B
11012B
11060
11060
11060A
11060A
11060B
11060B
13169
13169
13169A
13169A
13183
13183
13270
13270
13270A
13270A
14026
14026
14031
14031
14032
14032
14091
14091
16115
16115
52005
52005
92002
92002
92002
92002
92002A
92002A
92043
92043
92043
92043
92046
92046
92049
92049
92049A
92049A
92055
92055
92055A
92055A
92066
92066
92150
92150
92150A
92150A
92150A
92150A
92150B
92150B
92150C
92150C
92153
92153
92160
92160
92160A
92160A
92160B
92160B
220C
220C
670
670
670A
670A
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120A 120P0610 1
SCREW-PAN-CROS,5X10 220B 220B0510 2
CAP 11012 11012-1567 1
CAP 11012A 11012-1693 1
CAP,TOP MARK 11012B 11012-1694 1
GASKET,CLUTCH COVER 11060 11060-1111 1
GASKET,GENERATOR CASE COVER 11060A 11060-1692 1
GASKET,GENERATOR COVER 11060B 11060-1693 1
PLATE,OIL SEAL 13169 13169-1735 1
PLATE,PULSING COIL LEAD 13169A 13169-1882 1
PLATE,GENERATOR 13183 13183-1144 1
PLATE 13270 13270-1438 1
PLATE 13270A 13270-1667 1
COVER-CHAIN 14026 14026-1225 1
COVER-GENERATOR 14031 14031-0016 1
COVER-CLUTCH 14032 14032-0022 1
COVER,GENERATOR CASE 14091 14091-0158 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,FLANGED,6X25 92002 92002-1086 3
BOLT,FLANGED,6X80 92002A 92002-1568 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210 92046 92046-1010 1
SEAL-OIL,SCY 15X30X7 92049 92049-1158 1
SEAL-OIL 92049A 92049-1271 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
BOLT,6X20 92150 92150-1010 1
BOLT,6X30 92150A 92150-1021 24
BOLT,FLANGED-SMALL,6X25 92150B 92150-1779 8
BOLT,6X7 92150C 92150-1902 3
BOLT,6X8 92153 92153-0528 3
DAMPER 92160 92160-1608 1
DAMPER 92160A 92160-1609 1
DAMPER 92160B 92160-1763 1
SCREW-PAN-CROS,6X12 220C 220B0612 1
O RING,11MM 670 670B2011 1
O RING,18MM 670A 670B2018 1
O RING,40MM 671 671B2540 1
