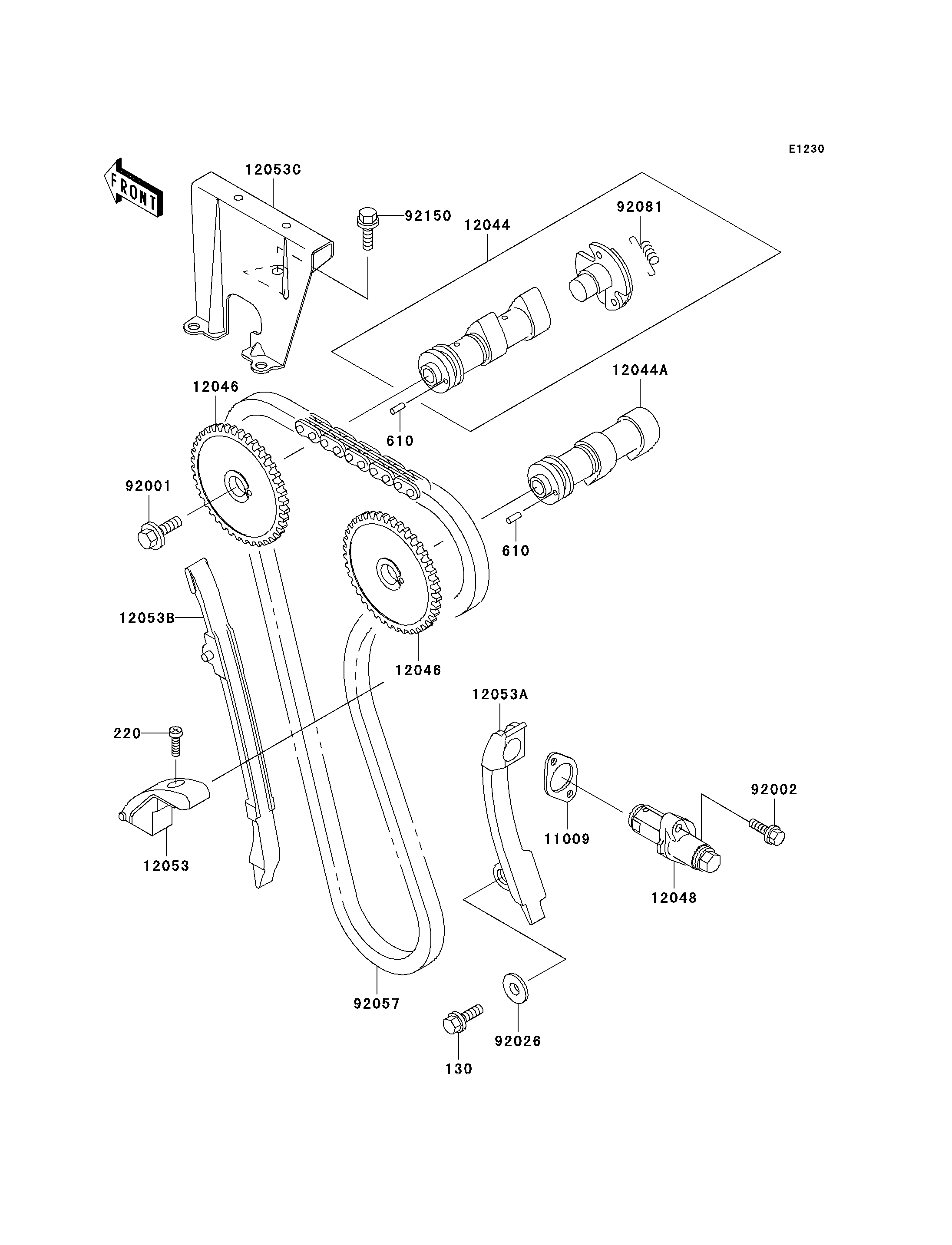

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
220
610
610
11009
12044
12044A
12046
12046
12048
12053
12053A
12053B
12053C
92001
92002
92026
92057
92081
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25 | 130 | 130G0825 | 1 | ||
| SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 1 | ||
| ROLLER,4X10 | 610 | 610A0410 | 2 | ||
| GASKET,TENSIONER | 11009 | 11009-1858 | 1 | ||
| CAMSHAFT-VALVE,EXHAUST | 12044 | 12044-1370 | 1 | ||
| CAMSHAFT-VALVE,INTAKE | 12044A | 12044-1372 | 1 | ||
| SPROCKET,48T | 12046 | 12046-1160 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-1094 | 1 | ||
| GUIDE-CHAIN,LWR | 12053 | 12053-1134 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-1222 | 1 | ||
| GUIDE-CHAIN,FR | 12053B | 12053-1223 | 1 | ||
| GUIDE-CHAIN,UPP | 12053C | 12053-1353 | 1 | ||
| BOLT,10X23 | 92001 | 92001-1859 | 2 | ||
| BOLT,FLANGED,6X25 | 92002 | 92002-1086 | 2 | ||
| SPACER | 92026 | 92026-1146 | 1 | ||
| CHAIN,CAM,92RH2015 | 92057 | 92057-1402 | 1 | ||
| SPRING,DECOMPRESSOR | 92081 | 92081-1626 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1868 | 1 |
| BOLT-FLANGED,8X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X10 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,TENSIONER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-VALVE,EXHAUST | |
| REF # | 12044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-VALVE,INTAKE | |
| REF # | 12044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,48T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TENSIONER-ASSY | |
| REF # | 12048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,LWR | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X23 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAM,92RH2015 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DECOMPRESSOR | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
