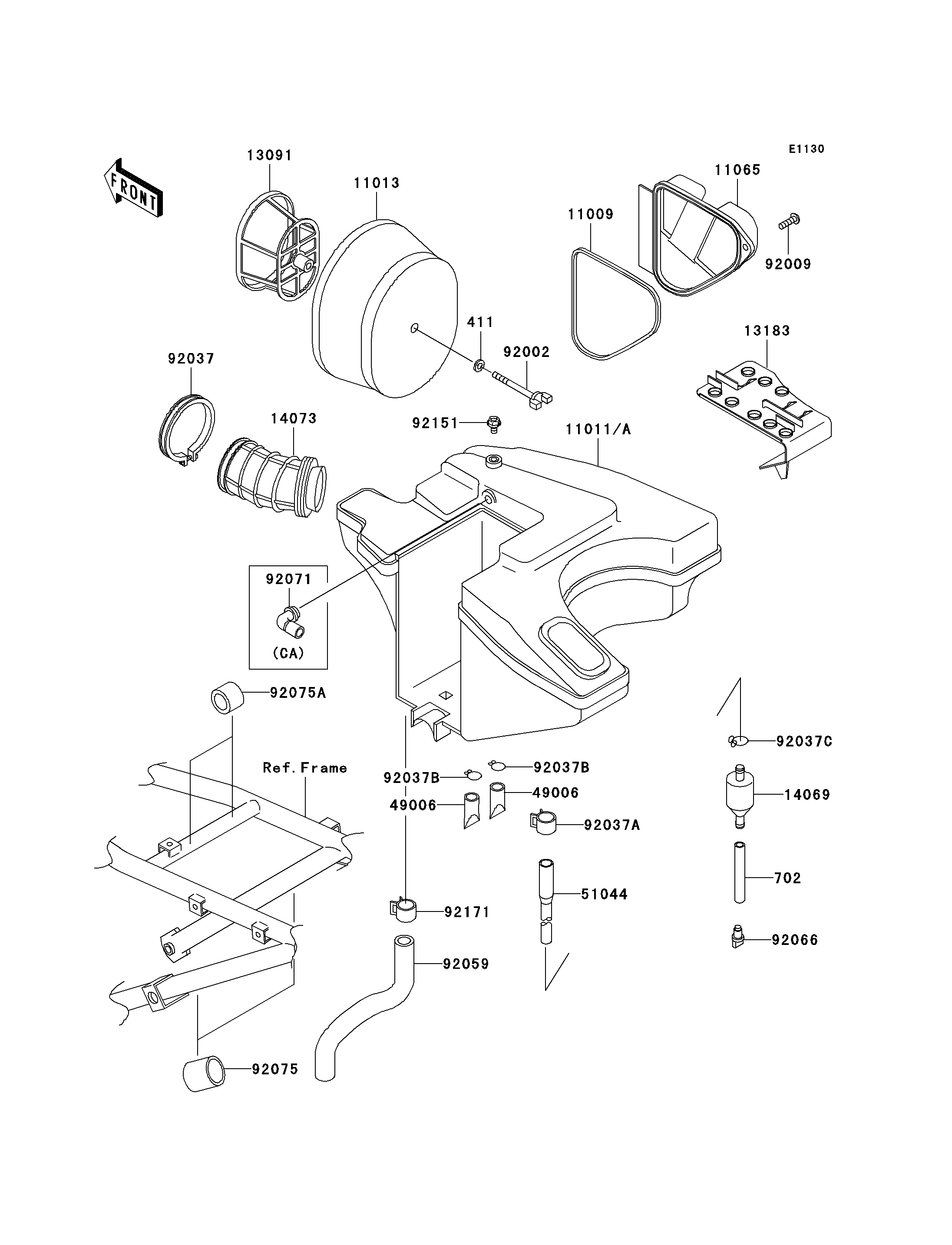

2006 KLR650 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
411
702
11009
11013
11065
13091
13183
14069
14073
49006
49006
51044
92002
92009
92037
92037A
92037B
92037B
92037C
92059
92066
92075
92075A
92151
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411E0600 1
TUBE-RUBBER,7X10X70 702 702A0770 1
GASKET 11009 11009-1649 1
ELEMENT-AIR FILTER 11013 11013-1152 1
CAP,AIR FILTER 11065 11065-1133 1
HOLDER 13091 13091-1473 1
PLATE 13183 13183-1118 1
BREATHER 14069 14069-1051 1
DUCT 14073 14073-1288 1
BOOT 49006 49006-1211 2
TUBE-ASSY,AIR FILTER 51044 51044-1105 1
BOLT 92002 92002-1904 1
SCREW 92009 92009-1460 1
CLAMP 92037 92037-1859 1
CLAMP 92037A 92037-1861 1
CLAMP,14.5MM 92037B 92037-1900 2
CLAMP,TUBE 92037C 92037-1972 1
TUBE 92059 92059-1774 1
PLUG,DRAIN 92066 92066-1211 1
DAMPER,25X31X30 92075 92075-1906 2
DAMPER,18X27X20 92075A 92075-1907 2
BOLT,6X10 92151 92151-1344 1
CLAMP 92171 92171-0329 1
CASE-AIR FILTER 11011 11011-1457 1 CNUS
CASE-AIR FILTER 11011A 11011-1458 1 CA
GROMMET,AIR FILTER 92071 92071-1147 1 CA
