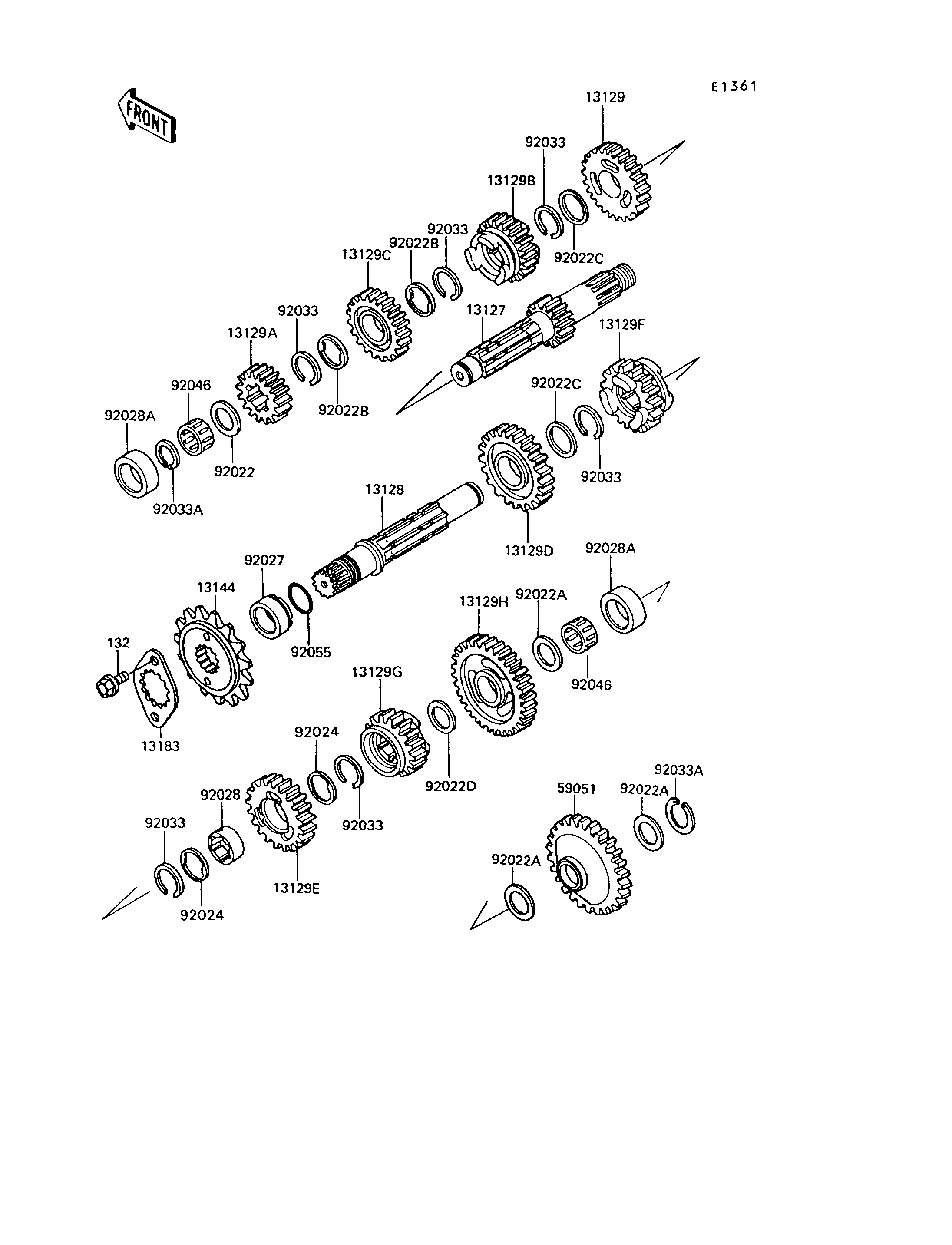

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-1147 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1175 | 1 | ||
| GEAR,INPUT TOP,24T | 13129 | 13129-1410 | 1 | ||
| GEAR,INPUT 2ND,17T | 13129A | 13129-1518 | 1 | ||
| GEAR,INPUT 3RD,22T | 13129B | 13129-1519 | 1 | ||
| GEAR,INPUT 4TH,22T | 13129C | 13129-1520 | 1 | ||
| GEAR,OUTPUT 2ND,26T | 13129D | 13129-1523 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13129E | 13129-1524 | 1 | ||
| GEAR,OUTPUT 4TH,21T | 13129F | 13129-1525 | 1 | ||
| GEAR,OUTPUT TOP,19T | 13129G | 13129-1575 | 1 | ||
| GEAR,OUTPUT LOW,34T | 13129H | 13129-1838 | 1 | ||
| SPROCKET-OUTPUT,15T | 13144 | 13144-1163 | 1 | ||
| PLATE,SPROCKET | 13183 | 13183-1525 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1102 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
| WASHER,20.3X29X0.5 | 92022A | 92022-1479 | 3 | ||
| WASHER,TOOTHED,25.3X29.5X0.5 | 92022B | 92022-1482 | 2 | ||
| WASHER,25.3X30X0.5 | 92022C | 92022-159 | 2 | ||
| WASHER,20.5X25.5X0.5 | 92022D | 92022-252 | 1 | ||
| WASHER,TOOTHED,22.5X31X0.5 | 92024 | 92024-038 | 2 | ||
| COLLAR,25X32X15.3 | 92027 | 92027-1800 | 1 | ||
| BUSHING,OUTPUT 3RD GEAR | 92028 | 92028-1299 | 1 | ||
| BUSHING,26X35X14 | 92028A | 92028-131 | 2 | ||
| RING-SNAP,24MM | 92033 | 92033-026 | 6 | ||
| RING-SNAP,18MM | 92033A | 92033-029 | 2 | ||
| BEARING-NEEDLE,KT202614 | 92046 | 92046-1170 | 2 | ||
| RING-O,21.5MM | 92055 | 92055-1293 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0608 | 2 |
