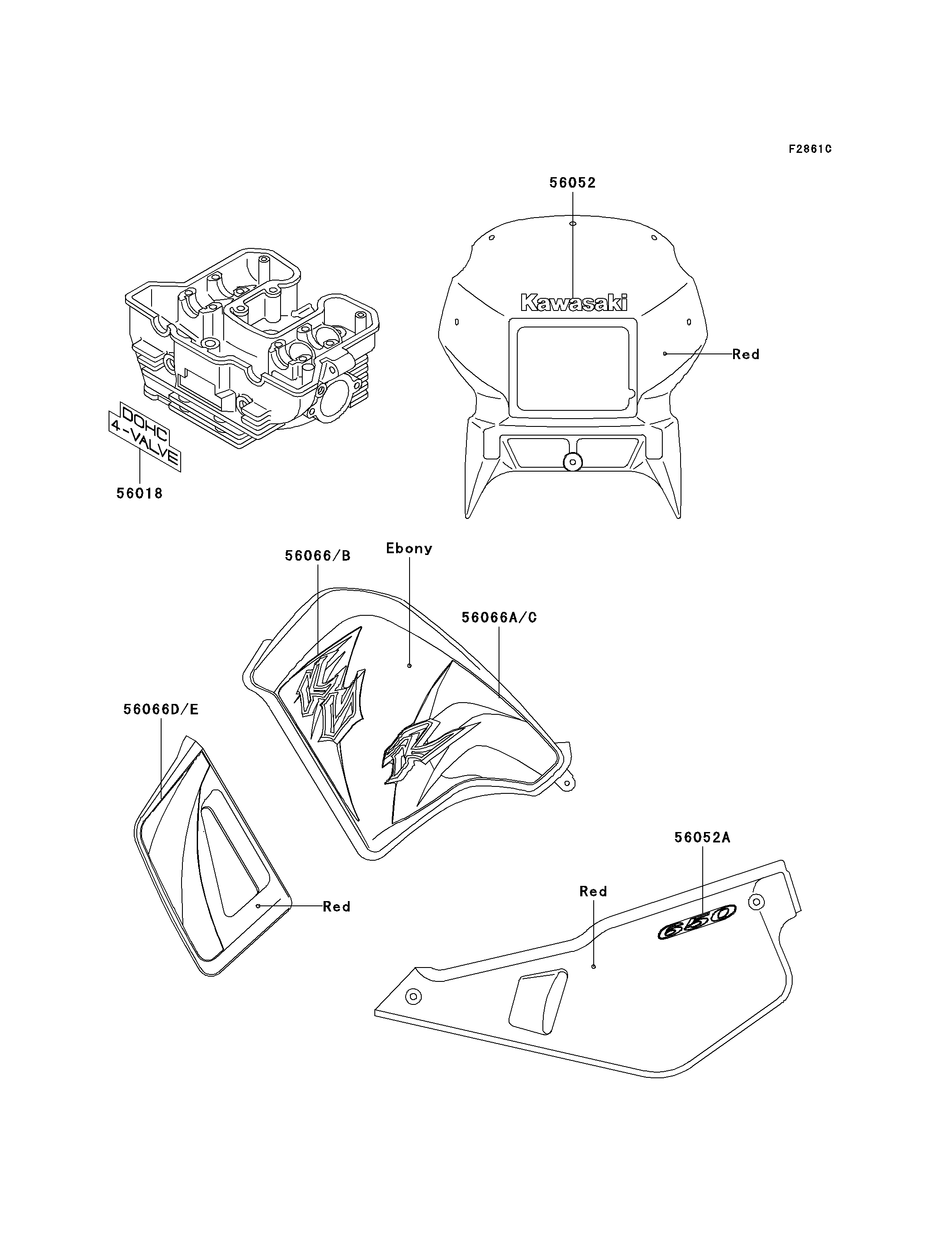

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| MARK,HEAD LAMP COVER,KAWASAKI | 56052 | 56052-0132 | 1 | ||
| MARK,SIDE COVER,650 | 56052A | 56052-0133 | 2 | ||
| PATTERN,FUEL TANK,UPP,LH | 56066 | 56066-0343 | 1 | ||
| PATTERN,FUEL TANK,LWR,LH | 56066A | 56066-0344 | 1 | ||
| PATTERN,FUEL TANK,UPP,RH | 56066B | 56066-0345 | 1 | ||
| PATTERN,FUEL TANK,LWR,RH | 56066C | 56066-0346 | 1 | ||
| PATTERN,SHROUD,LH | 56066D | 56066-0347 | 1 | ||
| PATTERN,SHROUD,RH | 56066E | 56066-0348 | 1 |
