Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

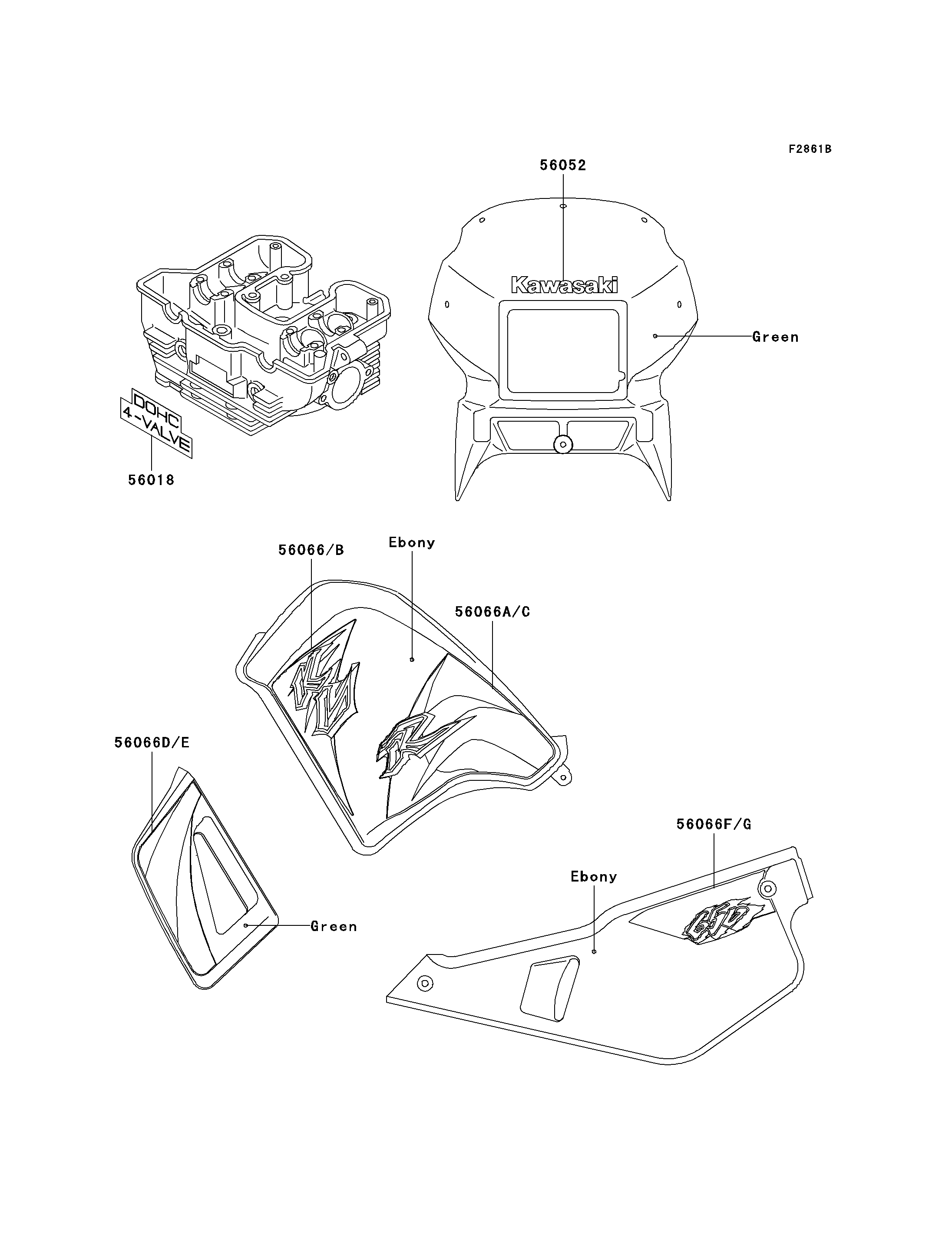

56018
56052
56066
56066A
56066B
56066C
56066D
56066E
56066F
56066G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,HEAD LAMP COVER,KAWASAKI 56052 56052-1756 1
PATTERN,FUEL TANK,UPP,LH 56066 56066-1083 1
PATTERN,FUEL TANK,LWR,LH 56066A 56066-1084 1
PATTERN,FUEL TANK,UPP,RH 56066B 56066-1085 1
PATTERN,FUEL TANK,LWR,RH 56066C 56066-1086 1
PATTERN,SHROUD,LH 56066D 56066-1087 1
PATTERN,SHROUD,RH 56066E 56066-1088 1
PATTERN,SIDE COVER,LH 56066F 56066-1131 1
PATTERN,SIDE COVER,RH 56066G 56066-1132 1
