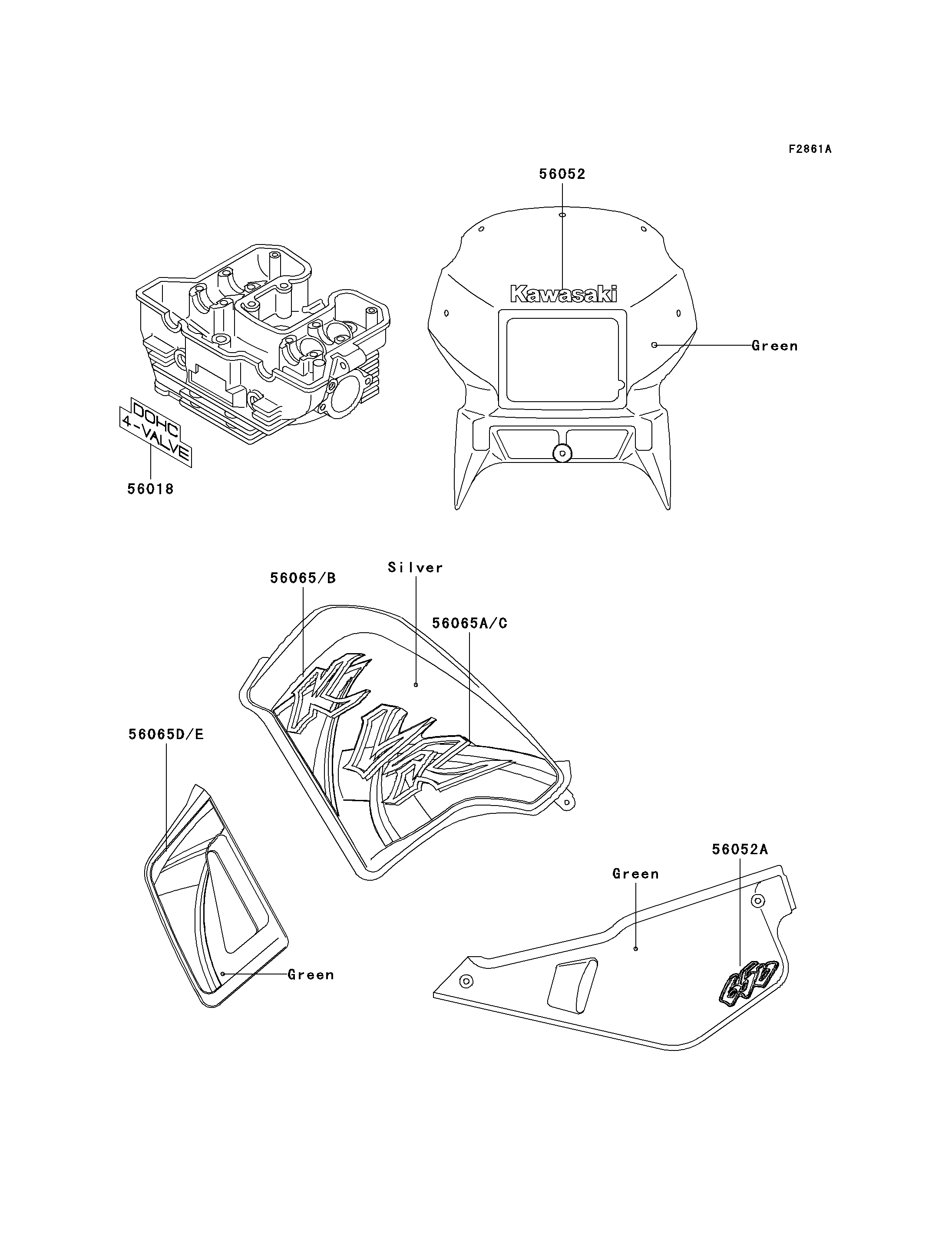

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| MARK,HEAD LAMP COVER,KAWASAKI | 56052 | 56052-1531 | 1 | ||
| MARK,SIDE COVER,650 | 56052A | 56052-1543 | 2 | ||
| PATTERN,FUEL TANK,UPP,LH | 56065 | 56065-1189 | 1 | ||
| PATTERN,FUEL TANK,LWR,LH | 56065A | 56065-1190 | 1 | ||
| PATTERN,FUEL TANK,UPP,RH | 56065B | 56065-1191 | 1 | ||
| PATTERN,FUEL TANK,LWR,RH | 56065C | 56065-1192 | 1 | ||
| PATTERN,SHROUD,LH | 56065D | 56065-1193 | 1 | ||
| PATTERN,SHROUD,RH | 56065E | 56065-1194 | 1 |
