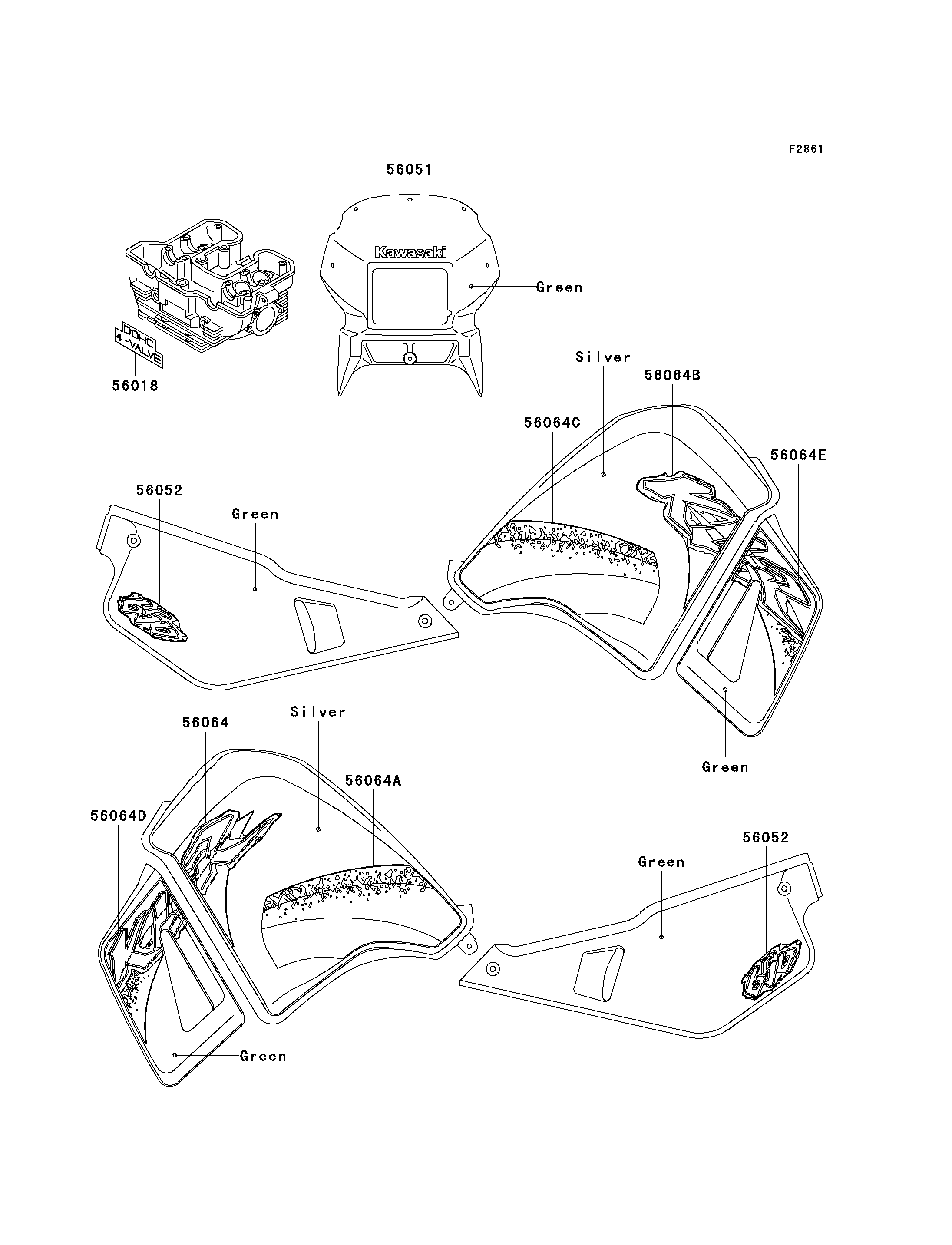

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| MARK,KAWASAKI | 56051 | 56051-1329 | 1 | ||
| MARK,SIDE COVER,650 | 56052 | 56052-1337 | 2 | ||
| PATTERN,FUEL TANK,UPP,LH | 56064 | 56064-1198 | 1 | ||
| PATTERN,FUEL TANK,LWR,LH | 56064A | 56064-1199 | 1 | ||
| PATTERN,FUEL TANK,UPP,RH | 56064B | 56064-1200 | 1 | ||
| PATTERN,FUEL TANK,LWR,RH | 56064C | 56064-1201 | 1 | ||
| PATTERN,SHROUD,LH | 56064D | 56064-1202 | 1 | ||
| PATTERN,SHROUD,RH | 56064E | 56064-1203 | 1 |
