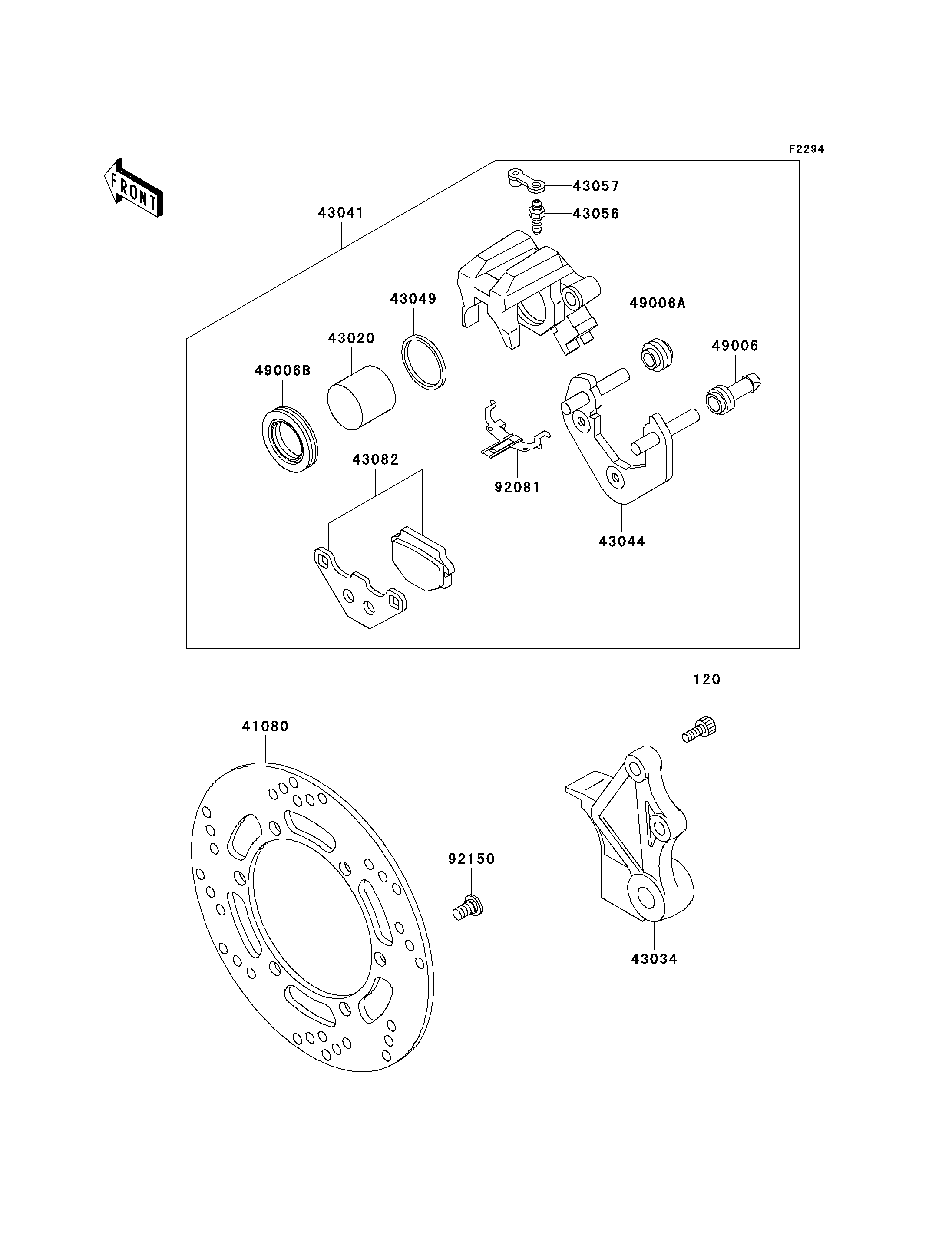

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET | 120 | 120P0816 | 2 | ||
| DISC,RR | 41080 | 41080-1179 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1082 | 1 | ||
| HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1135 | 1 | ||
| CALIPER-ASSY,RR,BLACK | 43041 | 43041-1916-DJ | 1 | ||
| HOLDER-COMP-CALIPER,RR | 43044 | 43044-1075 | 1 | ||
| PACKING,PISTON SEAL | 43049 | 43049-1095 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1096 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1054 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1055 | 1 | ||
| BOOT,PISTON | 49006B | 49006-1091 | 1 | ||
| SPRING,PAD | 92081 | 92081-1341 | 1 | ||
| BOLT,DISC PLATE,8X15 | 92150 | 92150-1852 | 6 |
