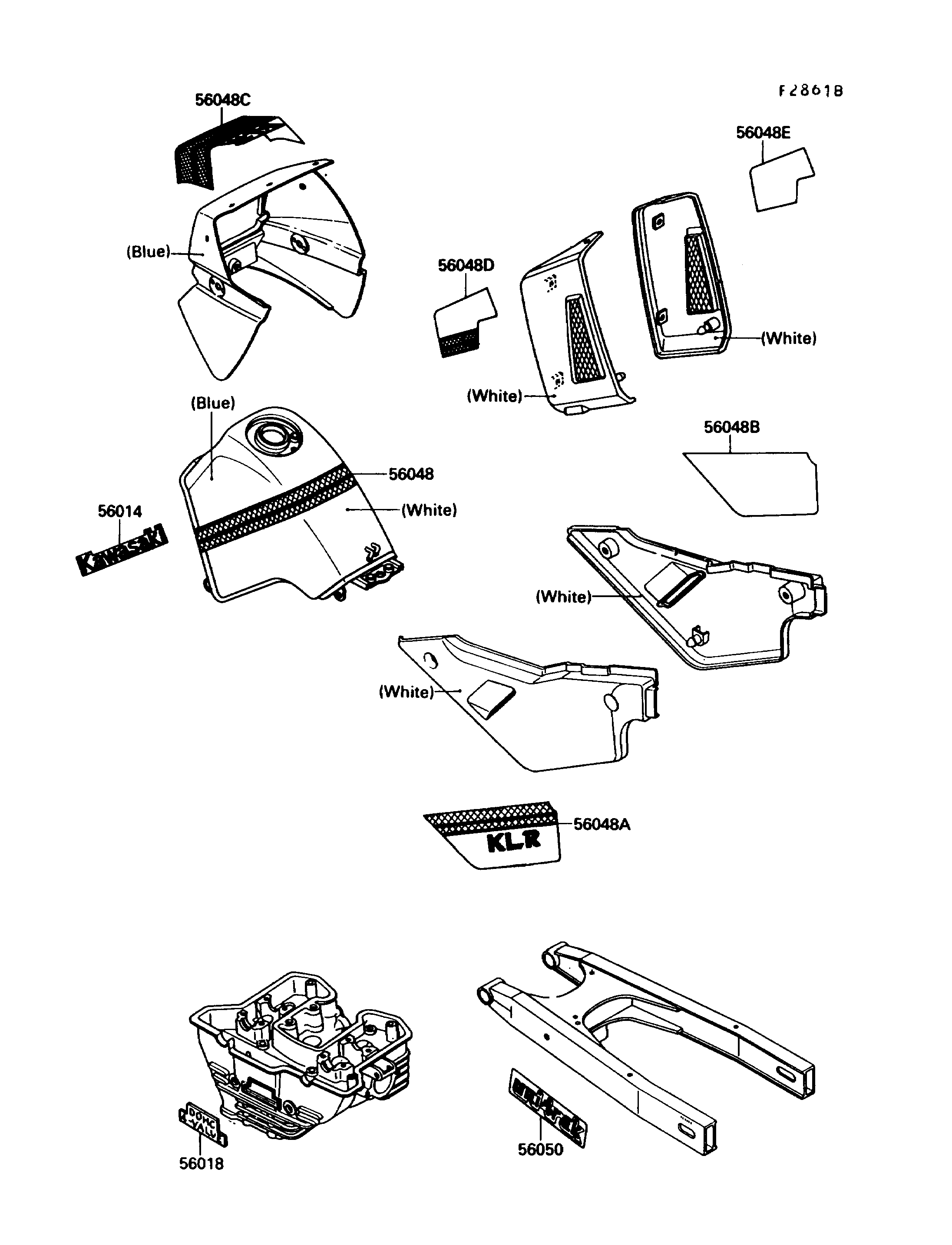

1989 KLR650 - Decal(Blue/White)(KL650-A3/A4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1236 | 2 | ||
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| PATTERN,FUEL TANK | 56048 | 56048-1732 | 1 | ||
| PATTERN,SIDE COVER,LH | 56048A | 56048-1733 | 1 | ||
| PATTERN,SIDE COVER,RH | 56048B | 56048-1734 | 1 | ||
| PATTERN,COWLING | 56048C | 56048-1735 | 1 | ||
| PATTERN,SHROUD,LH | 56048D | 56048-1736 | 1 | ||
| PATTERN,SHROUD,RH | 56048E | 56048-1737 | 1 | ||
| MARK,SWING ARM,LH,GREEN&BLUE | 56050 | 56050-1170 | 2 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,CYLINDER HEAD | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK | |
| REF # | 56048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,COWLING | |
| REF # | 56048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SWING ARM,LH,GREEN&BLUE | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
