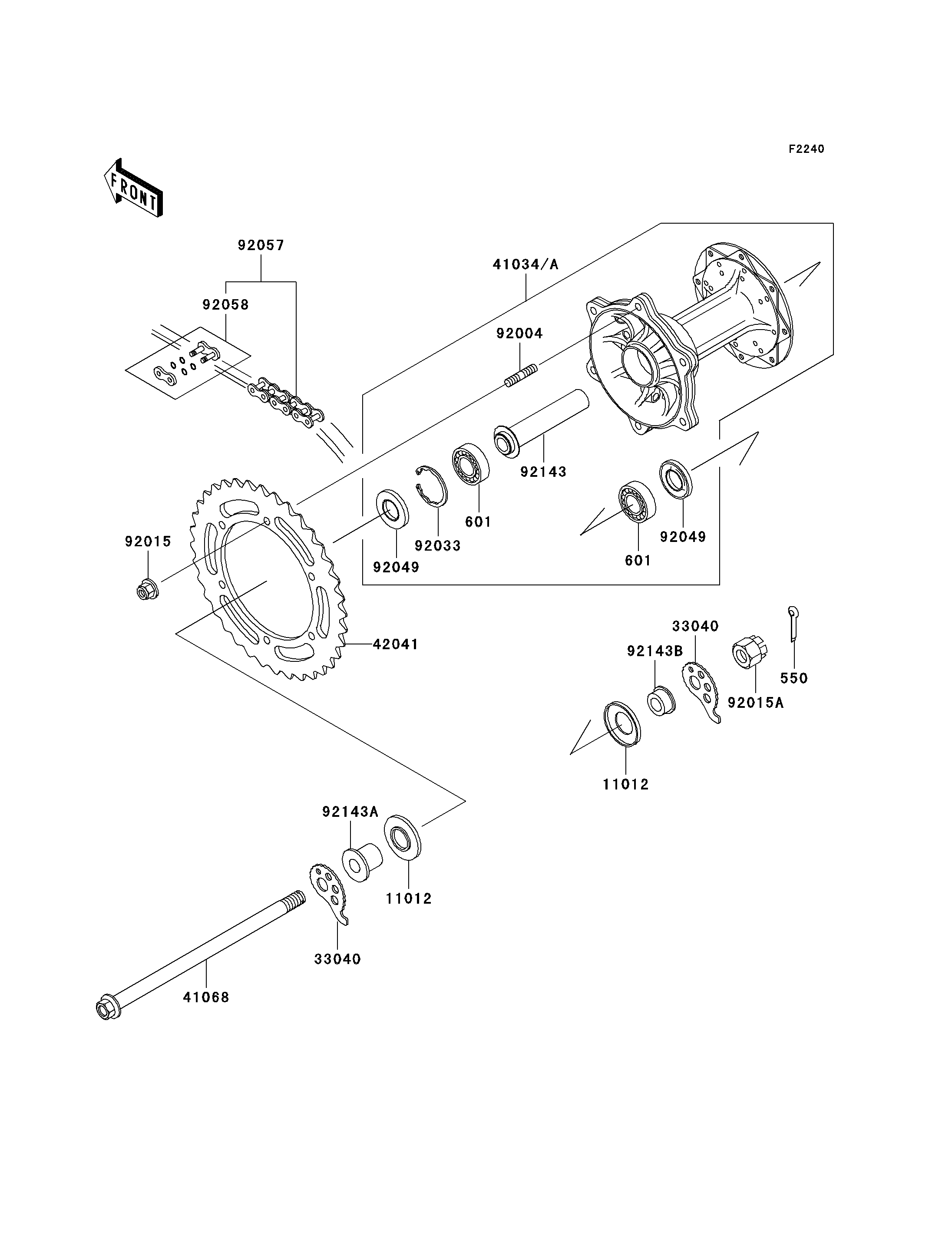

2004 Super Sherpa (Canada Only) - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
11012
11012
33040
33040
41034A
41068
42041
92004
92015
92015A
92033
92049
92049
92057
92058
92143
92143A
92143B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6302UG 601 601B6302UG 2
CAP,AXLE 11012 11012-1581 2
ADJUSTER-CHAIN 33040 33040-1163 2
DRUM-ASSY,REAR BRAKE 41034A 41034-1306 1
AXLE,RR 41068 41068-1393 1
SPROCKET-HUB,43T 42041 42041-1488 1
STUD,8X17 92004 92004-1239 6
NUT,8MM 92015 92015-1432 6
NUT,CASTLE,14MM 92015A 92015-1765 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,MHSA25 42 6 92049 92049-1314 2
CHAIN,DRIVE,EK520LV-OX102L 92057 92057-0017 1
JOINT-CHAIN,DRIVE 92058 92058-1100 1
COLLAR,L=115 92143 92143-1020 1
COLLAR,RR AXLE,LH,L=28 92143A 92143-1924 1
COLLAR,RR AXLE,RH,L=13 92143B 92143-1925 1
