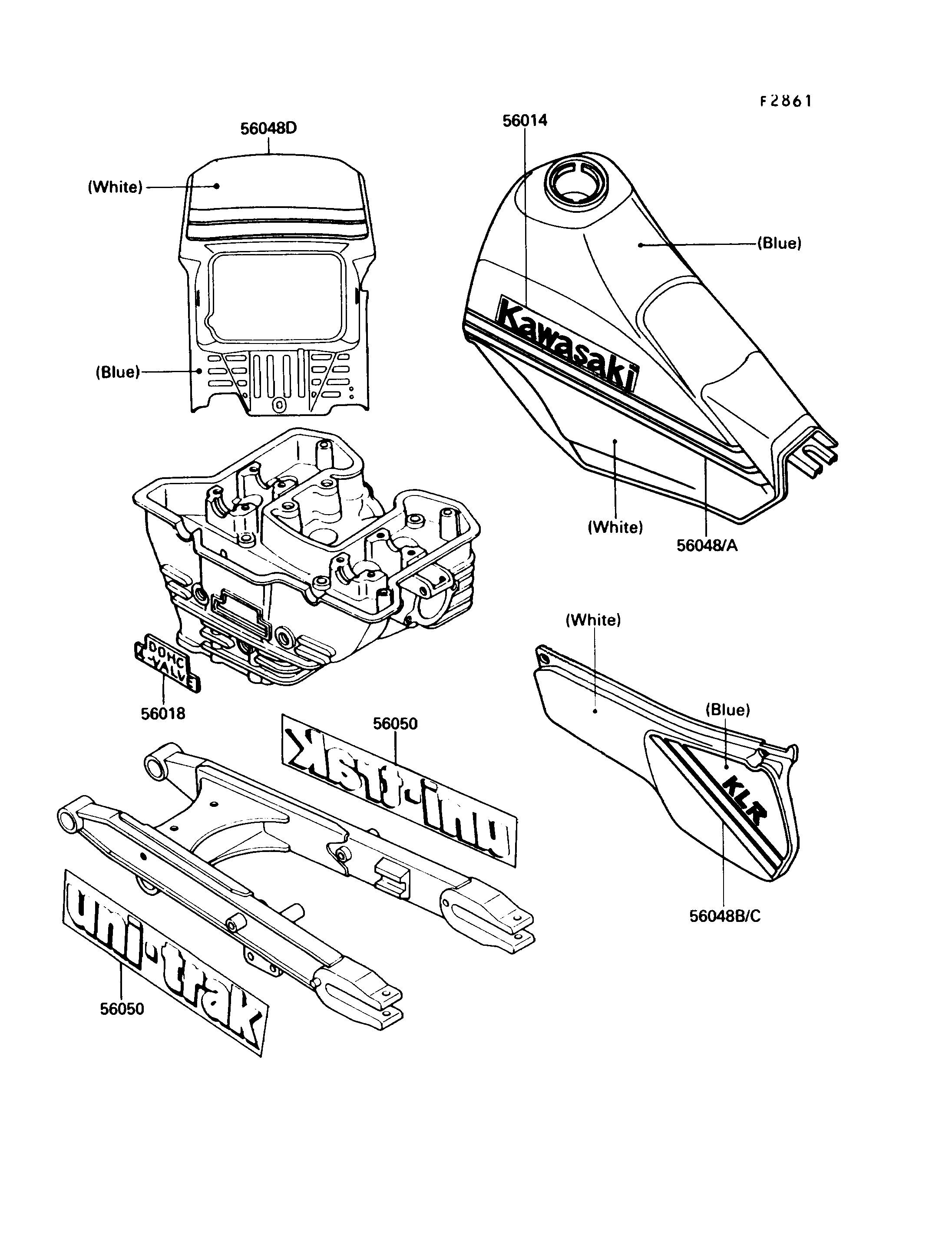

1990 KLR250 - Decal(Blue/White)(KL250-D7)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1230 | 2 | ||
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| PATTERN,FUEL TANK,LH | 56048 | 56048-1449 | 1 | ||
| PATTERN,FUEL TANK,RH | 56048A | 56048-1450 | 1 | ||
| PATTERN,SIDE COVER,LH | 56048B | 56048-1451 | 1 | ||
| PATTERN,SIDE COVER,RH | 56048C | 56048-1452 | 1 | ||
| PATTERN,HEAD LAMP COVER | 56048D | 56048-1453 | 1 | ||
| MARK,SWING ARM,LH,GREEN&BLUE | 56050 | 56050-1170 | 2 |
