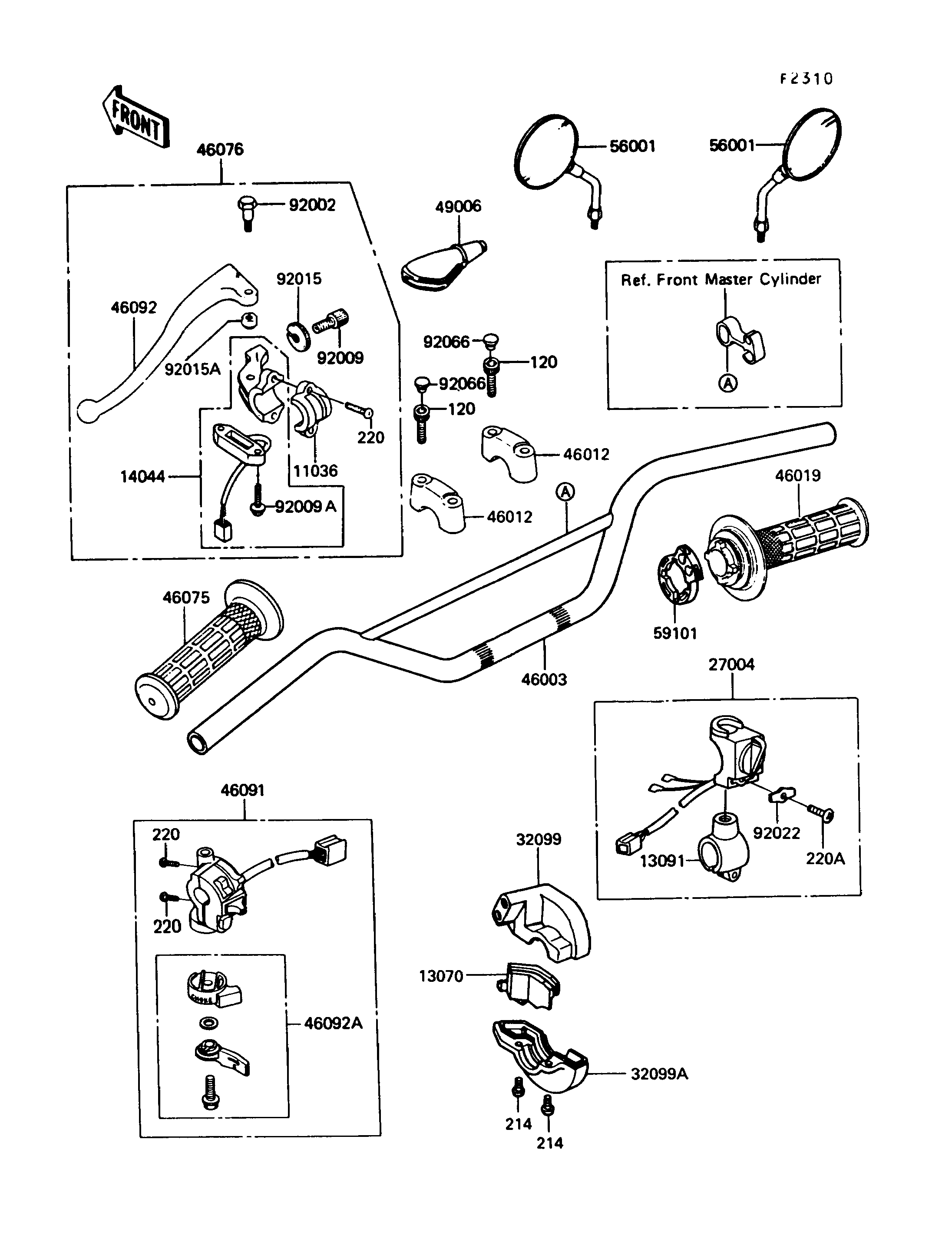

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,LEVER HOLDER | 11036 | 11036-1297 | 1 | ||
| GUIDE,THROTTLE PEACE | 13070 | 13070-1131 | 1 | ||
| HOLDER,ENGINE STOP SWITCH | 13091 | 13091-1255 | 1 | ||
| HOLDER-CABLE,CLUTCH | 14044 | 14044-1052 | 1 | ||
| SWITCH-ASSY,ENGINE STOP | 27004 | 27004-1056 | 1 | ||
| CASE,THROTTLE,UPP | 32099 | 32099-1072 | 1 | ||
| CASE,THROTTLE,LWR | 32099A | 32099-1073 | 1 | ||
| HANDLE | 46003 | 46003-1174 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-1102 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
| GRIP,LH | 46075 | 46075-1051 | 1 | ||
| LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1129 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1309 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1111 | 1 | ||
| LEVER-GRIP,CHOKE | 46092A | 46092-1123 | 1 | ||
| BOOT,LEVER HOLDER | 49006 | 49006-1099 | 1 | ||
| MIRROR-ASSY | 56001 | 56001-1204 | 2 | ||
| REEL,THROTTLE | 59101 | 59101-1106 | 1 | ||
| BOLT,LEVER SET | 92002 | 92002-1475 | 1 | ||
| SCREW,CABLE ADJUST,8MM | 92009 | 46055-009 | 1 | ||
| SCREW,TAPPING | 92009A | 92009-1336 | 2 | ||
| NUT,CABLE ADJUST | 92015 | 46056-006 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 1 | ||
| WASHER,ENGINE STOP SWITCH | 92022 | 92022-1474 | 1 | ||
| PLUG | 92066 | 92066-1216 | 4 | ||
| BOLT-SOCKET,8X30,BLACK | 120 | 120S0830 | 4 | ||
| SCREW-PAN+- | 214 | 214C0518 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0514 | 4 | ||
| SCREW-PAN-CROS,6X20,BLACK | 220A | 220C0620 | 1 |
