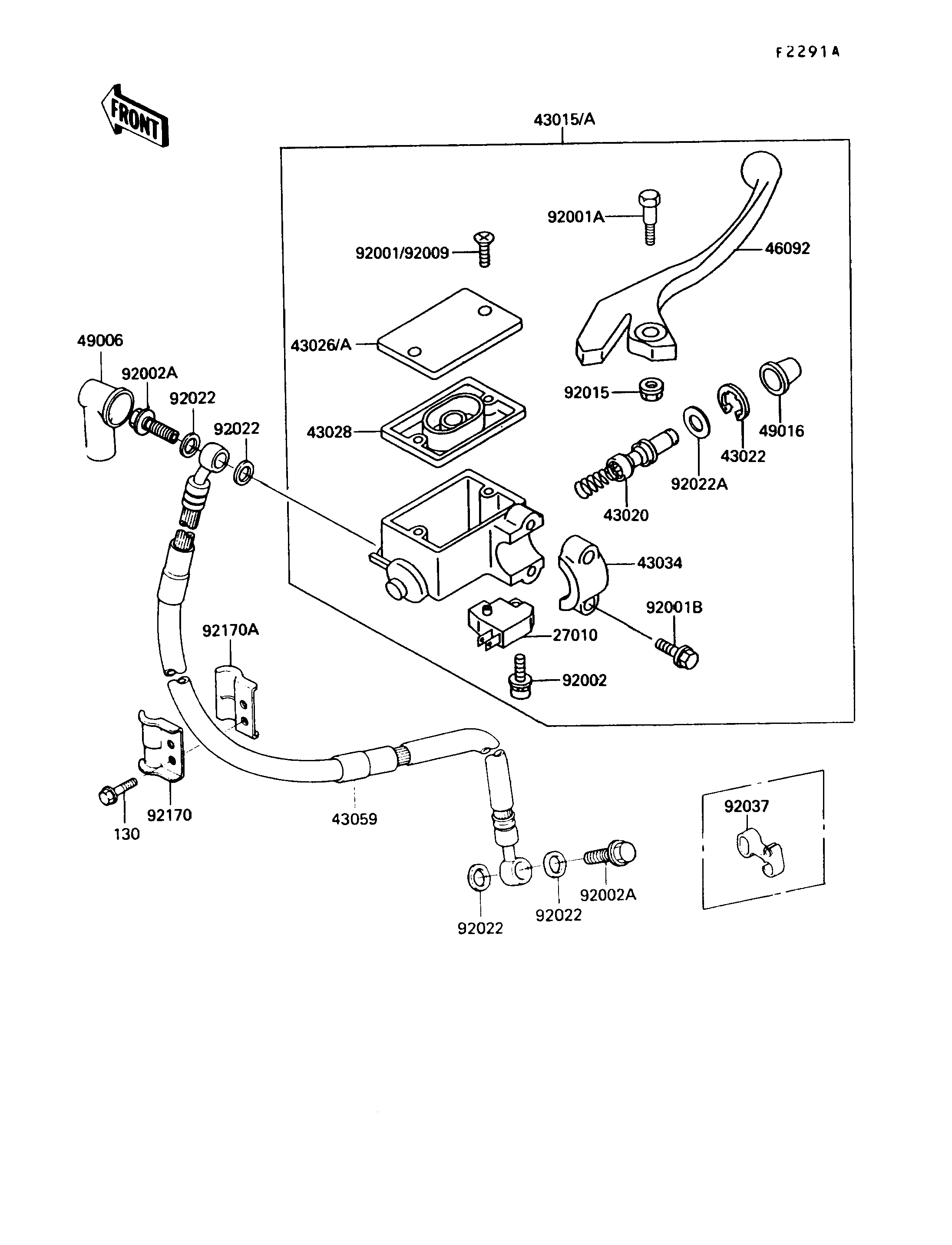

1992 KLR250 - Front Master Cylinder(KL250-D8/D9)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015A | 43015-1470 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1065 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE | 43026A | 43026-1074 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1061 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1016 | 1 | ||
| HOSE-BRAKE,FR | 43059 | 43059-1630 | 1 | ||
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1135 | 1 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| BOLT,FRONT BRAKE LEVER | 92001A | 92001-1728 | 1 | ||
| BOLT,6X25,BLACK | 92001B | 92001-1729 | 2 | ||
| BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
| BOLT,OIL,L=23 | 92002A | 92002-1888 | 2 | ||
| SCREW,4MM | 92009 | 92009-1458 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 4 | ||
| WASHER | 92022A | 92022-1814 | 1 | ||
| CLAMP,BRAKE HOSE | 92037 | 92037-1629 | 1 | ||
| CLAMP,BRAKE HOSE,OUTSIDE | 92170 | 92170-1231 | 1 | ||
| CLAMP,BRAKE HOSE,INSIDE | 92170A | 92170-1232 | 1 | ||
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 |
