Parts Diagrams |

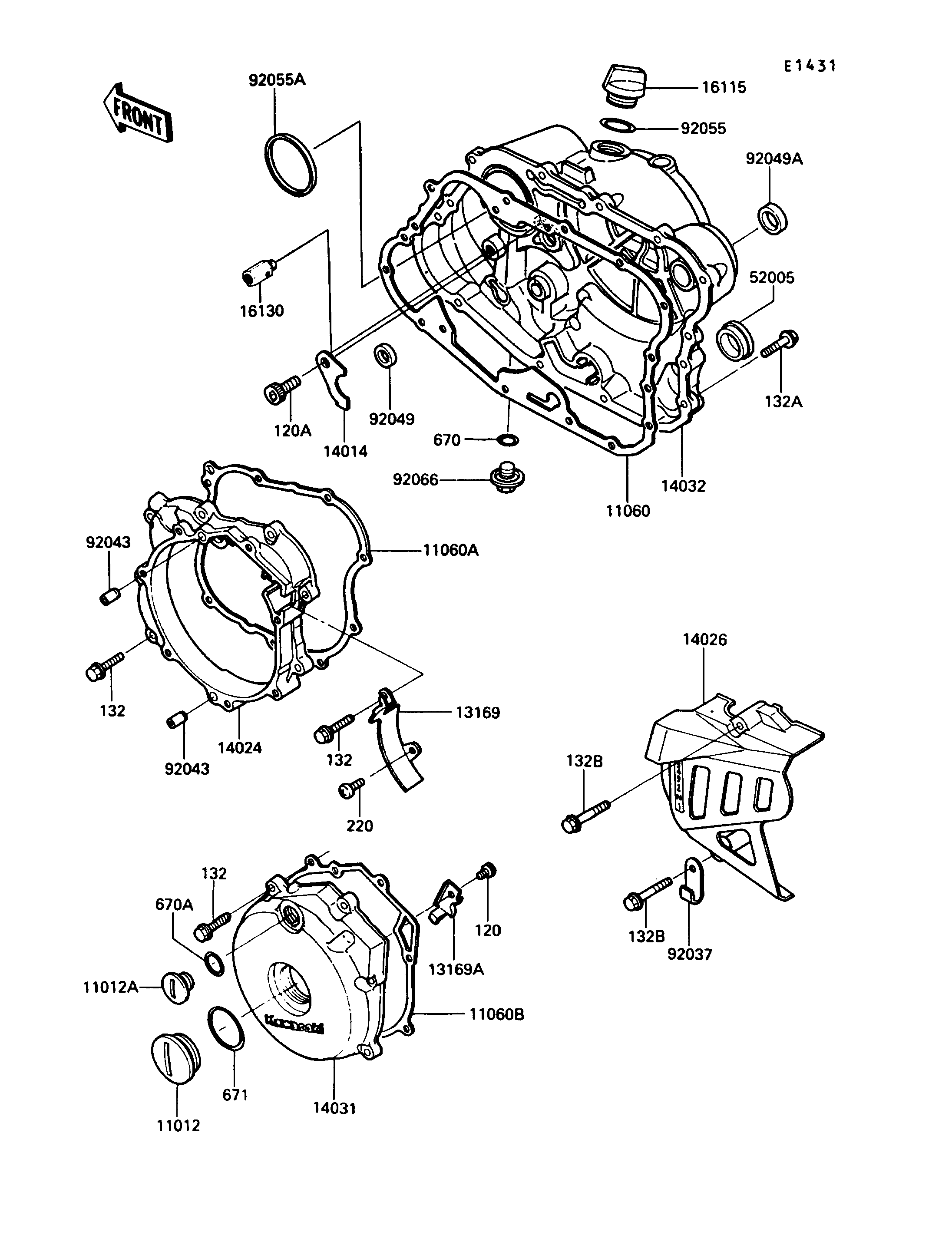

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1362 | 1 | ||
| CAP,TOP MARK | 11012A | 11012-1363 | 1 | ||
| GASKET,CLUTCH COVER | 11060 | 11060-1127 | 1 | ||
| GASKET,GENERATOR CASE COVER | 11060A | 11060-1128 | 1 | ||
| GASKET,GENERATOR COVER | 11060B | 11060-1129 | 1 | ||
| PLATE | 13169 | 13169-1879 | 1 | ||
| PLATE,GENERATOR LEAD | 13169A | 13169-1880 | 1 | ||
| PLATE-POSITION | 14014 | 14014-1062 | 1 | ||
| COVER,GENERATOR CASE | 14024 | 14025-1911 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1112 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1238 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1277 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1001 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
| SEAL-OIL | 92049 | 92049-1191 | 1 | ||
| SEAL-OIL | 92049A | 92050-078 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| RING-O,62.6X66X3.1 | 92055A | 92055-1221 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-1156 | 1 | ||
| BOLT-SOCKET | 120 | 120P0608 | 1 | ||
| BOLT-SOCKET,6X10 | 120A | 120P0610 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 16 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0630 | 13 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0645 | 2 | ||
| SCREW-PAN-CROS,6X8 | 220 | 220B0608 | 1 | ||
| O RING,11MM | 670 | 670B2011 | 1 | ||
| O RING,18MM | 670A | 670B2018 | 1 | ||
| O RING,40MM | 671 | 671B2540 | 1 |
