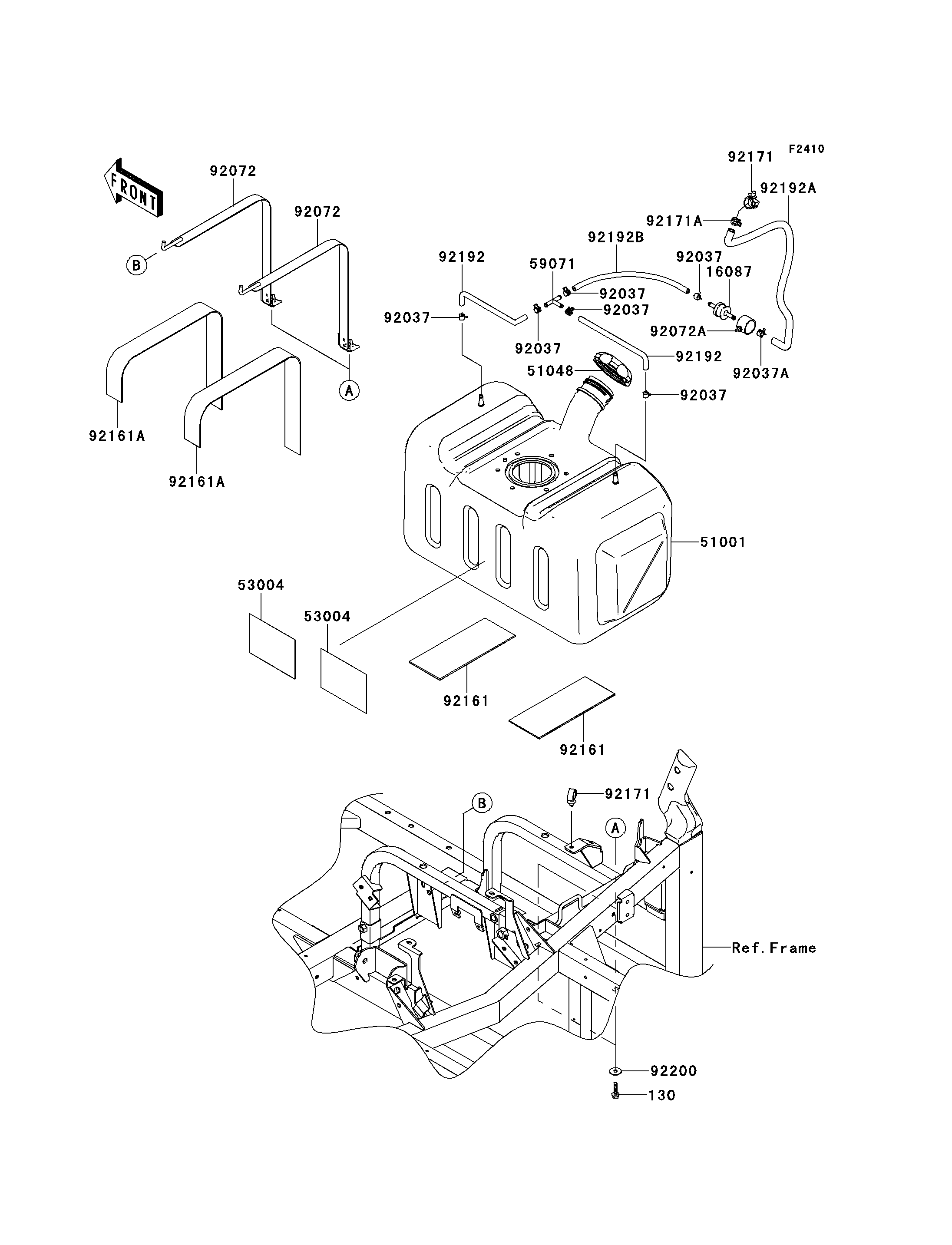

2013 TERYX® 750 FI 4x4 LE - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
16087
51001
51048
53004
53004
59071
92037
92037
92037
92037
92037
92037
92037A
92072
92072
92072A
92161
92161
92161A
92161A
92171
92171
92171A
92192
92192
92192A
92192B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 2
VALVE-CHECK 16087 16087-0703 1
TANK-COMP-FUEL 51001 51001-0291 1
CAP-ASSY-TANK,FUEL 51048 51048-0028 1
MAT,FUEL TANK 53004 53004-0050 2
JOINT 59071 59071-3705 1
CLAMP,TUBE 92037 92037-1461 6
CLAMP,TUBE 92037A 92037-1505 1
BAND,FUEL TANK 92072 92072-0132 2
BAND 92072A 92072-1438 1
DAMPER 92161 92161-0743 2
DAMPER,FUEL TANK 92161A 92161-0794 2
CLAMP 92171 92171-0453 2
CLAMP 92171A 92171-0515 1
TUBE,BREATHER 92192 92192-0773 2
TUBE,BREATHER,8X13X585/41 92192A 92192-1172 1
TUBE,BREATHER,5X9X220 92192B 92192-1199 1
WASHER,6.5X22X1.6 92200 92200-1087 2
