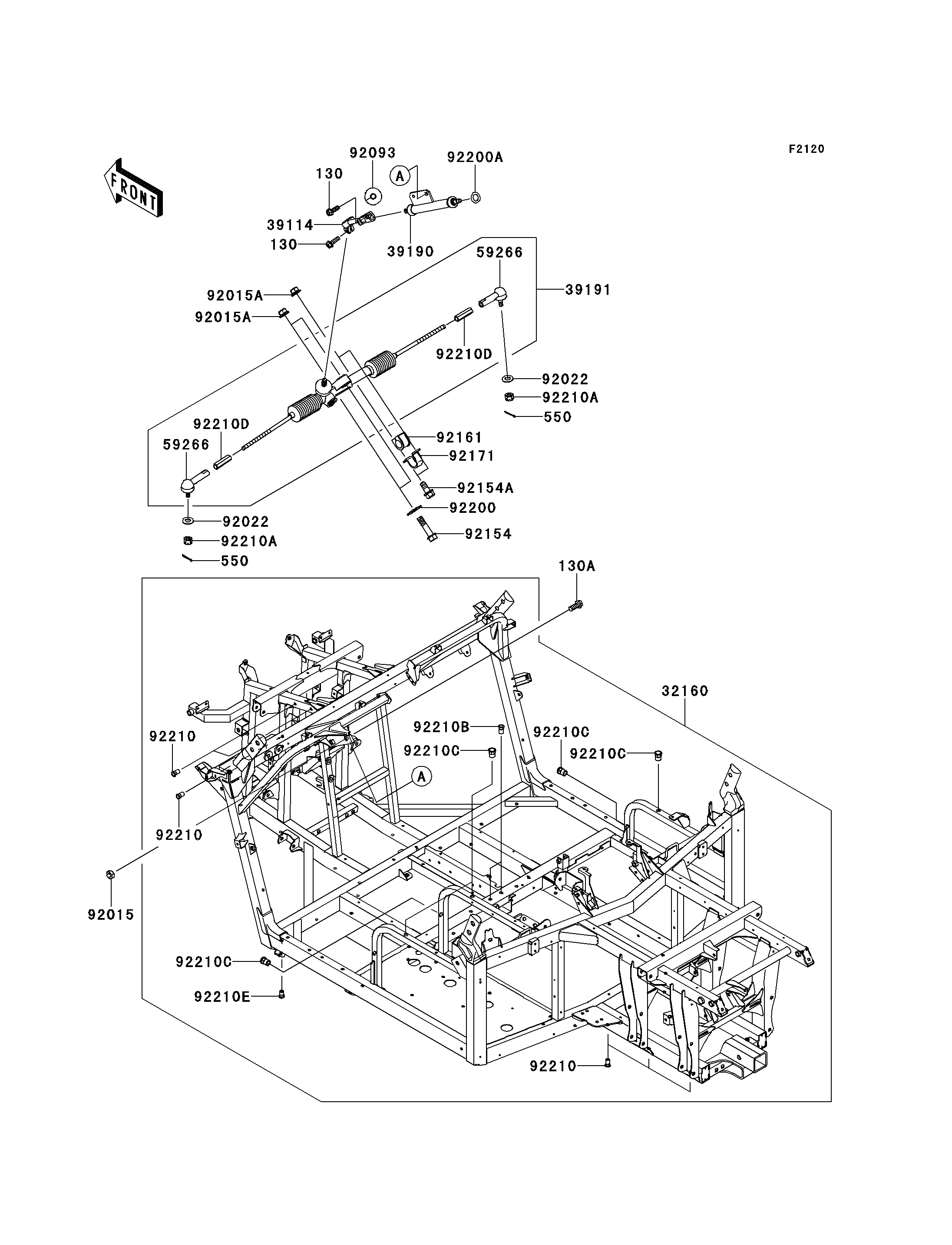

2013 TERYX® 750 FI 4x4 LE - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
550
550
32160
39114
39190
39191
59266
59266
92015
92015A
92015A
92022
92022
92093
92154
92154A
92161
92171
92200
92200A
92210
92210
92210
92210A
92210A
92210B
92210C
92210C
92210C
92210C
92210D
92210D
92210E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130BA0825 2
BOLT-FLANGED,10X25 130A 130BA1025 2
PIN-COTTER,3.0X25 550 550AA3025 2
FRAME-COMP 32160 32160-0604 1
SHAFT-COMP-STRG 39114 39114-0011 1
SHAFT-ASSY-STEERING 39190 39190-0004 1
GEAR-ASSY-STEERING 39191 39191-0303 1
JOINT-BALL 59266 59266-0038 2
NUT,LOCK,10MM,BLACK 92015 92015-1189 1
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 4
WASHER 92022 92022-1831 2
SEAL,STEERING SHAFT 92093 92093-0070 1
BOLT,FLANGED,12X60 92154 92154-0072 2
BOLT,FLANGED,12X27 92154A 92154-0073 2
DAMPER,STEERING GEAR 92161 92161-0506 1
CLAMP,STEERING GEAR 92171 92171-1866 1
WASHER,12.3X38X2.0 92200 92200-0379 2
WASHER,15X25X1.6 92200A 92200-0460 1
NUT,POP,6MM,L=16.5 92210 92210-0324 10
NUT,CASTLE,12MM 92210A 92210-0395 2
NUT,FLANGED,8MM 92210B 92210-0527 2
NUT,10MM 92210C 92210-0573 6
NUT,14MM 92210D 92210-0588 2
NUT,POP,6MM,L=15 92210E 92210-1397 44
