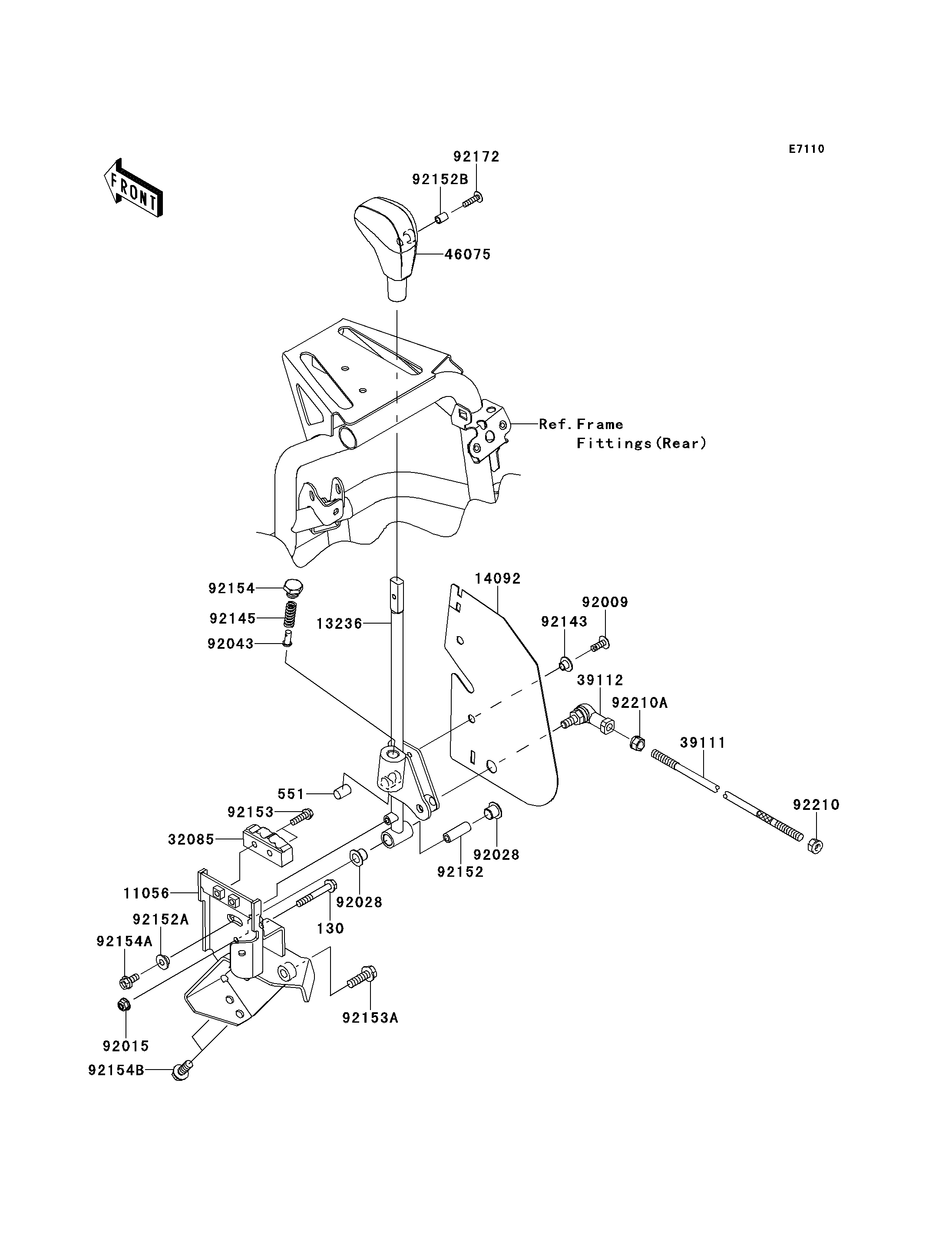

2013 TERYX® 750 FI 4x4 LE - Control

DOWNLOAD PDF
SELECT A NEW PART
130
551
11056
13236
14092
32085
39111
39112
46075
92009
92015
92028
92028
92043
92143
92145
92152
92152A
92152B
92153
92153A
92154
92154A
92154B
92172
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X45 130 130CA0645 1
PIN-DOWEL,10X16 551 551R1016 1
BRACKET,SHIFT 11056 11056-2058 1
LEVER-COMP 13236 13236-0728 1
COVER,CONTROL LEVER 14092 14092-1045 1
STOPPER 32085 32085-0731 1
ROD-TIE 39111 39111-0040 1
RODEND-TIE 39112 39112-0014 1
GRIP 46075 46075-0569 1
SCREW,TAPPING,6X16 92009 92009-1166 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
BUSHING 92028 92028-1507 2
PIN,6X11 92043 92043-092 1
COLLAR 92143 92143-1057 1
SPRING 92145 92145-0940 1
COLLAR,6.2X10X30 92152 92152-1518 1
COLLAR,6.15X10.15X6 92152A 92152-1535 1
COLLAR,5.6X8X10.5 92152B 92152-1545 1
BOLT,FLANGED-SMALL,6X20 92153 92153-1114 2
BOLT,FLANGED,8X25 92153A 92153-1768 1
BOLT,12X10 92154 92154-0197 1
BOLT,FLANGED,6X14 92154A 92154-0482 1
BOLT,FLANGED,8X20 92154B 92154-0885 2
SCREW,5X20 92172 92172-2081 1
NUT,8MM 92210 92210-1242 1
NUT,LH,THREAD 8MM 92210A 92210-1284 1
