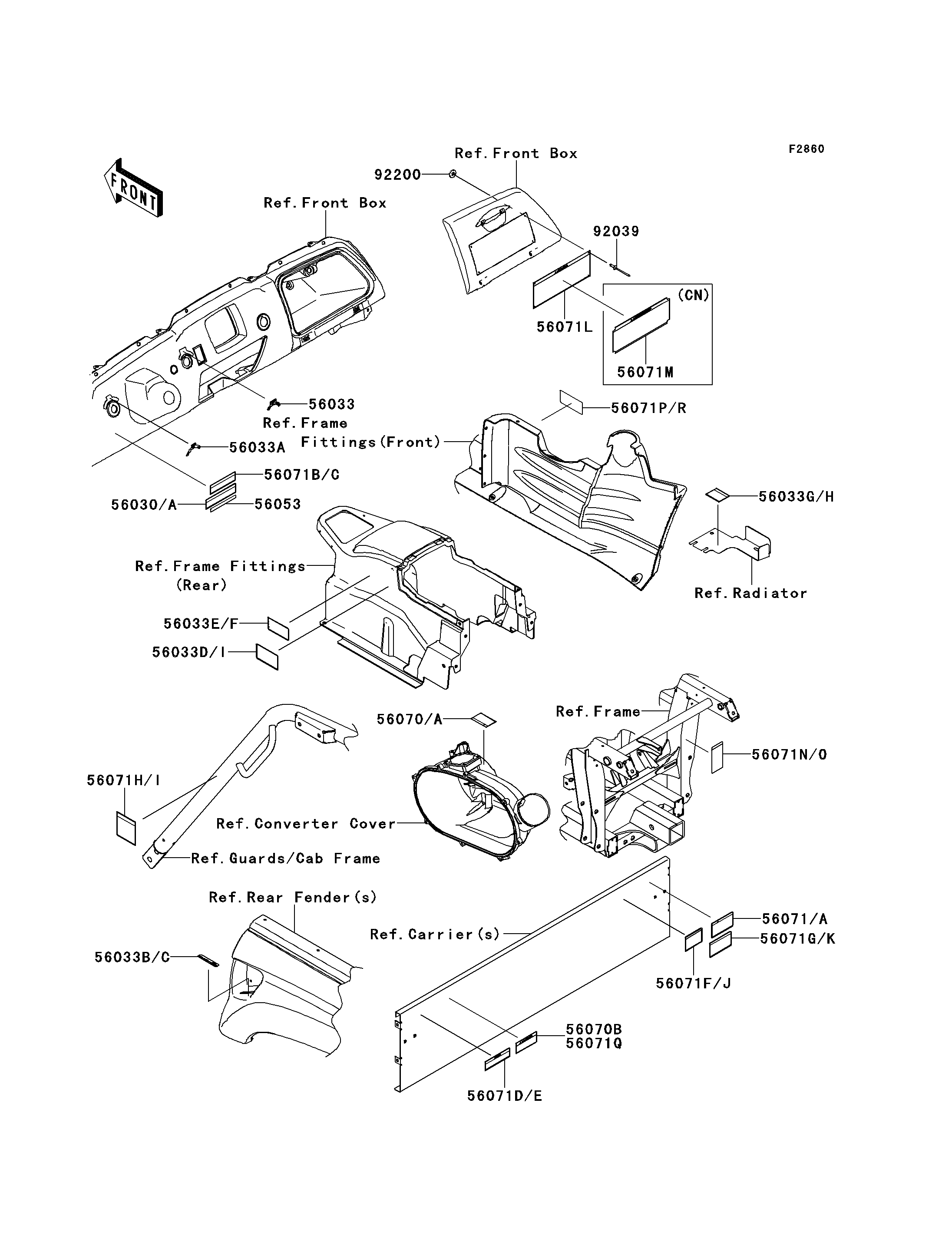

2013 TERYX® 750 FI 4x4 LE - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033E
56033E
56033G
56033G
56033I
56033I
56053
56053
56070
56070
56070B
56070B
56071
56071
56071B
56071B
56071D
56071D
56071F
56071F
56071G
56071G
56071H
56071H
56071L
56071L
56071N
56071N
56071P
56071P
92039
92039
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,PARKING LEVER 56030 56030-0213 1
LABEL-MANUAL,MAIN SWITCH 56033 56033-0190 1
LABEL-MANUAL,HEAD LAMP SWITCH 56033A 56033-0228 1
LABEL-MANUAL,CARRIER LEVER,LH 56033B 56033-0290 1
LABEL-MANUAL,CARRIER LEVER,RH 56033C 56033-0291 1
LABEL-MANUAL,AIR CLEANER 56033E 56033-0347 1
LABEL-MANUAL,OIL MAINTENANCE 56033G 56033-0372 1
LABEL-MANUAL,DRIVE BELT 56033I 56033-0739 1
LABEL-SPECIFICATION 56053 56053-0278 1
LABEL-WARNING,CVT COVER 56070 56070-1269 1
LABEL-WARNING,BED RAISED 56070B 56070-7515 1
LABEL-WARNING 56071 56071-0048 1
LABEL-WARNING,SHIFT CAUTION 56071B 56071-0128 1
LABEL-WARNING,CARGO BED NOTICE 56071D 56071-0146 1
LABEL-WARNING,CARGO BED 56071F 56071-0271 1
LABEL-WARNING,CARGO BED CAPA. 56071G 56071-0272 1
LABEL-WARNING,TIRE 56071H 56071-0275 1
LABEL-WARNING,GENERAL 56071L 56071-0315 1
LABEL-WARNING,TRAILER HITCH 56071N 56071-0333 1
LABEL-WARNING,GASOLINE 56071P 56071-7501 1
RIVET,3.2X8 92039 92039-3763 4
WASHER,3.5X8X1 92200 92200-1251 4
LABEL,PARKING BRAKE,FRENCH 56030A 56030-0330 1 CN
LABEL-MANUAL,CVT,FRENCH 56033D 56033-0305 1 CN
LABEL-MANUAL,AIR CLEANER 56033F 56033-0348 1 CN
LABEL-MANUAL,OIL MAINTENANCE 56033H 56033-0373 1 CN
LABEL-WARNING,CVT COVER(FRENCH) 56070A 56070-1271 1 CN
LABEL-WARNING,CARGO NET(FRENCH) 56071A 56071-0112 1 CN
LABEL-WARNING,SHIFT CAUTION 56071C 56071-0129 1 CN
LABEL-WARNING,CARGO BED NOTICE 56071E 56071-0147 1 CN
LABEL-WARNING,TIRE 56071I 56071-0284 1 CN
LABEL-WARNING,CARGO BED 56071J 56071-0287 1 CN
LABEL-WARNING,CARGO BED CAPA. 56071K 56071-0288 1 CN
LABEL-WARNING,GENERAL 56071M 56071-0328 1 CN
LABEL-WARNING,TRAILER HITCH 56071O 56071-0334 1 CN
LABEL,BED RAISED(FRENCH) 56071Q 56071-7504 1 CN
LABEL,GASOLINE(FRENCH) 56071R 56071-7505 1 CN
