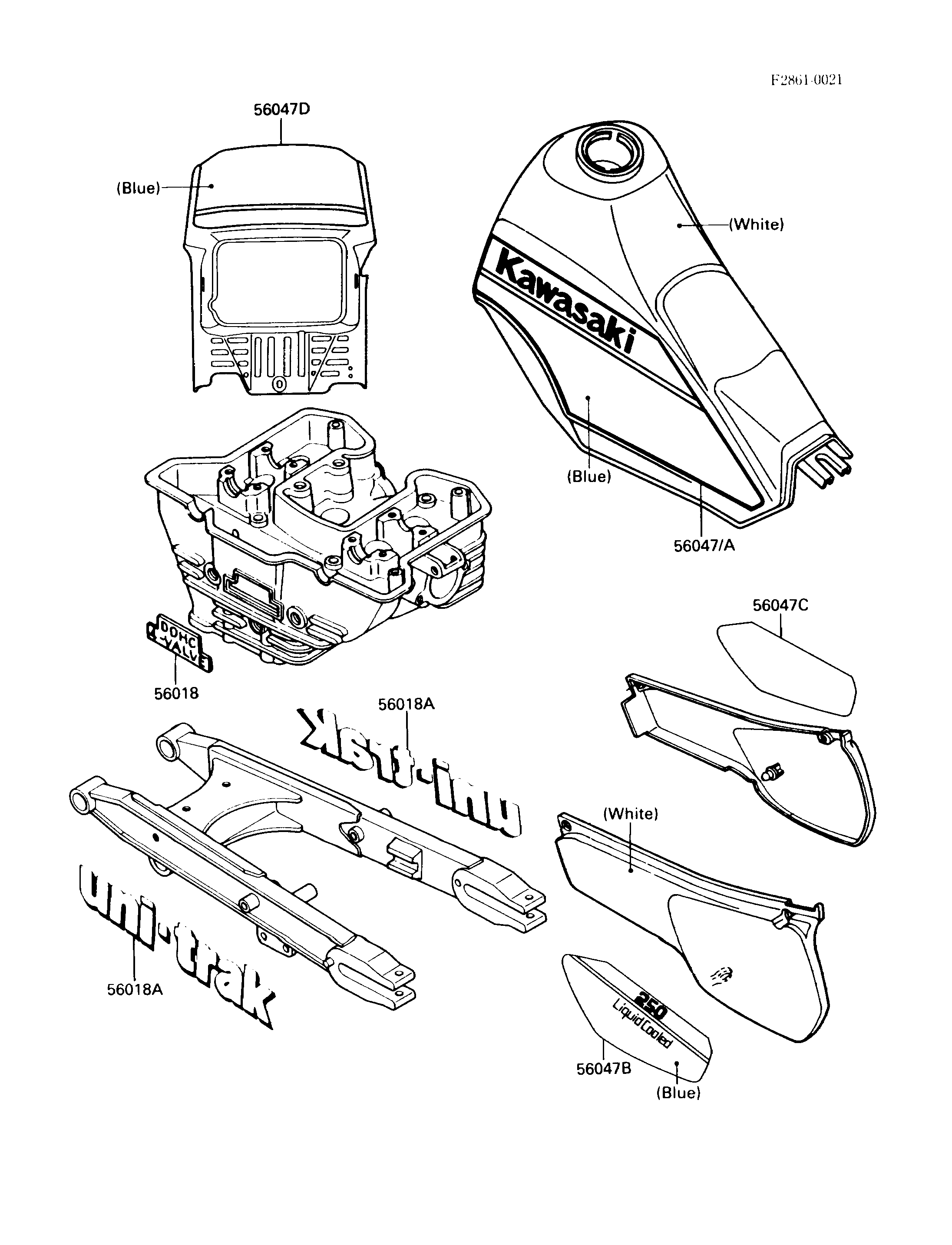

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| MARK,SWING ARM,UNI-TRAK | 56018A | 56018-1902 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047 | 56047-1834 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1835 | 1 | ||
| PATTERN,SIDE COVER,LH,FOR WHIT | 56047B | 56047-1836 | 1 | ||
| PATTERN,SIDE COVER,RH,FOR WHIT | 56047C | 56047-1837 | 1 | ||
| PATTERN,HEAD LAMP COVER | 56047D | 56047-1838 | 1 |
