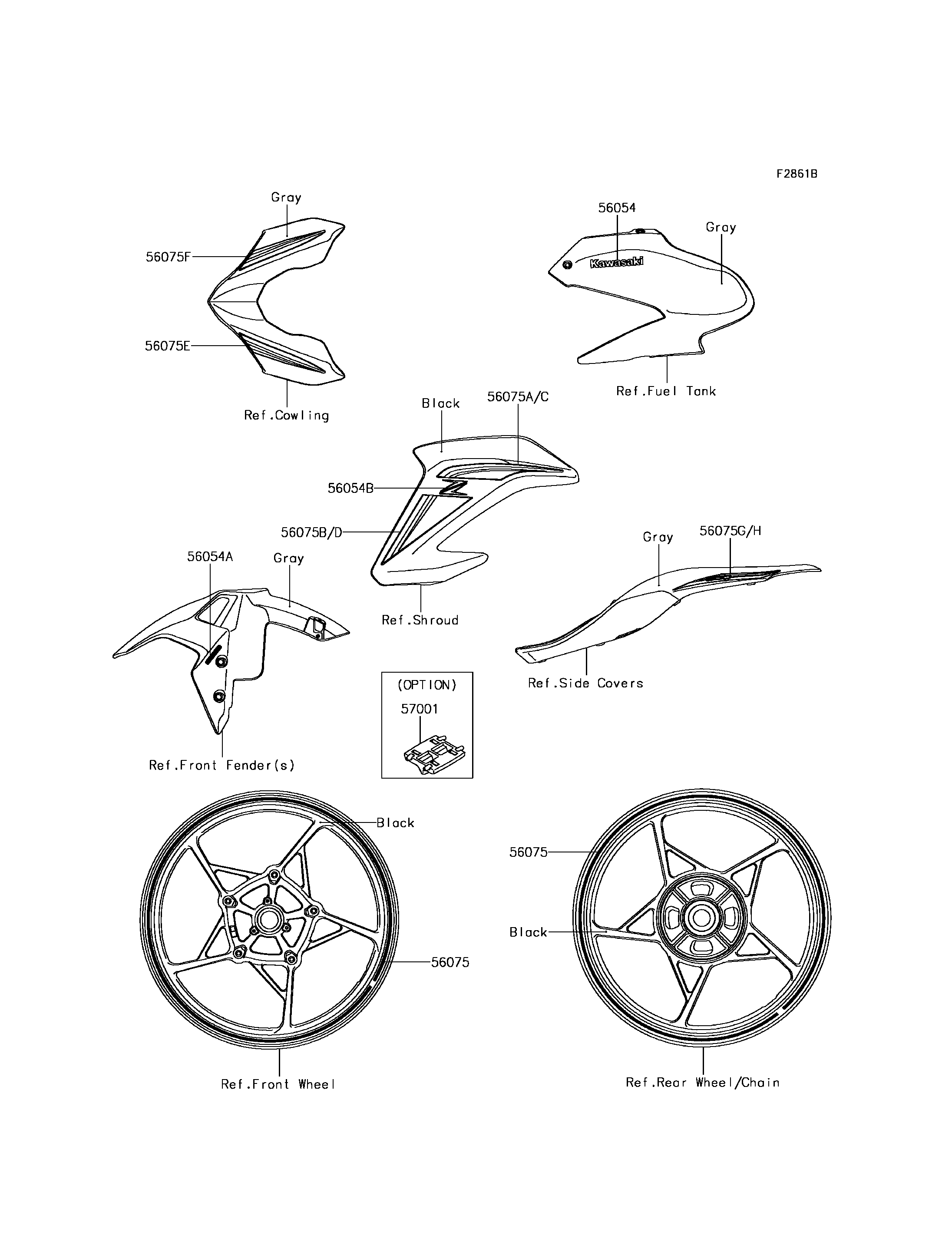

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| MARK,FR FENDER,ABS | 56054A | 56054-1413 | 2 | ||
| MARK,SHROUD,Z,3D | 56054B | 56054-2205 | 2 | ||
| PATTERN,WHEEL,GRN,4X1353 | 56075 | 56075-2279 | 4 | ||
| PATTERN,SHROUD,LH,UPP | 56075A | 56075-2584 | 1 | ||
| PATTERN,SHROUD,LH,LWR | 56075B | 56075-2585 | 1 | ||
| PATTERN,SHROUD,RH,UPP | 56075C | 56075-2586 | 1 | ||
| PATTERN,SHROUD,RH,LWR | 56075D | 56075-2587 | 1 | ||
| PATTERN,UPP COWL.,LH | 56075E | 56075-2588 | 1 | ||
| PATTERN,UPP COWL.,RH | 56075F | 56075-2589 | 1 | ||
| PATTERN,TAIL COVER,LH | 56075G | 56075-2590 | 1 | ||
| PATTERN,TAIL COVER,RH | 56075H | 56075-2591 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
