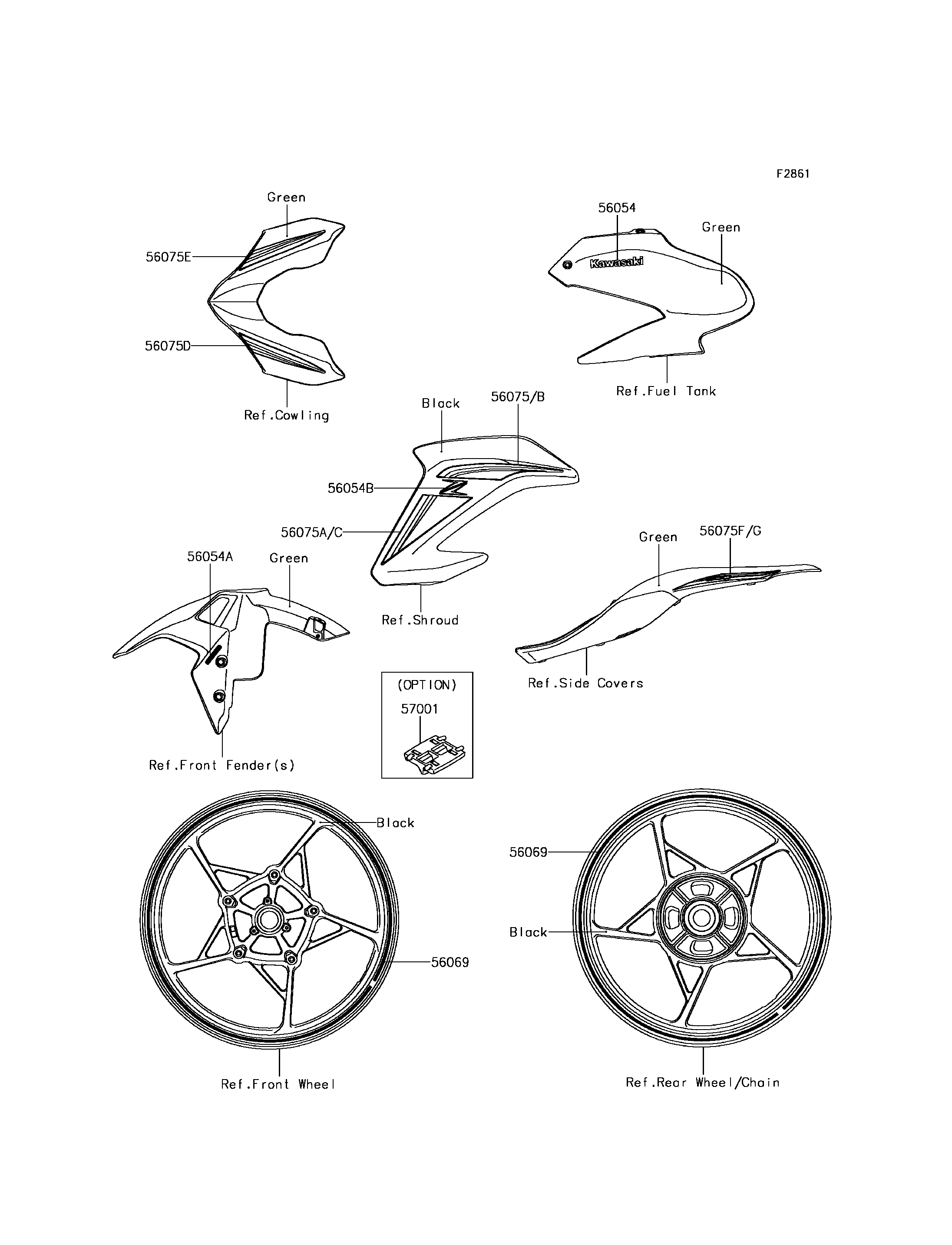

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | CN | |
| MARK,FR FENDER,ABS | 56054A | 56054-1412 | 2 | CN | |
| MARK,SHROUD,Z,3D | 56054B | 56054-2205 | 2 | CN | |
| PATTERN,WHEEL,GREEN,4X1353 | 56069 | 56069-7822 | 4 | CN | |
| PATTERN,SHROUD,LH,UPP | 56075 | 56075-2592 | 1 | CN | |
| PATTERN,SHROUD,LH,LWR | 56075A | 56075-2593 | 1 | CN | |
| PATTERN,SHROUD,RH,UPP | 56075B | 56075-2594 | 1 | CN | |
| PATTERN,SHROUD,RH,LWR | 56075C | 56075-2595 | 1 | CN | |
| PATTERN,UPP COWL.,LH | 56075D | 56075-2596 | 1 | CN | |
| PATTERN,UPP COWL.,RH | 56075E | 56075-2597 | 1 | CN | |
| PATTERN,TAIL COVER,LH | 56075F | 56075-2598 | 1 | CN | |
| PATTERN,TAIL COVER,RH | 56075G | 56075-2599 | 1 | CN | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CN | (OPTION) |
