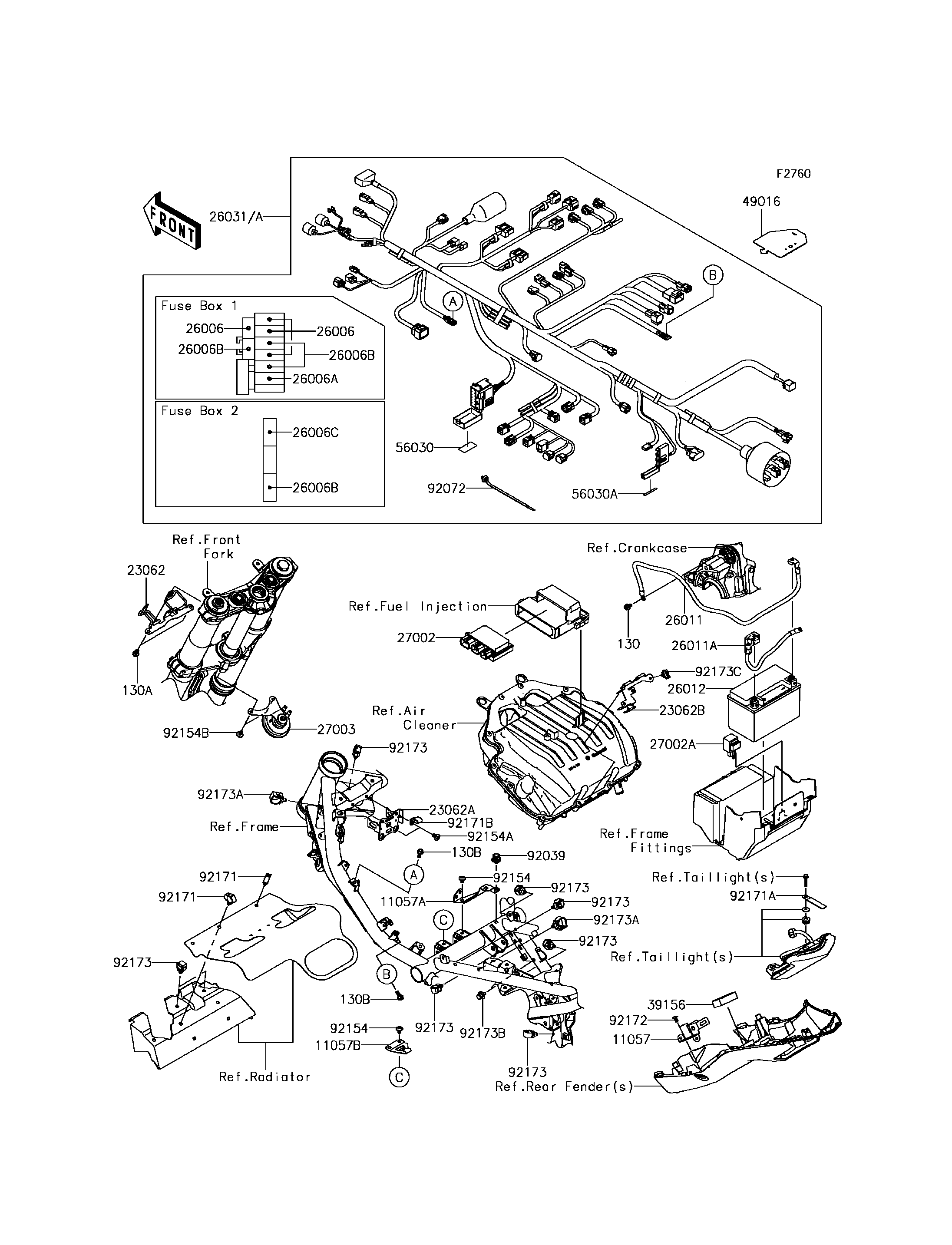

2017 Z900 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
11057
11057A
11057B
23062
23062A
23062B
26006
26006
26006A
26006B
26006B
26006B
26006C
26011
26011A
26012
27002
27002A
27003
39156
49016
56030
56030A
92039
92072
92154
92154
92154A
92154B
92171
92171
92171A
92171B
92172
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173B
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 2
BOLT-FLANGED,6X16 130B 130BA0616 2
BRACKET,RELAY 11057 11057-0316 1
BRACKET,MAIN HARNESS 11057A 11057-0317 1
BRACKET,CONNECTOR 11057B 11057-0563 1
BRACKET-COMP,UPP HOLDER 23062 23062-0893 1
BRACKET-COMP,V.D. SENSOR 23062A 23062-0894 1
BRACKET-COMP,A/C BOX 23062B 23062-0930 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,2A,GRAY 26006A 26006-0052 1
FUSE,MINI BLADE,7.5A,BROWN 26006B 26006-0055 4
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,BATTERY(-) 26011 26011-0947 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0953 1
BATTERY,FTX9-BS,12V 8AH 26012 26012-0608 1
RELAY-ASSY,BOX 27002 27002-0025 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0121 1
PAD,32X52X15 39156 39156-2146 1
COVER-SEAL 49016 49016-0645 1
LABEL,FUSE BOX1 56030 56030-0992 1
LABEL,FUSE BOX2 56030A 56030-0994 1
RIVET,HOLE 8MM 92039 92039-0014 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 18
BOLT,SOCKET,6X10 92154 92154-0774 2
BOLT,SOCKET,6X12 92154A 92154-2355 2
BOLT,SOCKET,6X10 92154B 92154-2667 2
CLAMP,BRAKE HOSE 92171 92171-0316 2
CLAMP,L=60 92171A 92171-0652 1
CLAMP 92171B 92171-0926 1
SCREW,5X10 92172 92172-0864 2
CLAMP,12MM DIA. 92173 92173-0736 8
CLAMP 92173A 92173-0861 2
CLAMP,CABLE CLIP 92173B 92173-1022 1
CLAMP,CLIP,TAIL LAMP,ETC 92173C 92173-1429 1
HARNESS,MAIN 26031 26031-2292 1 CN
HARNESS,MAIN 26031A 26031-2293 1 CA
