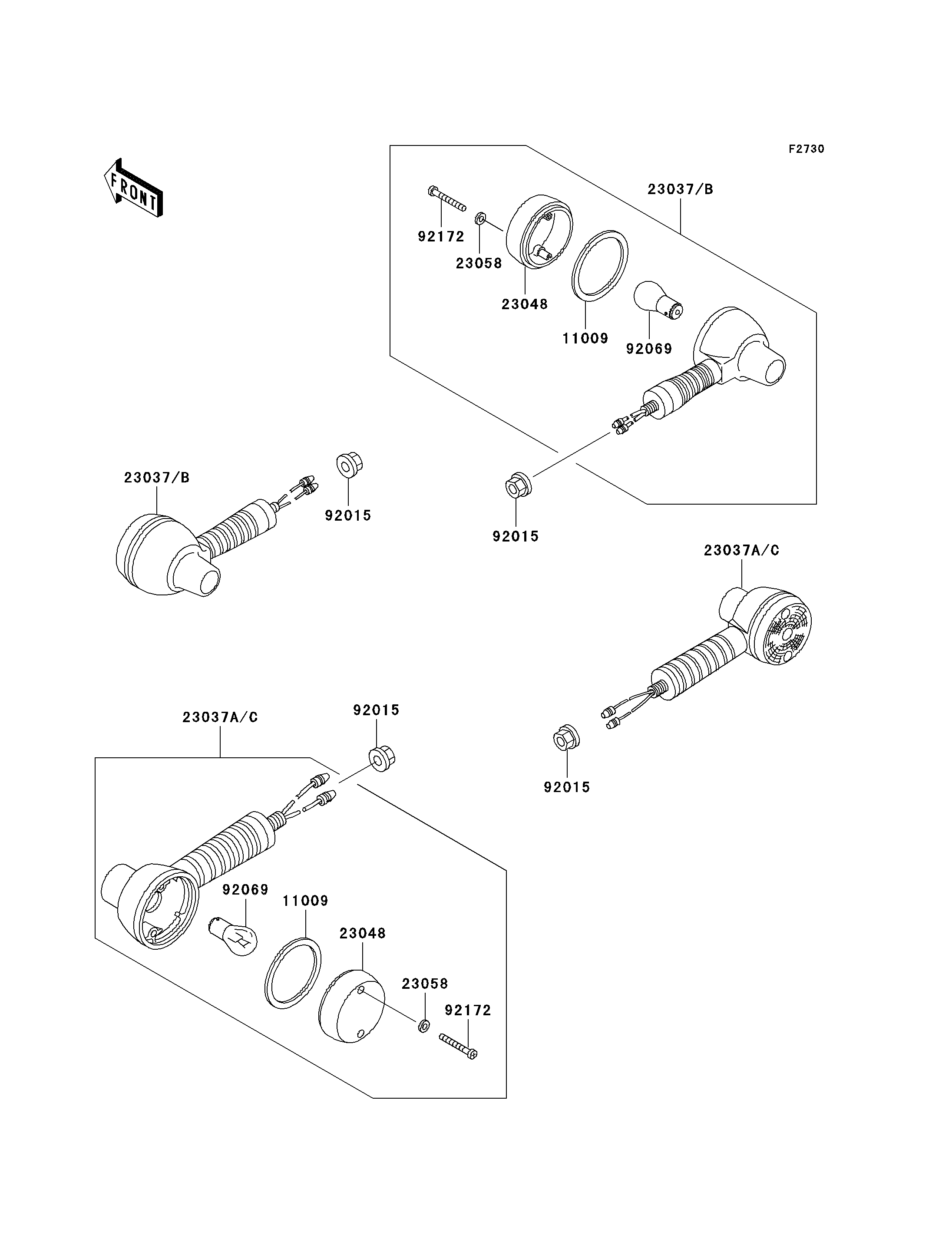

Parts Diagrams |
11009
11009
23037B
23037B
23037C
23037C
23048
23048
23058
23058
92015
92015
92015
92015
92069
92069
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TURN SIGNAL LAMP LENS | 11009 | 11009-1128 | 4 | ||
| LAMP-ASSY-SIGNAL,FR | 23037B | 23037-1201 | 2 | ||
| LAMP-ASSY-SIGNAL | 23037C | 23037-1213 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1076 | 4 | ||
| WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1428 | 4 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 4 | ||
| SCREW,TAPPING,4X30 | 92172 | 92172-0124 | 8 |
| GASKET,TURN SIGNAL LAMP LENS | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,FR | |
| REF # | 23037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL | |
| REF # | 23037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP | |
| REF # | 23048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,4MM | |
| REF # | 23058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32CP(23W) | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X30 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
