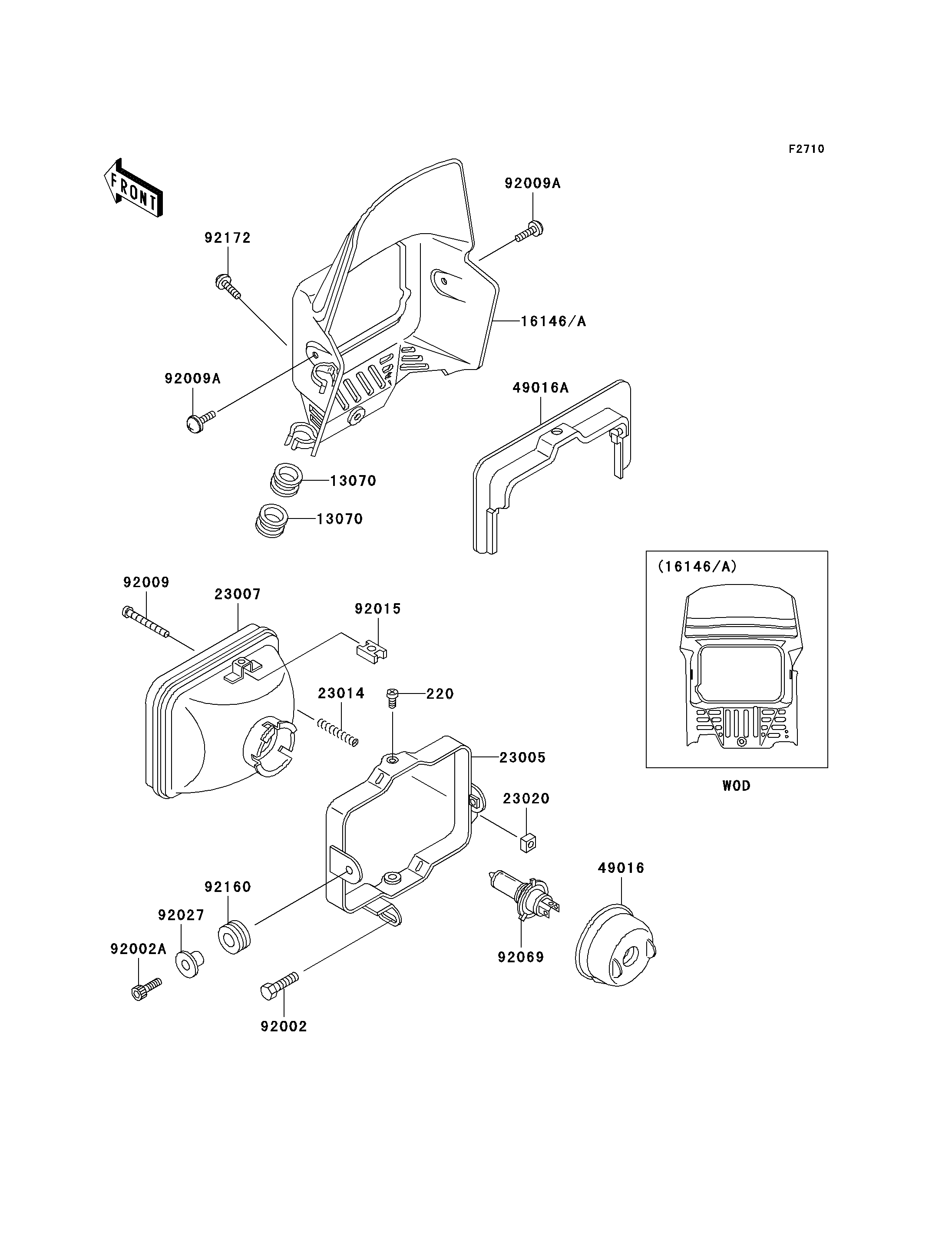

2004 KLR250 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
220
13070
13070
16146
23005
23007
23014
23020
49016
49016A
92002
92002A
92009
92009A
92009A
92015
92027
92069
92160
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X8 220 220B0508 2
GUIDE,BRAKE HOSE 13070 13070-1107 2
COVER-ASSY,HEAD LAMP,A.RED 16146 16146-1053-260 1
BODY-COMP-HEAD LAMP 23005 23005-1052 1
LENS-COMP,HEAD LAMP 23007 23007-1364 1
SPRING,FOCUS ADJUSTING 23014 23014-005 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
COVER-SEAL,SOCKET 49016 49016-1037 1
COVER-SEAL,HEAD LAMP 49016A 49016-1101 1
BOLT,6X16 92002 92002-1124 1
BOLT 92002A 92002-1319 2
SCREW,4X48 92009 92009-1065 1
SCREW,6X8 92009A 92009-1294 2
NUT,5MM 92015 92015-1354 2
COLLAR,L=14 92027 92027-1134 2
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92160 92160-1007 2
SCREW,6X14 92172 92172-0107 1
