Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
36001B
36001B
186
186
186
186
39040
39040
92009
92009
92009
92009
92037
92037
92071
92071
92075
92075

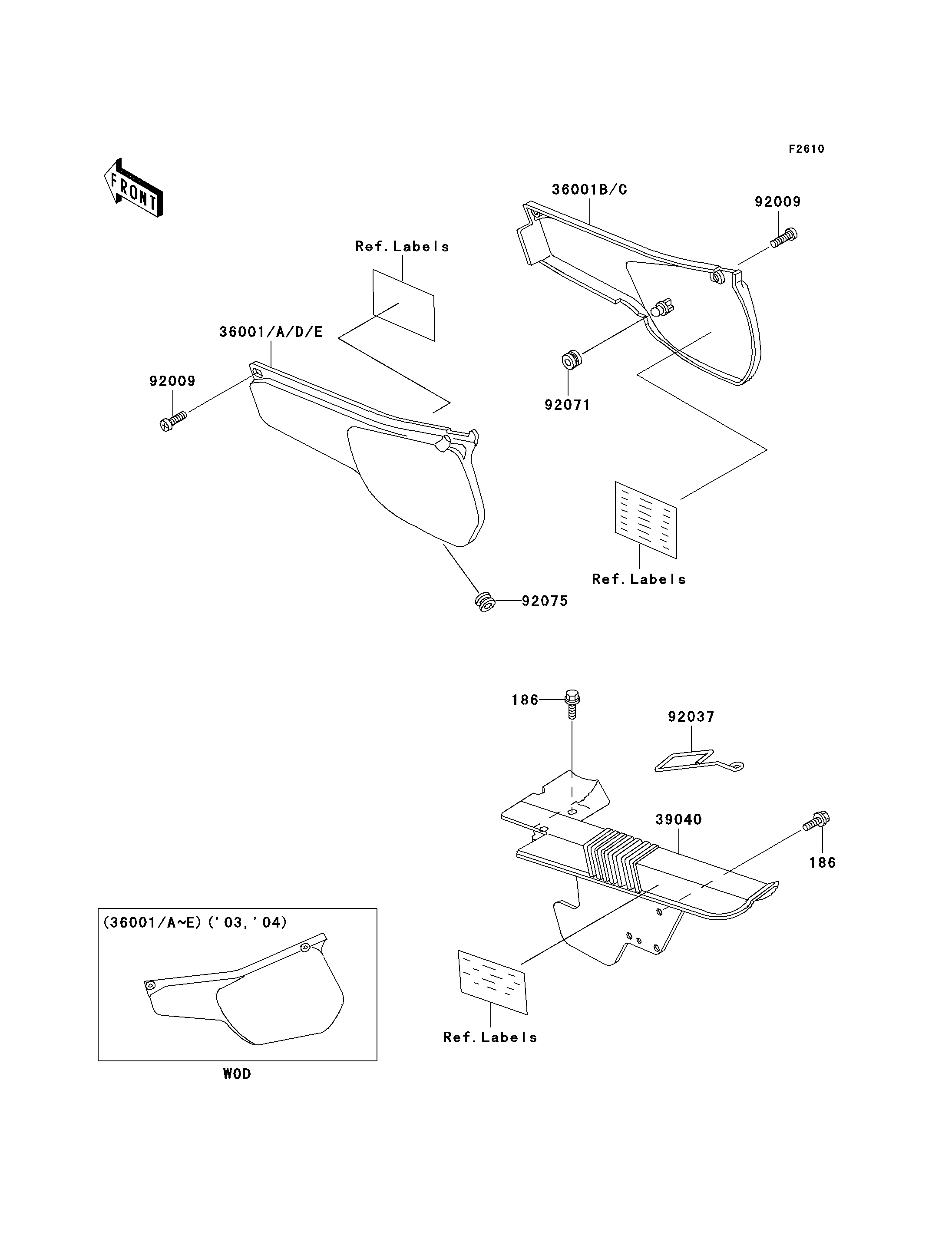

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,RH,A.RED | 36001B | 36001-1273-260 | 1 | ||
| BOLT-UPSET-WP | 186 | 186C0618 | 3 | ||
| COVER-ASSY-CHAIN CASE | 39040 | 39040-1051 | 1 | ||
| SCREW,6X10,WHITE | 92009 | 92009-1286 | 4 | ||
| CLAMP,HOSE | 92037 | 92037-1620 | 1 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 1 | ||
| COVER-SIDE,LH,A.RED | 36001 | 36001-1272-260 | 1 | US | |
| COVER-SIDE,LH,A.RED | 36001D | 36001-1297-260 | 1 | CA |
| COVER-SIDE,RH,A.RED | |
| REF # | 36001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY-CHAIN CASE | |
| REF # | 39040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10,WHITE | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,A.RED | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| COVER-SIDE,LH,A.RED | |
| REF # | 36001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
