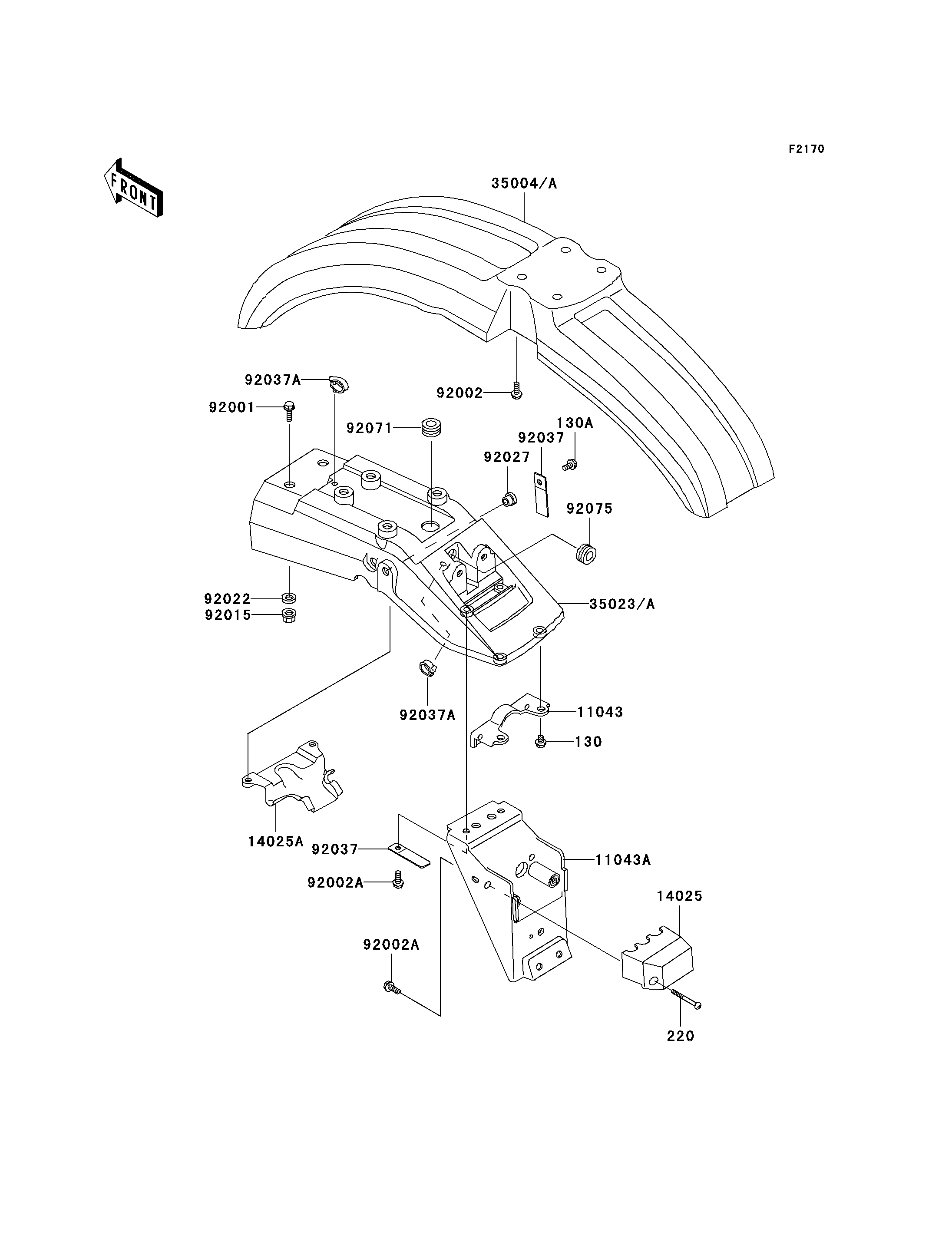

2004 KLR250 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
220
11043
11043A
14025
14025A
35004
35023
92001
92002
92002A
92002A
92015
92022
92027
92037
92037
92037A
92037A
92071
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0608 2
BOLT-FLANGED 130A 130D0612 2
SCREW-PAN-CROS 220 220C0545 2
BRACKET,REAR FLAP 11043 11043-1734 1
BRACKET 11043A 11043-1827 1
COVER,LICENSE PLATE LAMP 14025 14025-1933 1
COVER,HARNESS 14025A 14025-1982 1
FENDER-FRONT,A.RED 35004 35004-1153-260 1
FENDER-REAR,RR,A.RED 35023 35023-1114-260 1
BOLT,6X20 92001 92001-1773 2
BOLT,6X16 92002 92002-1187 4
BOLT,6X16 92002A 92002-1188 4
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,L=4.7 92027 92027-122 2
CLAMP,L=60 92037 92037-1069 2
CLAMP,SPEED,L=58 92037A 92037-1163 2
GROMMET 92071 92071-1027 1
DAMPER 92075 92075-1028 1
