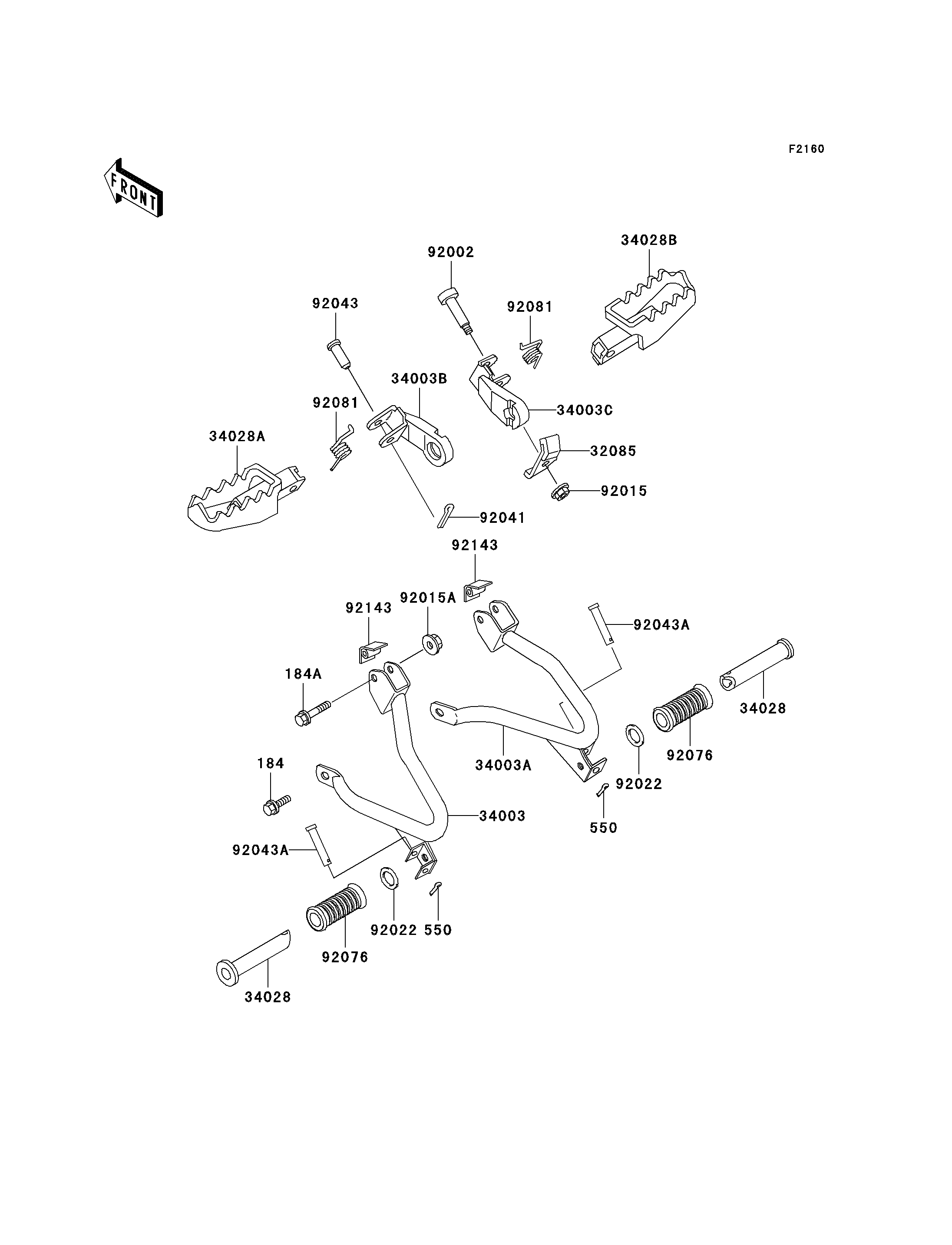

2004 KLR250 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
184
184A
550
550
32085
34003
34003A
34003B
34003C
34028
34028
34028A
34028B
92002
92015
92015A
92022
92022
92041
92043
92043A
92043A
92076
92076
92081
92081
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WP-SMALL 184 184N0818 2
BOLT-UPSET-WP-SMALL 184A 184N0840 2
PIN-COTTER,2.0X15 550 550D2015 2
STOPPER,KICK PEDAL 32085 32085-1178 1
HOLDER-STEP,RR,LH,SILVER NO.25 34003 34003-1396-CE 1
HOLDER-STEP,RR,RH,SILVER NO.25 34003A 34003-1397-CE 1
HOLDER-STEP,FR,LH 34003B 34003-1399 1
HOLDER-STEP,FR,RH 34003C 34003-1400 1
STEP,RR 34028 34028-009 2
STEP,FR,LH 34028A 34028-1378 1
STEP,FR,RH 34028B 34028-1379 1
BOLT,6MM 92002 92002-1193 1
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,FLANGED,8MM 92015A 92015-1406 2
WASHER,20X30X2.3 92022 92022-1568 2
COTTER,2.5X15 92041 92041-1051 1
PIN,8X31 92043 92043-080 1
PIN,6X28 92043A 92043-1464 2
DAMPER 92076 92076-020 2
SPRING,STEP 92081 92081-1133 2
COLLAR,STEP HOLDER 92143 92143-1080 2
