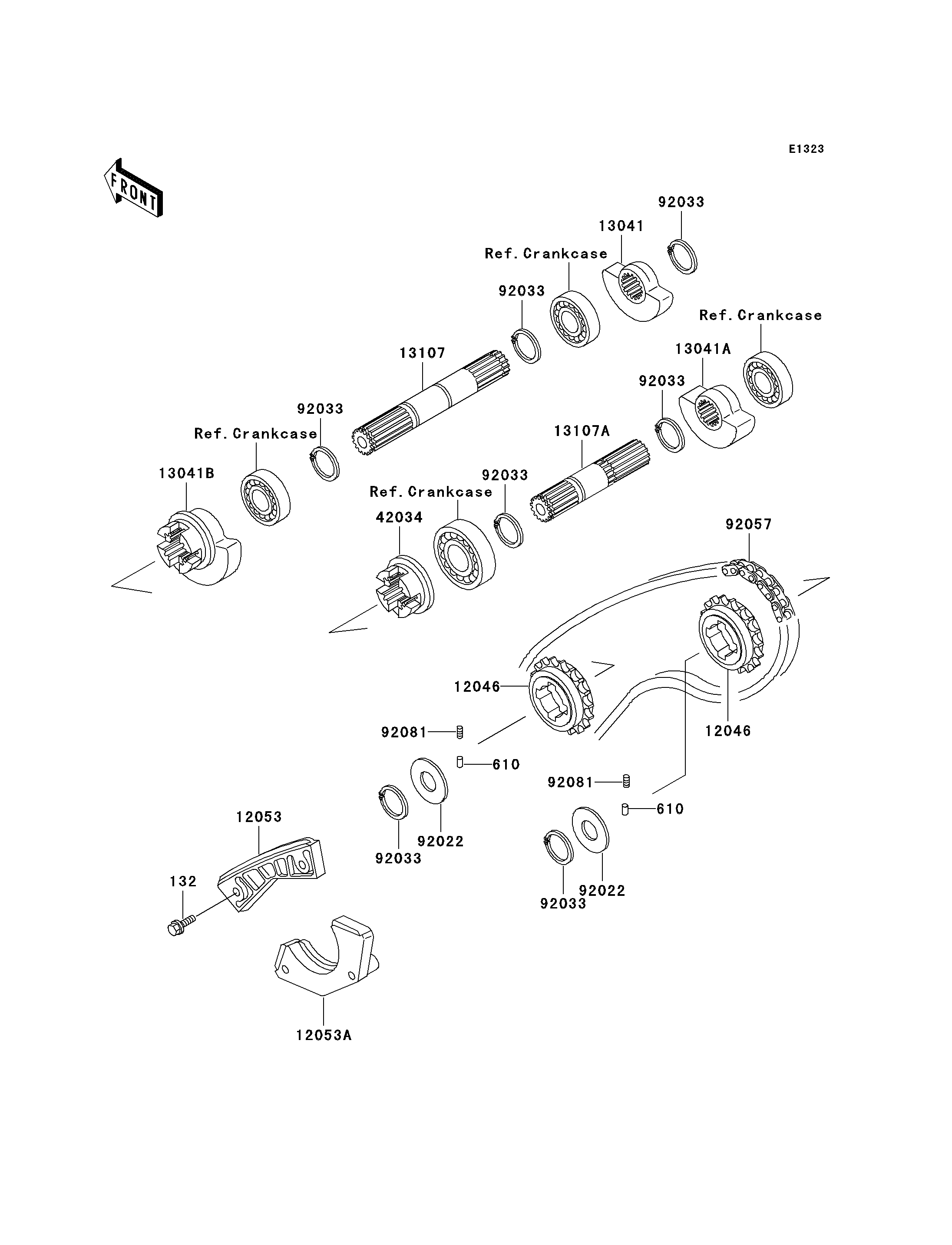

Parts Diagrams |
132
610
610
12046
12046
12053
12053A
13041
13041A
13041B
13107
13107A
42034
92022
92022
92033
92033
92033
92033
92033
92033
92033
92057
92081
92081
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 1 | ||
| ROLLER,4X8 | 610 | 610A0408 | 8 | ||
| SPROCKET,BALANCER,21T | 12046 | 12046-1066 | 2 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-1152 | 1 | ||
| GUIDE-CHAIN,LWR | 12053A | 12053-1153 | 1 | ||
| BALANCER,FR,RH | 13041 | 13041-1057 | 1 | ||
| BALANCER,RR | 13041A | 13041-1058 | 1 | ||
| BALANCER,FR,LH | 13041B | 13041-1063 | 1 | ||
| SHAFT,BALANCER,FR | 13107 | 13107-1121 | 1 | ||
| SHAFT,BALANCER,RR | 13107A | 13107-1122 | 1 | ||
| COUPLING,BALANCER,RR | 42034 | 42034-1063 | 1 | ||
| WASHER,20.3X36X1.5 | 92022 | 92022-1489 | 2 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 7 | ||
| CHAIN,BALANCER,BF05T-U | 92057 | 92057-1211 | 1 | ||
| SPRING,BALANCER | 92081 | 92081-135 | 8 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,BALANCER,21T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,LWR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER,FR,RH | |
| REF # | 13041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER,RR | |
| REF # | 13041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER,FR,LH | |
| REF # | 13041B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,BALANCER,FR | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,BALANCER,RR | |
| REF # | 13107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING,BALANCER,RR | |
| REF # | 42034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X36X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| CHAIN,BALANCER,BF05T-U | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BALANCER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
