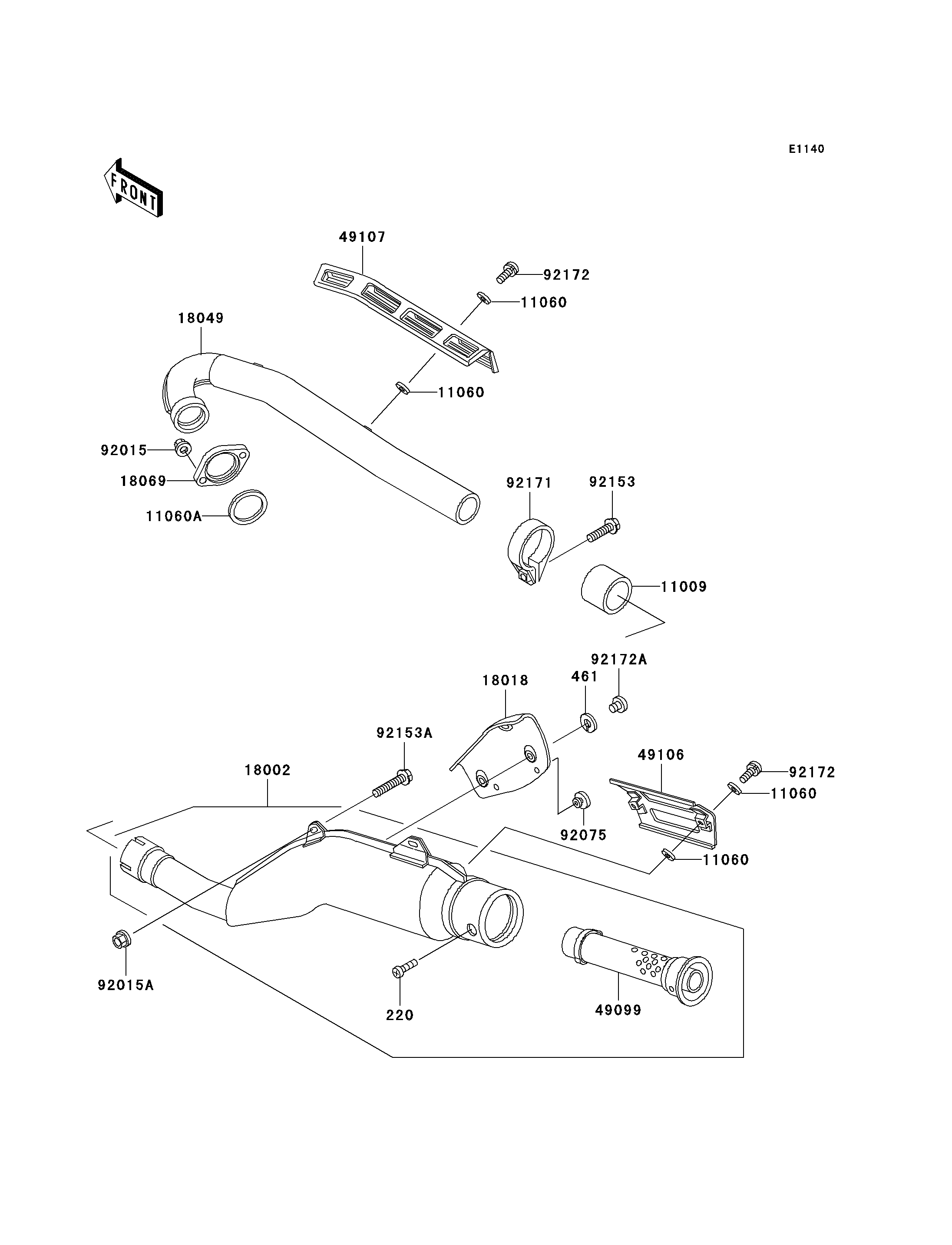

2004 KLR250 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
220
461
11009
11060
11060
11060
11060
11060A
18002
18018
18049
18069
49099
49106
49107
92015
92015A
92075
92153
92153A
92171
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X10 220 220B0610 1
WASHER-SPRING,6MM 461 461S0600 3
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,6.2X11.5X1.5 11060 11060-1109 8
GASKET,EXHAUST PIPE 11060A 11060-1126 1
BODY-COMP-MUFFLER 18002 18002-1740 1
PLATE-HEAT GUARD 18018 18018-1055 1
PIPE-EXHAUST 18049 18049-1461 1
HOLDER-EXHAUST PIPE 18069 18069-1058 1
BAFFLE-PIPE MUFFLER 49099 49099-1219 1
COVER-MUFFLER 49106 49106-1052 1
COVER-EXHAUST PIPE 49107 49107-1057 1
NUT 92015 92015-1331 2
NUT,8MM 92015A 92015-1402 2
DAMPER 92075 92075-005 2
BOLT,8X30 92153 92153-0504 1
BOLT,8X40 92153A 92153-0505 2
CLAMP 92171 92171-0172 1
SCREW,6X10 92172 92172-0097 4
SCREW,6X6.7 92172A 92172-0104 3
