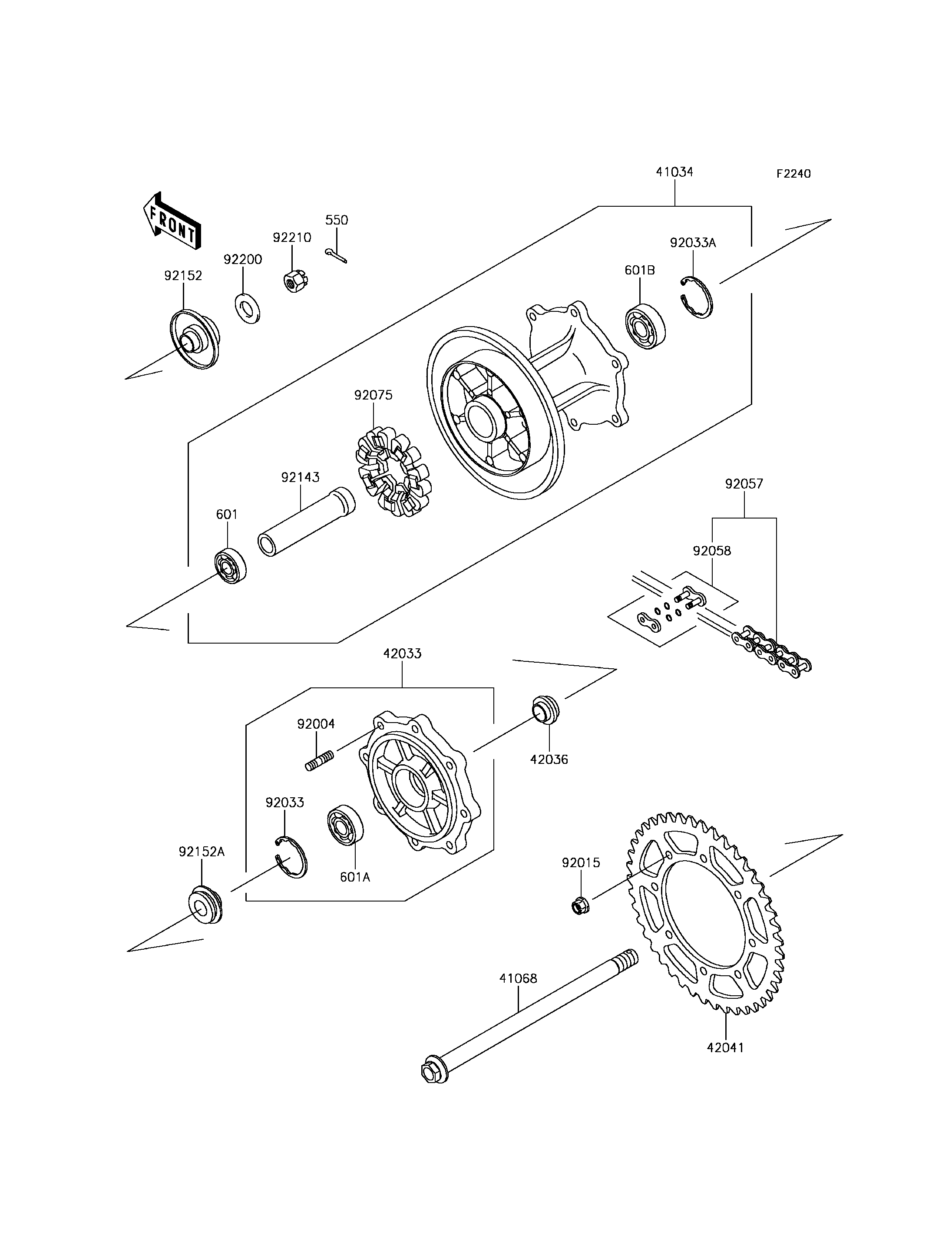

2017 KLR650 Camo - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
550
601
601A
601B
41034
41068
42033
42036
42041
92004
92015
92033
92033A
92057
92058
92075
92143
92152
92152A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,#6003G 601 601B6003G 1
BEARING-BALL,#6004UG 601A 601B6004UG 1
BEARING-BALL,#6204UG 601B 601B6204UG 1
DRUM-ASSY,REAR BRAKE,F.BLACK 41034 41034-0041-21 1
AXLE,RR 41068 41068-0056 1
COUPLING-ASSY,REAR HUB 42033 42033-1112 1
SLEEVE 42036 42036-0074 1
SPROCKET-HUB,43T 42041 42041-1260 1
STUD,8X16 92004 92004-1150 8
NUT,8MM 92015 92015-1432 8
RING-SNAP,42MM 92033 92033-1041 1
RING-SNAP,47MM 92033A 92033-1042 1
CHAIN,DRIVE,EK520SR-O2X106L 92057 92057-0019 1
JOINT-CHAIN,DRIVE 92058 92058-1102 1
DAMPER,SHOCK,RR HUB 92075 92075-1068 1
COLLAR,REAR BRAKE DRUM,L=113 92143 92143-1060 1
COLLAR,L=30MM 92152 92152-0851 1
COLLAR,L=17MM 92152A 92152-0852 1
WASHER,17.3X32X3.2 92200 92200-0563 1
NUT,CASTLE,16MM 92210 92210-1171 1
