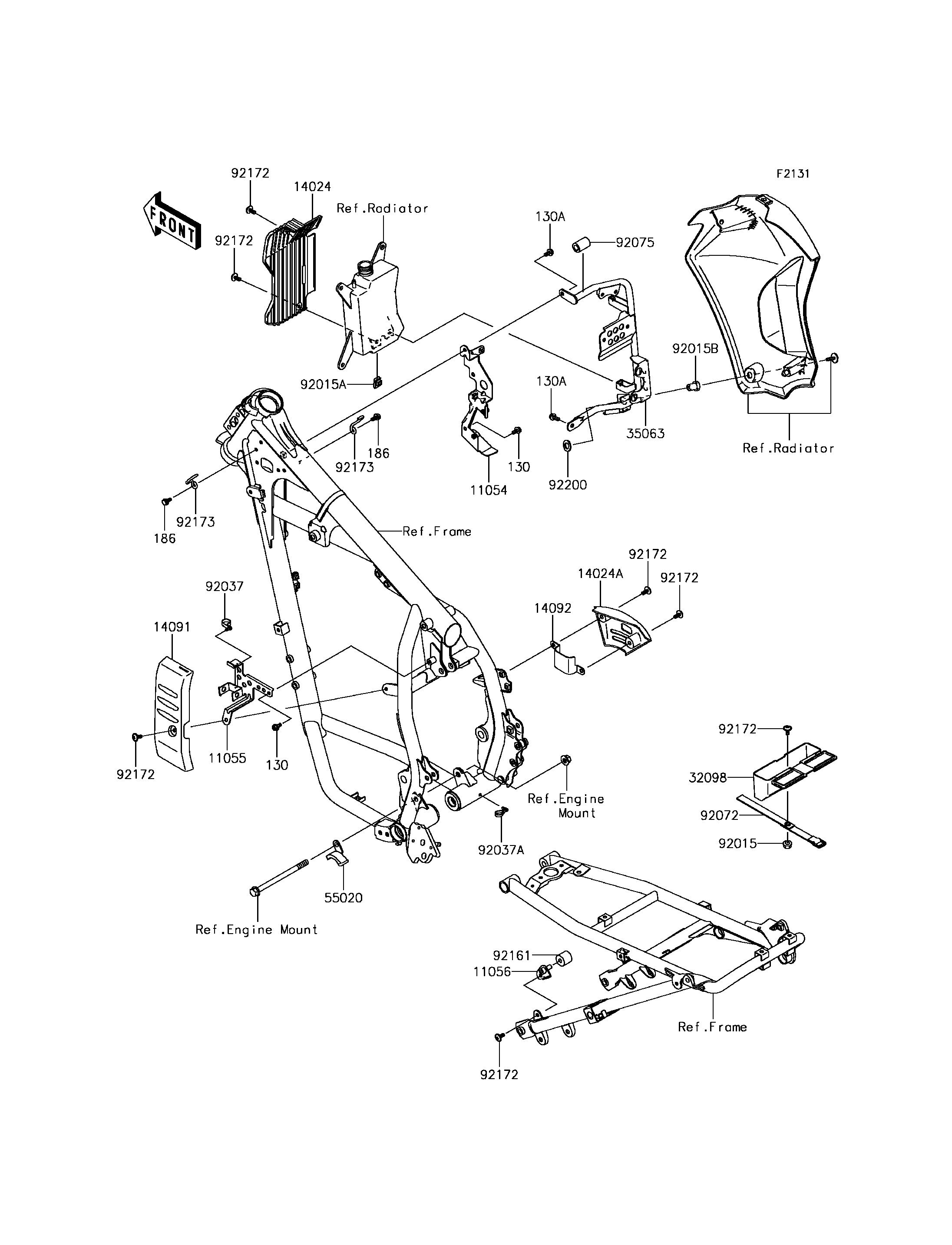

2017 KLR650 Camo - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
186
186
11054
11055
11056
14024
14024A
14091
14092
32098
35063
55020
92015
92015A
92015B
92037
92037A
92072
92075
92161
92172
92172
92172
92172
92172
92172
92172
92173
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED,6X14 130A 130BB0614 2
BOLT-UPSET-WP,6X14 186 186AA0614 2
BRACKET,ELECTRIC 11054 11054-0400 1
BRACKET,STARTER RELAY 11055 11055-0291 1
BRACKET 11056 11056-0137 1
COVER,FRONT RESERVOIR 14024 14024-1372 1
COVER,RESERVOIR TANK 14024A 14024-1470 1
COVER,STARTER RELAY 14091 14091-0591 1
COVER 14092 14092-0134 1
CASE-TOOL,F.BLACK 32098 32098-0014-6Z 1
STAY,HORN&RESERVE 35063 35063-0702 1
GUARD,CHAIN 55020 55020-1266 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,6MM 92015A 92015-1602 1
NUT,RUBBER,6MM 92015B 92015-1692 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,SPEED,L=80.5 92037A 92037-1903 1
BAND,TOOL CASE 92072 92072-1219 1
DAMPER 92075 92075-1941 1
DAMPER 92161 92161-0510 1
SCREW,6X14 92172 92172-0004 7
CLAMP 92173 92173-0211 2
WASHER,13X23X2 92200 92200-0389 1
