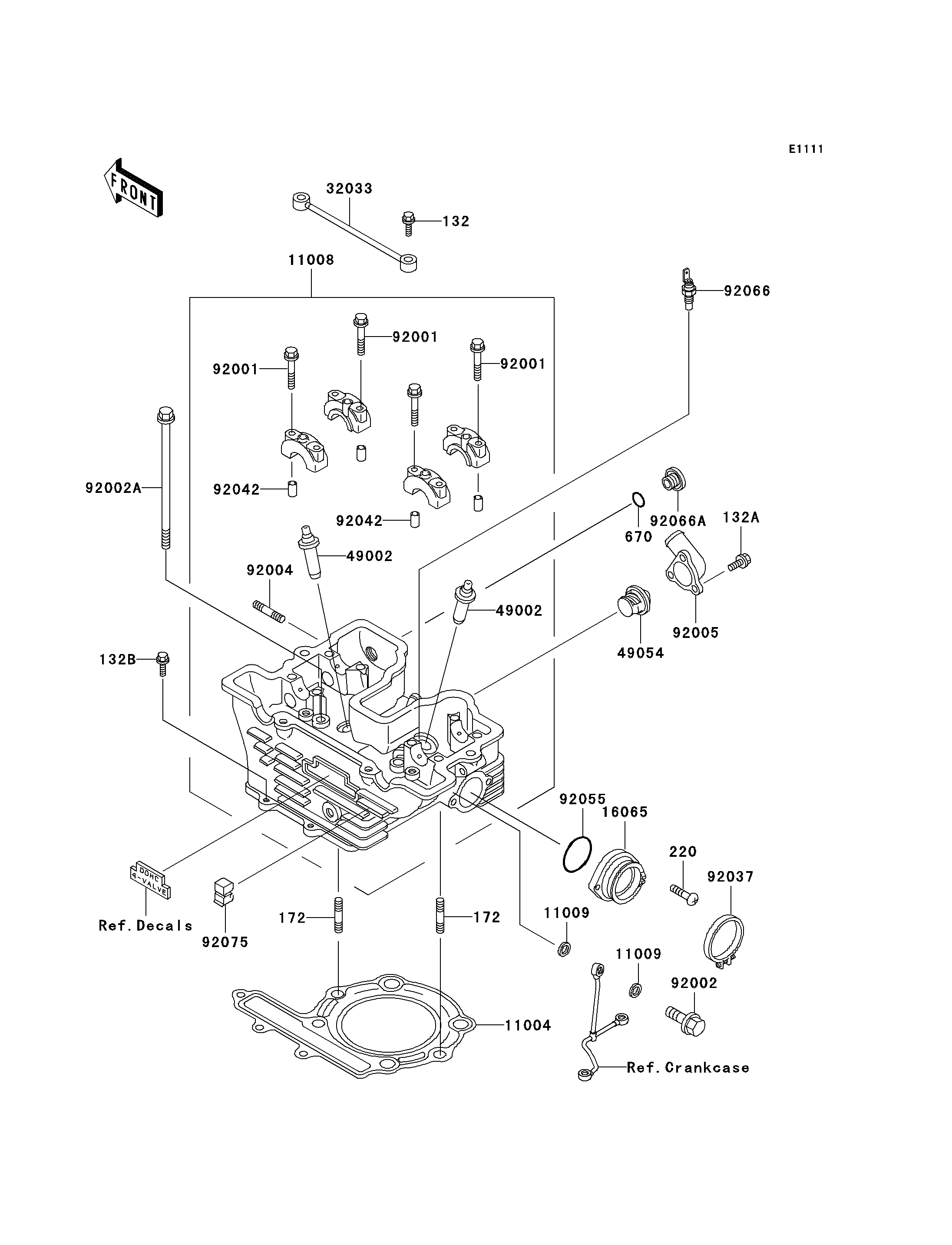

2000 KLR250 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
172
172
220
670
11004
11008
11009
11009
16065
32033
49002
49002
49054
92001
92001
92001
92002
92002A
92004
92005
92037
92042
92042
92055
92066
92066A
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 2
BOLT-FLANGED-SMALL 132A 132J0612 3
BOLT-FLANGED-SMALL 132B 132J0625 2
BOLT-STUD,8X22 172 172G0822 2
SCREW-PAN-CROS,6X16,BLACK 220 220C0616 2
O RING,20MM 670 670B2020 1
GASKET-HEAD 11004 11004-1121 1
HEAD-COMP-CYLINDER 11008 11008-1189 1
GASKET,10X14.5X1.5 11009 11009-1105 2
HOLDER-CARBURETOR 16065 16065-1143 1
PIPE,OIL 32033 32033-1402 1
GUIDE-VALVE 49002 49002-1052 AR
THERMOSTAT 49054 49054-1003 1
BOLT,6X46 92001 92001-1872 8
BOLT,BANJO,10X25 92002 92002-1170 1
BOLT,L=162 92002A 92002-1328 4
STUD,8X25 92004 92004-1214 2
FITTING 92005 92005-1121 1
CLAMP,ID=53,BLACK 92037 92037-1304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 8
RING-O 92055 92055-1255 1
PLUG,SENSOR,WATER 92066 92066-1118 1
PLUG,ROCKER SHAFT 92066A 92066-1188 1
DAMPER 92075 92075-1710 1
