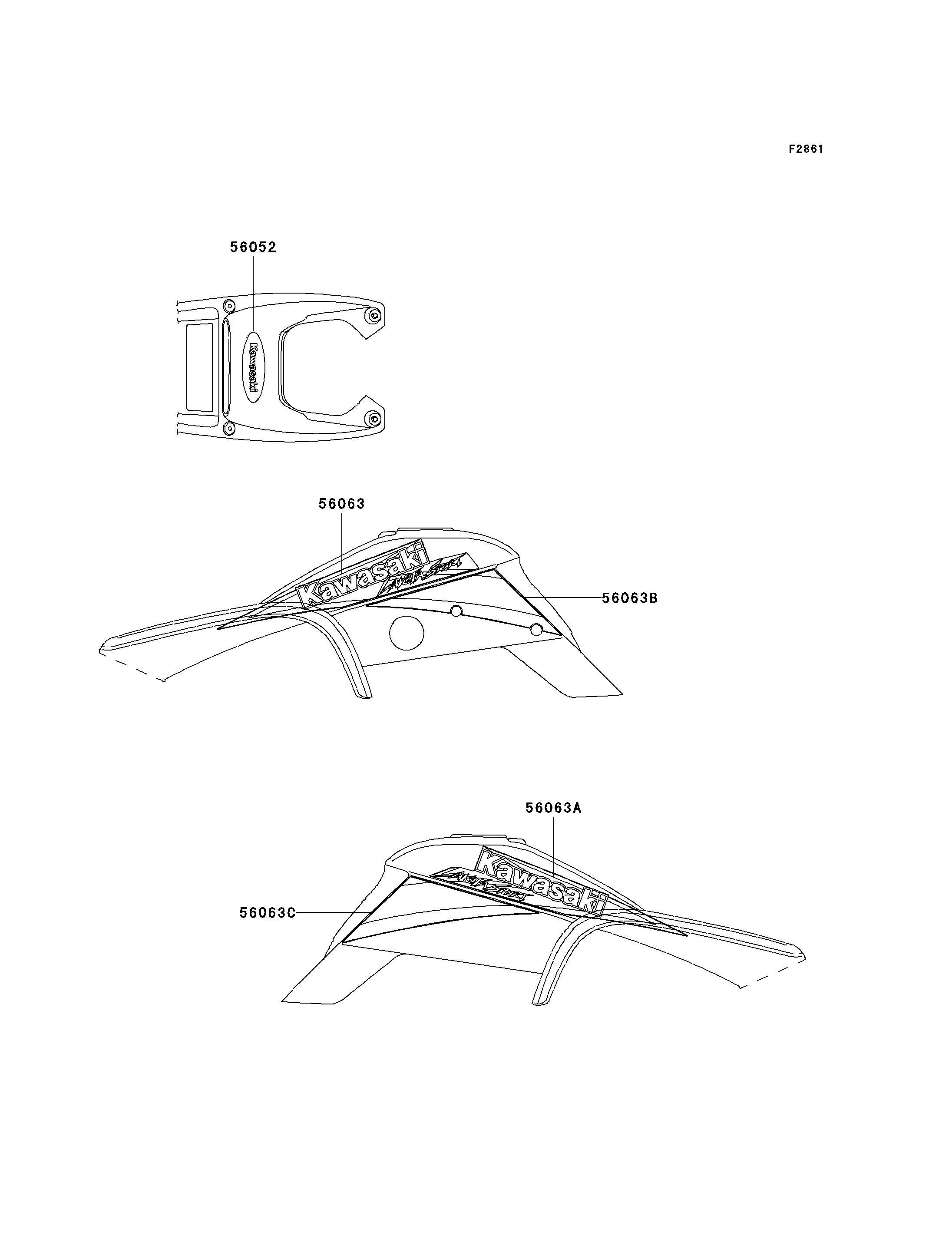

56052
56063
56063A
56063B
56063C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56052 56052-1259 1
PATTERN,FR FENDER,UPP,LH 56063 56063-1719 1
PATTERN,FR FENDER,UPP,RH 56063A 56063-1720 1
PATTERN,FR FENDER,LWR,LH 56063B 56063-1721 1
PATTERN,FR FENDER,LWR,RH 56063C 56063-1722 1
