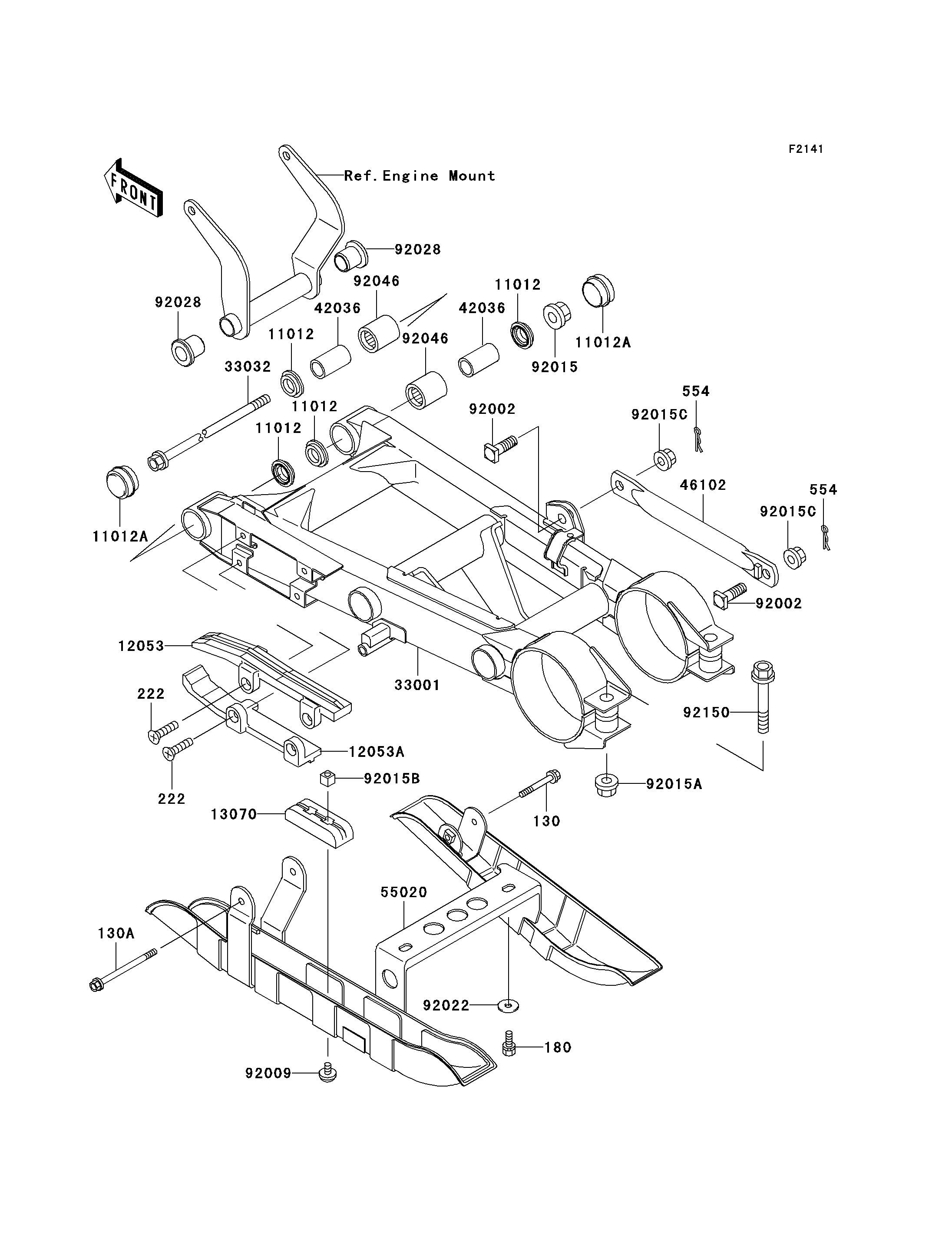

2001 Lakota Sport - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
130A
180
222
222
554
554
11012
11012
11012
11012
11012A
11012A
12053
12053A
13070
33001
33032
42036
42036
46102
55020
92002
92002
92009
92015
92015A
92015B
92015C
92015C
92022
92028
92028
92046
92046
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X40 130 130G0640 1
BOLT-FLANGED 130A 130G0680 1
BOLT-UPSET-WS,6X14 180 180G0614 2
SCREW-CSK-RD-CROS,6X12 222 222B0612 4
PIN-SNAP,10MM 554 554A1000 2
CAP,SWING ARM 11012 11012-1259 4
CAP,SWING ARM 11012A 11012-1520 2
GUIDE-CHAIN,UPP 12053 12053-1194 1
GUIDE-CHAIN,LWR 12053A 12053-1195 1
GUIDE,CHAIN 13070 13070-1156 1
ARM-COMP-SWING,SILVER NO.40 33001 33001-1462-5A 1
SHAFT-SWING ARM 33032 33032-1139 1
SLEEVE,SWING ARM 42036 42036-1064 2
ROD,TORQUE,SILVER NO.40 46102 46102-1342-5A 1
GUARD,CHAIN&DICS,SILVER 55020 55020-1583-5A 1
BOLT,10X28 92002 92002-1733 2
SCREW,6X10,WHITE 92009 92009-1286 2
NUT,14MM 92015 92015-1407 1
NUT,12MM 92015A 92015-1426 2
NUT,6MM 92015B 92015-1452 2
NUT,LOCK,10MM 92015C 92015-1597 2
WASHER,6.5X20X1.6 92022 92022-1804 2
BUSHING,SWING ARM 92028 92028-1261 2
BEARING-NEEDLE,TA2030Z 92046 92046-1128 2
BOLT,FLANGED,12X62 92150 92150-1842 2
