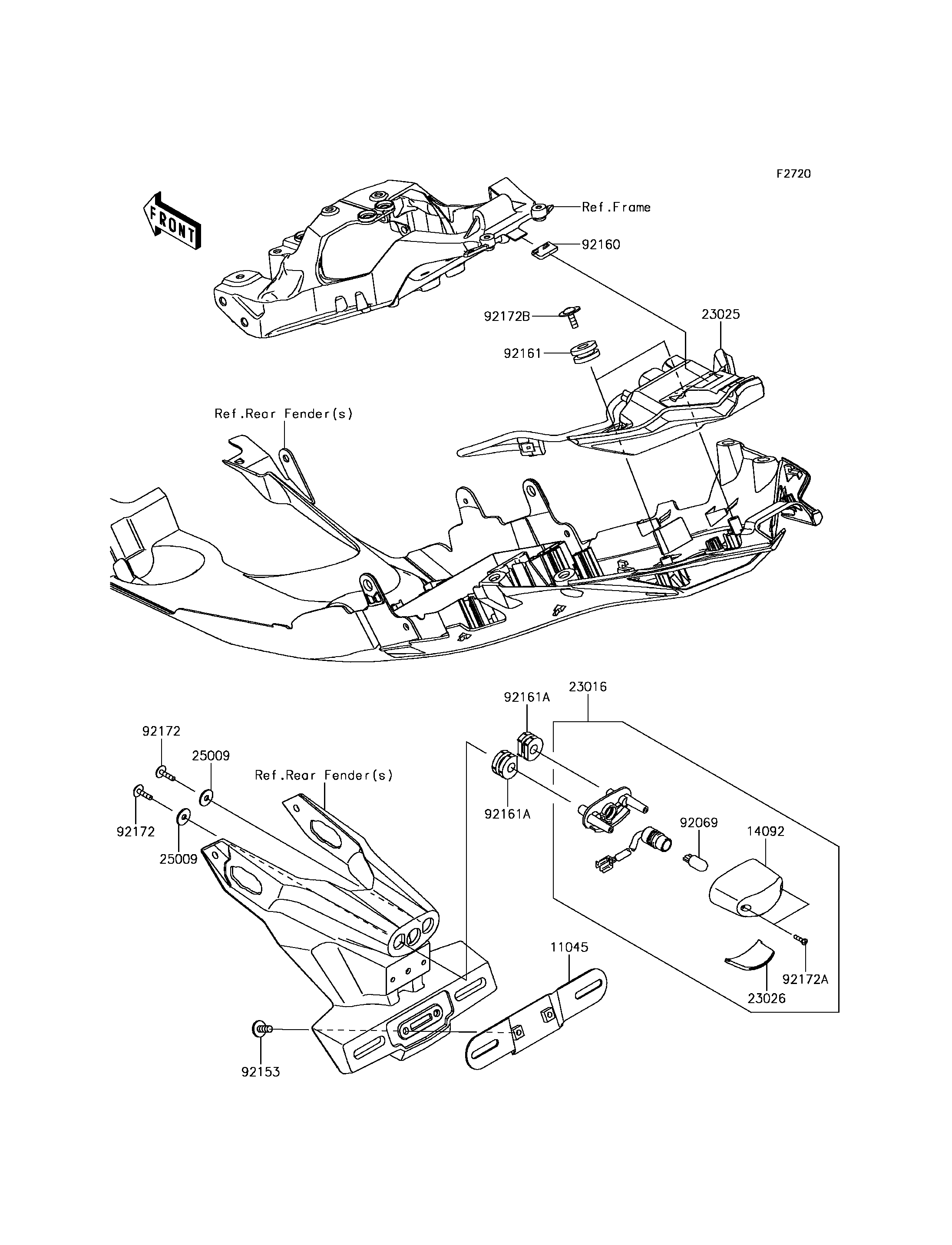

2017 Ninja ZX-10R ABS KRT Edition - Taillight(s)
11045
14092
23016
23025
23026
25009
25009
92069
92153
92160
92161
92161A
92161A
92172
92172
92172A
92172B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LICENSE | 11045 | 11045-1387 | 1 | ||
| COVER,LICENSE LAMP | 14092 | 14092-0001 | 1 | ||
| LAMP-ASSY,LICENSE | 23016 | 23016-0561 | 1 | ||
| LAMP-TAIL,LED | 23025 | 23025-0332 | 1 | ||
| LENS,LICENCE LAMP | 23026 | 23026-0023 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 2 | ||
| BULB,12V 5W | 92069 | 92069-1016 | 1 | ||
| BOLT,SOCKET,6X14 | 92153 | 92153-1446 | 2 | ||
| DAMPER | 92160 | 92160-1190 | 1 | ||
| DAMPER | 92161 | 92161-0163 | 2 | ||
| DAMPER | 92161A | 92161-0776 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 2 | ||
| SCREW,TAPPING,2.9X13 | 92172A | 92172-0343 | 2 | ||
| SCREW,TAPTITE,5X16 | 92172B | 92172-0481 | 2 |
