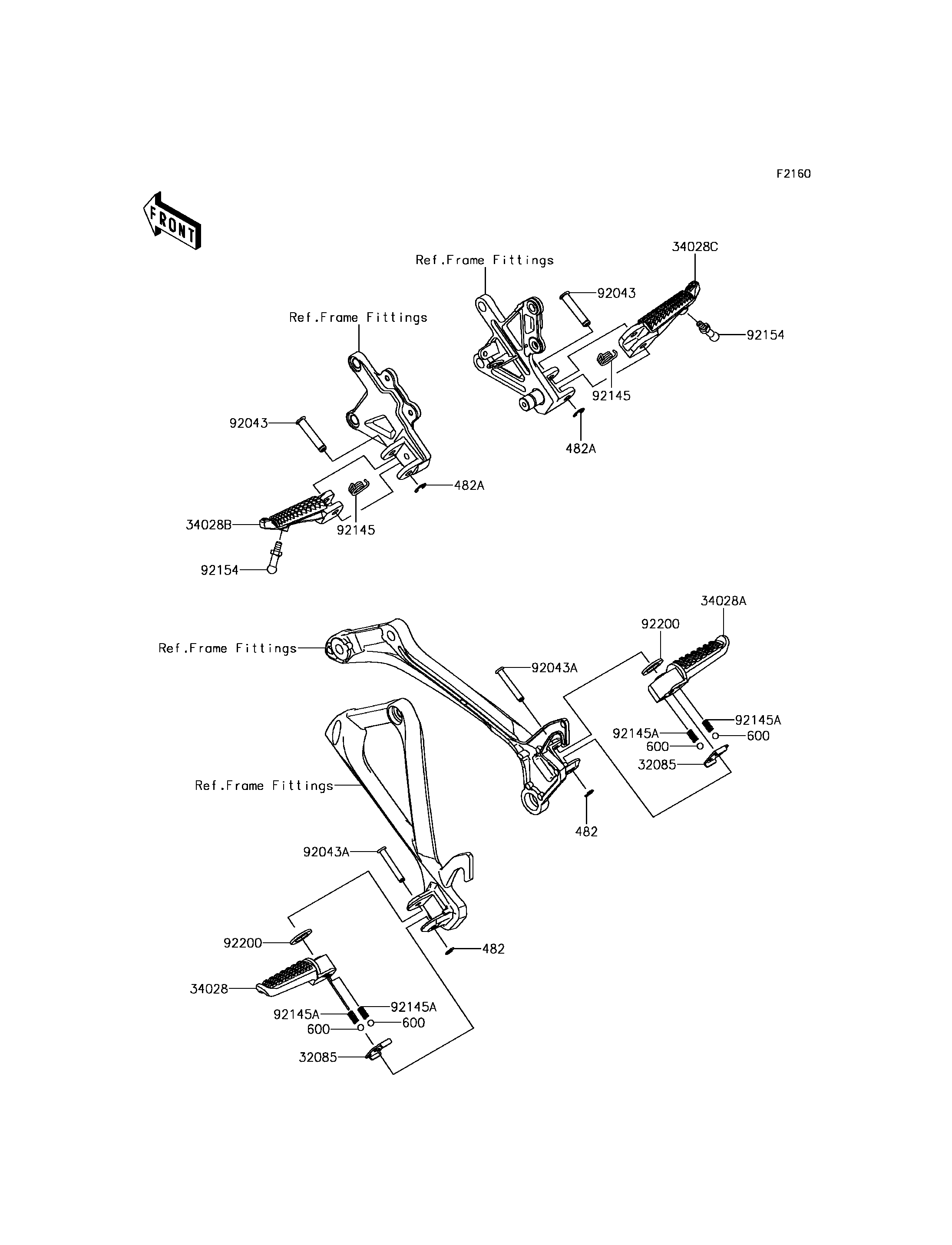

2017 Ninja ZX-10R ABS KRT Edition - Footrests

DOWNLOAD PDF
SELECT A NEW PART
482
482
482A
482A
600
600
600
600
32085
32085
34028
34028A
34028B
34028C
92043
92043
92043A
92043A
92145
92145
92145A
92145A
92145A
92145A
92154
92154
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E 482 482EA5000 2
CIRCLIP-TYPE-E 482A 482EA7000 2
BALL-STEEL,1/4 600 600A0800 4
STOPPER,REAR STEP 32085 32085-0047 2
STEP,RR,LH 34028 34028-0094 1
STEP,RR,RH 34028A 34028-0095 1
STEP,FR,LH 34028B 34028-0139 1
STEP,FR,RH 34028C 34028-0140 1
PIN,8X40.5 92043 92043-0877 2
PIN,6X40 92043A 92043-1595 2
SPRING 92145 92145-0780 2
SPRING 92145A 92145-1319 4
BOLT,BANK SENSOR,6X10 92154 92154-1895 2
WASHER,16X26X2.3 92200 92200-0043 2
