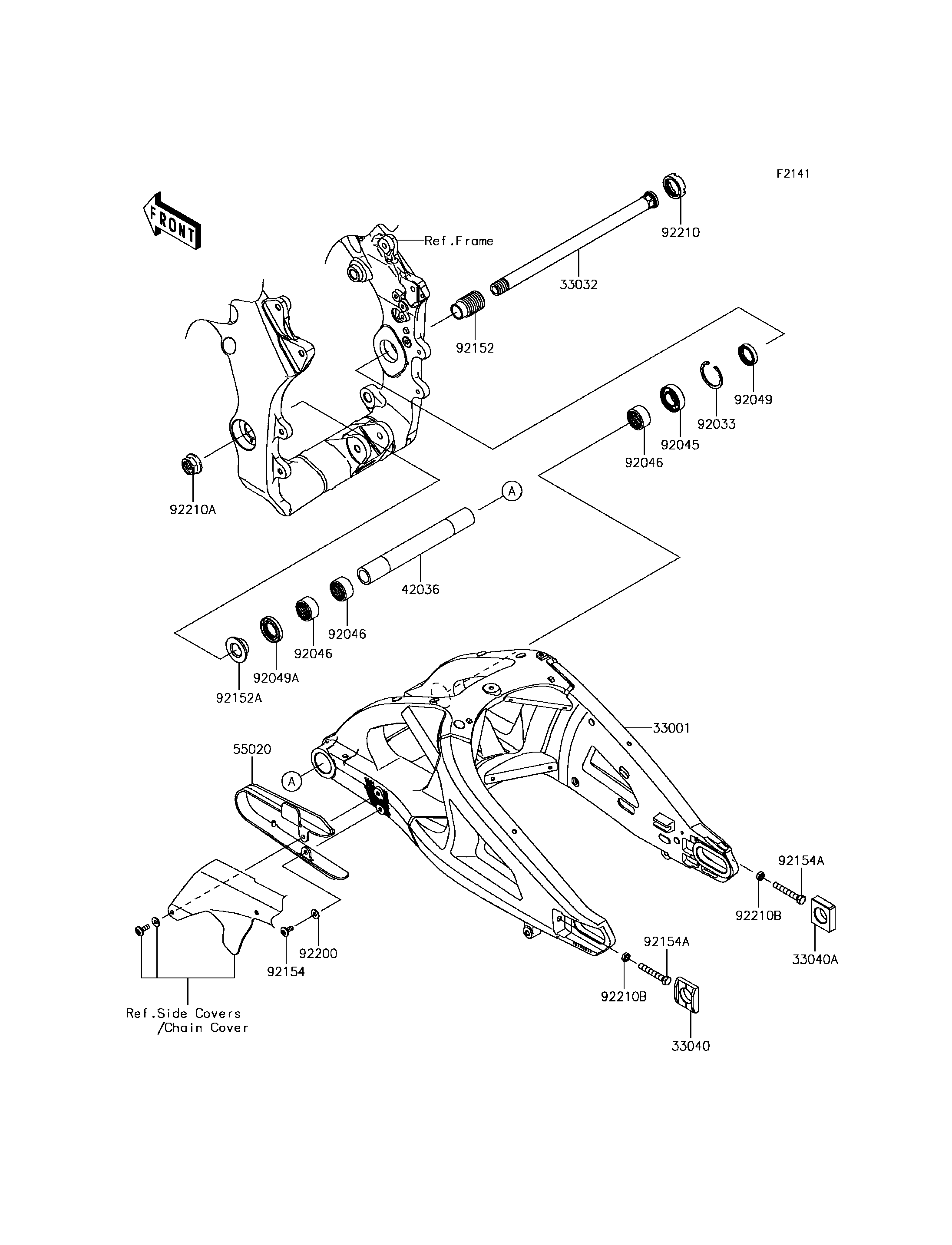

2017 Ninja ZX-10R ABS KRT Edition - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
33001
33032
33040
33040A
42036
55020
92033
92045
92046
92046
92046
92049
92049A
92152
92152A
92154
92154A
92154A
92200
92210
92210A
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING 33001 33001-0648 1
SHAFT-SWING ARM 33032 33032-0048 1
ADJUSTER-CHAIN,LH 33040 33040-0027 1
ADJUSTER-CHAIN,RH 33040A 33040-1114 1
SLEEVE,SWING ARM PIVOT,L=226 42036 42036-1341 1
GUARD,CHAIN 55020 55020-0561 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,MHSA25X42X6 92049 92049-1314 1
SEAL-OIL,MHSA25X34X7 92049A 92049-1352 1
COLLAR,SWING ARM,L=47 92152 92152-0154 1
COLLAR,20.2X25X15 92152A 92152-2169 1
BOLT,SOCKET,6X14 92154 92154-1807 1
BOLT-SMALL,8X55 92154A 92154-1962 2
WASHER,6.2X15X1.2 92200 92200-1762 1
NUT,30MM 92210 92210-0134 1
NUT,FLANGED,20MM 92210A 92210-0320 1
NUT-HEX-SMALL,8MM 92210B 92210-1459 2
