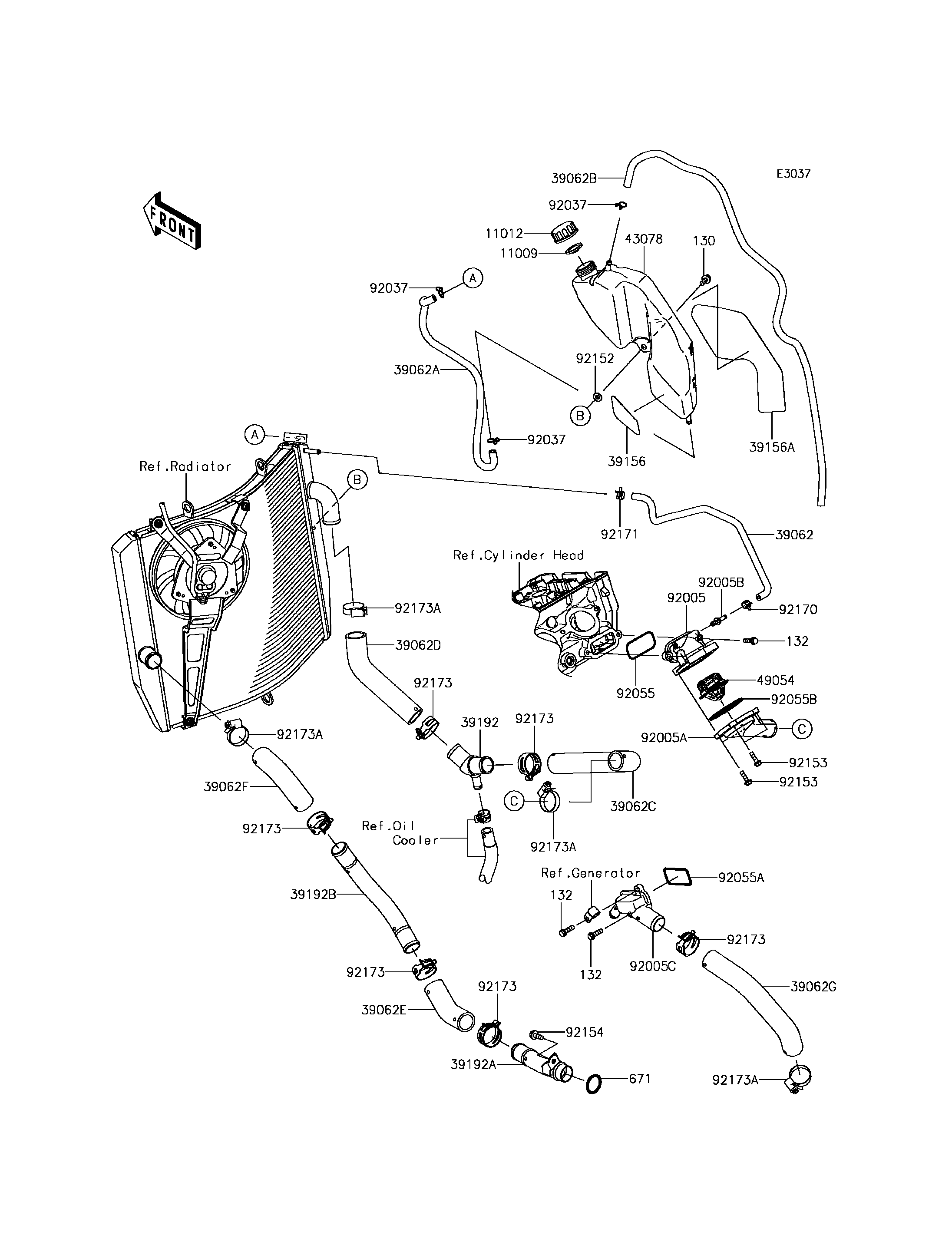

2017 Ninja ZX-10R ABS KRT Edition - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132
671
11009
11012
39062
39062A
39062B
39062C
39062D
39062E
39062F
39062G
39156
39156A
39192
39192A
39192B
43078
49054
92005
92005A
92005B
92005C
92037
92037
92037
92055
92055A
92055B
92152
92153
92153
92154
92170
92171
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED-SMALL,6X20 132 132BC0620 4
O RING,25MM 671 671B2525 1
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
HOSE,THERMO CASE-RADIATOR 39062 39062-0347 1
HOSE-COOLING,RESERVOIR 39062A 39062-0629 1
HOSE-COOLING,OVER FLOW 39062B 39062-0729 1
HOSE,THERMO CAP-3WAY PIPE 39062C 39062-0734 1
HOSE,3WAY PIPE-RADIATOR 39062D 39062-0735 1
HOSE,PIPE(RAD.)-PIPE(W/PUMP) 39062E 39062-0736 1
HOSE,RADIATOR-PIPE(WATER PUMP) 39062F 39062-0737 1
HOSE,WATER PUMP-FITTING 39062G 39062-0738 1
PAD 39156 39156-1965 1
PAD 39156A 39156-1989 1
PIPE,3WAY 39192 39192-0614 1
PIPE,TUBE(RADIATOR)-WATER PUMP 39192A 39192-0617 1
PIPE,TUBE(RADIATOR)-TUBE(PUMP) 39192B 39192-0618 1
RESERVOIR 43078 43078-0581 1
THERMOSTAT 49054 49054-0004 1
FITTING,THERMO CASE 92005 92005-0122 1
FITTING,THERMO CAP 92005A 92005-0818 1
FITTING 92005B 92005-0826 1
FITTING 92005C 92005-0837 1
CLAMP,TUBE 92037 92037-147 3
RING-O,YP 27.6 57.6 1.9 92055 92055-0021 1
RING-O 92055A 92055-0209 1
RING-O,53.5X2.6 92055B 92055-0831 1
COLLAR 92152 92152-1414 1
BOLT,FLANGED,5X18 92153 92153-1588 4
BOLT,FLANGED-SMALL,6X16 92154 92154-1893 1
CLAMP 92170 92170-1493 1
CLAMP 92171 92171-0719 1
CLAMP,34MM 92173 92173-1360 6
CLAMP 92173A 92173-1548 4
