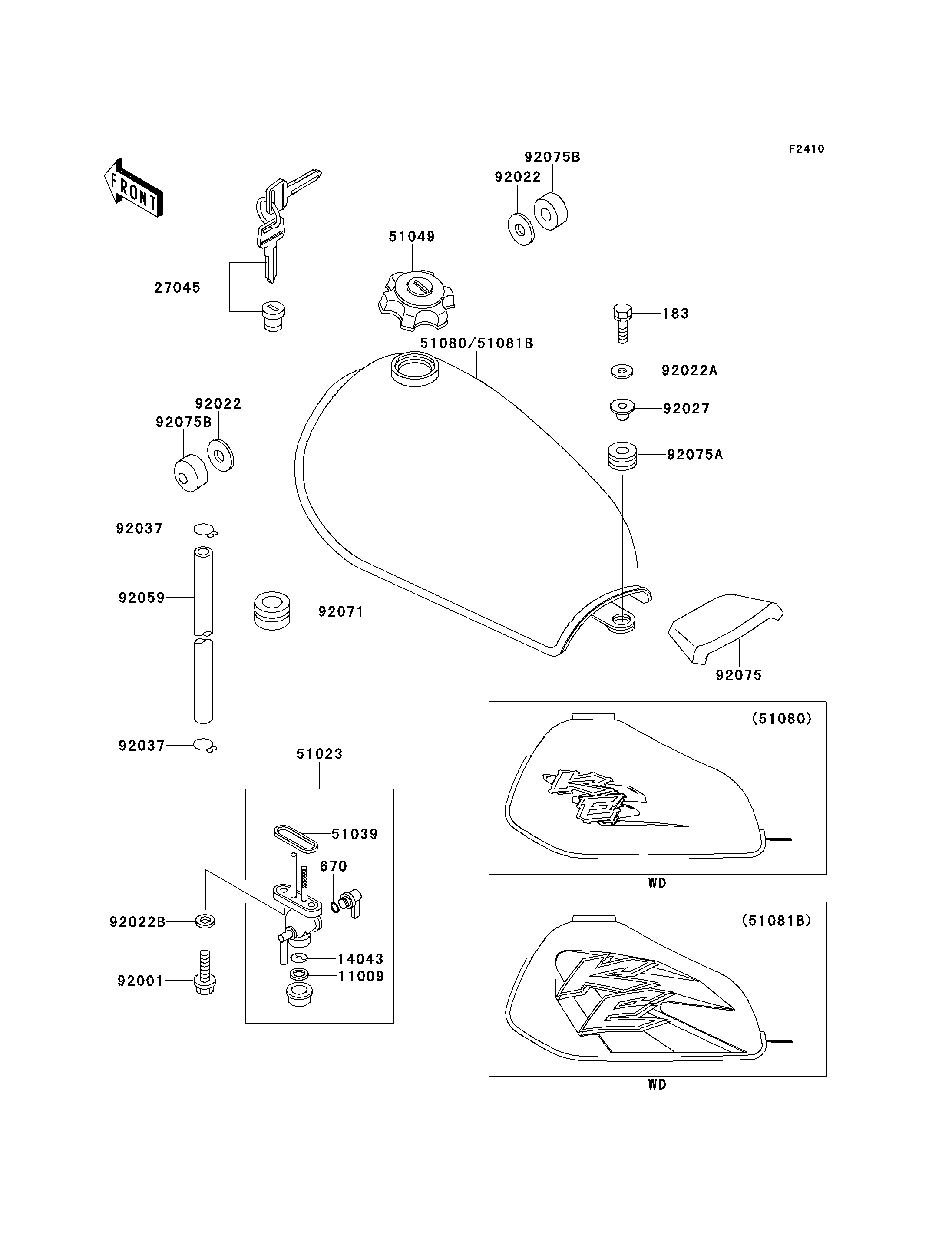

1997 KE100 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
183
670
11009
14043
27045
51023
51039
51049
51080
92001
92022
92022
92022A
92022B
92027
92037
92037
92059
92071
92075
92075A
92075B
92075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL 183 183B0835 1
O RING,10MM 670 670B2010 1
GASKET,FUEL TAP CUP 11009 11009-1013 1
FILTER,FUEL TAP 14043 14043-1002 1
SWITCH-ASSY,TANK CAP 27045 27045-5024 1
TAP-ASSY,FUEL 51023 51023-1020 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1105 1
TANK-COMP-FUEL,L.GREEN 51080 51080-5268-7F 1
BOLT,6X20 92001 92001-1091 2
WASHER,10.5X26X2.3 92022 92022-044 2
WASHER,8.5X26X1.6 92022A 92022-092 1
WASHER,6.2X11X1.5 92022B 92022-183 2
COLLAR,12.7X15.9X19 92027 92027-223 1
CLAMP,TUBE 92037 92037-010 2
TUBE,4.5X9X310 92059 92059-063 1
GROMMET,PIPE 92071 92071-038 1
DAMPER,FUEL TANK 92075 92075-106 1
DAMPER 92075A 92075-1086 1
DAMPER,FUEL TANK 92075B 92075-125 2
