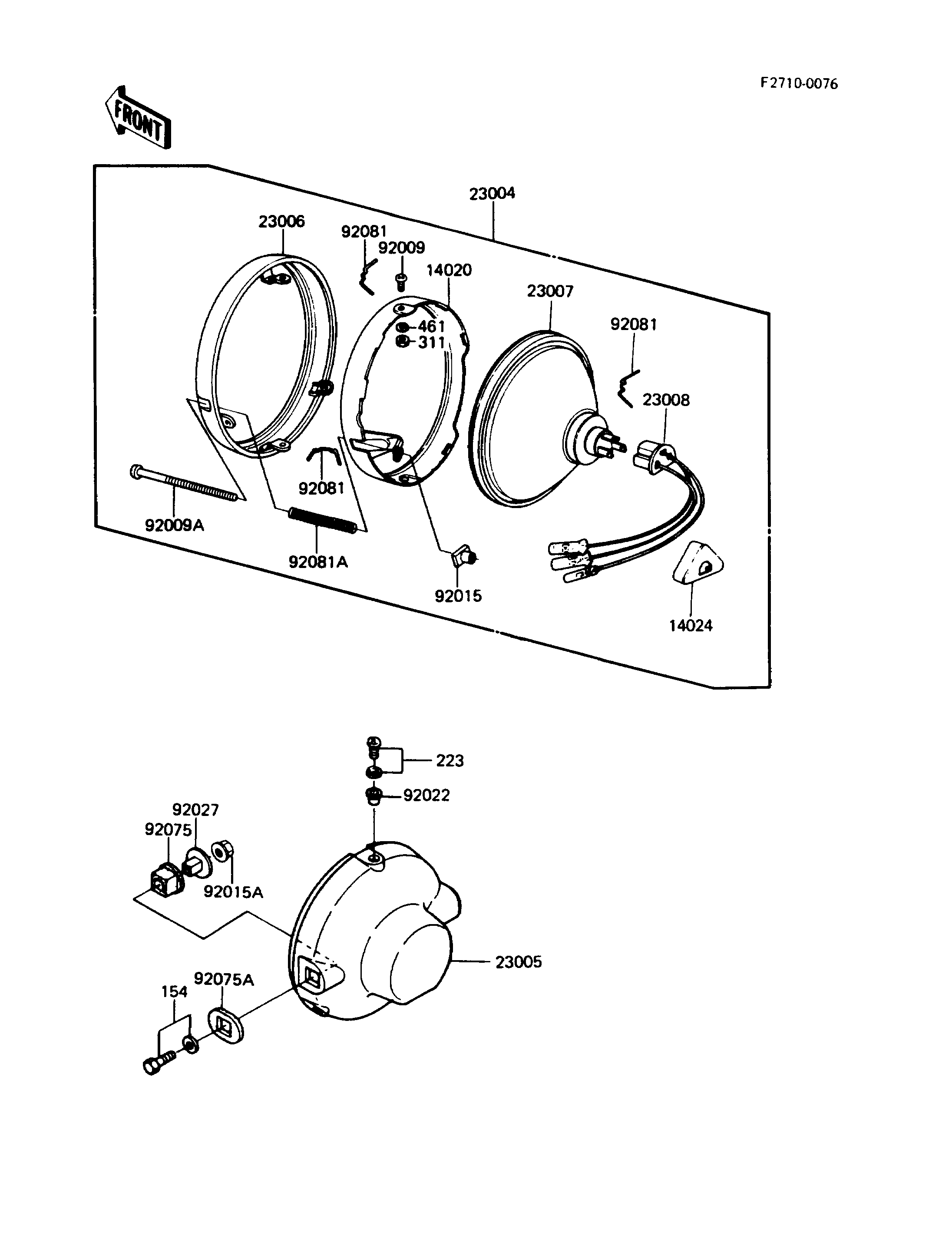

1988 KE100 - Head Lamp

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER,SEALED BEAM 14020 23072-002 1
COVER,HEAD LAMP SOCKET 14024 23081-001 1
LAMP-HEAD 23004 23004-1030 1
BODY-COMP-HEAD LAMP,BLACK 23005 23005-1007-6Z 1
RIM-LAMP 23006 23006-1004 1
LENS-COMP,"4020" MARK 23007 23007-055 1
SOCKET-ASSY,HEAD LAMP 23008 23008-044 1
SCREW,LENS FITTING 92009 23019-026 2
SCREW,FOCUS ADJUSTING 92009A 23019-027 1
NUT,ADJUSTING 92015 23020-012 1
NUT,FLANGED,8MM 92015A 92015-1014 2
WASHER 92022 23021-010 3
COLLAR,L=15.6 92027 92027-1105 2
DAMPER,HEAD LAMP 92075 92075-1077 2
DAMPER,HEAD LAMP 92075A 92075-1078 2
SPRING,HEAD LAMP LENS 92081 23009-015 3
SPRING,FOCUS ADJUSTING 92081A 23014-012 1
BOLT-WP-SMALL 154 154N0830 2
SCREW-PAN-WS-CROS 223 223B0512 3
NUT-HEX 311 311B0400 2
WASHER-SPRING,5MM 461 461F0500 2
