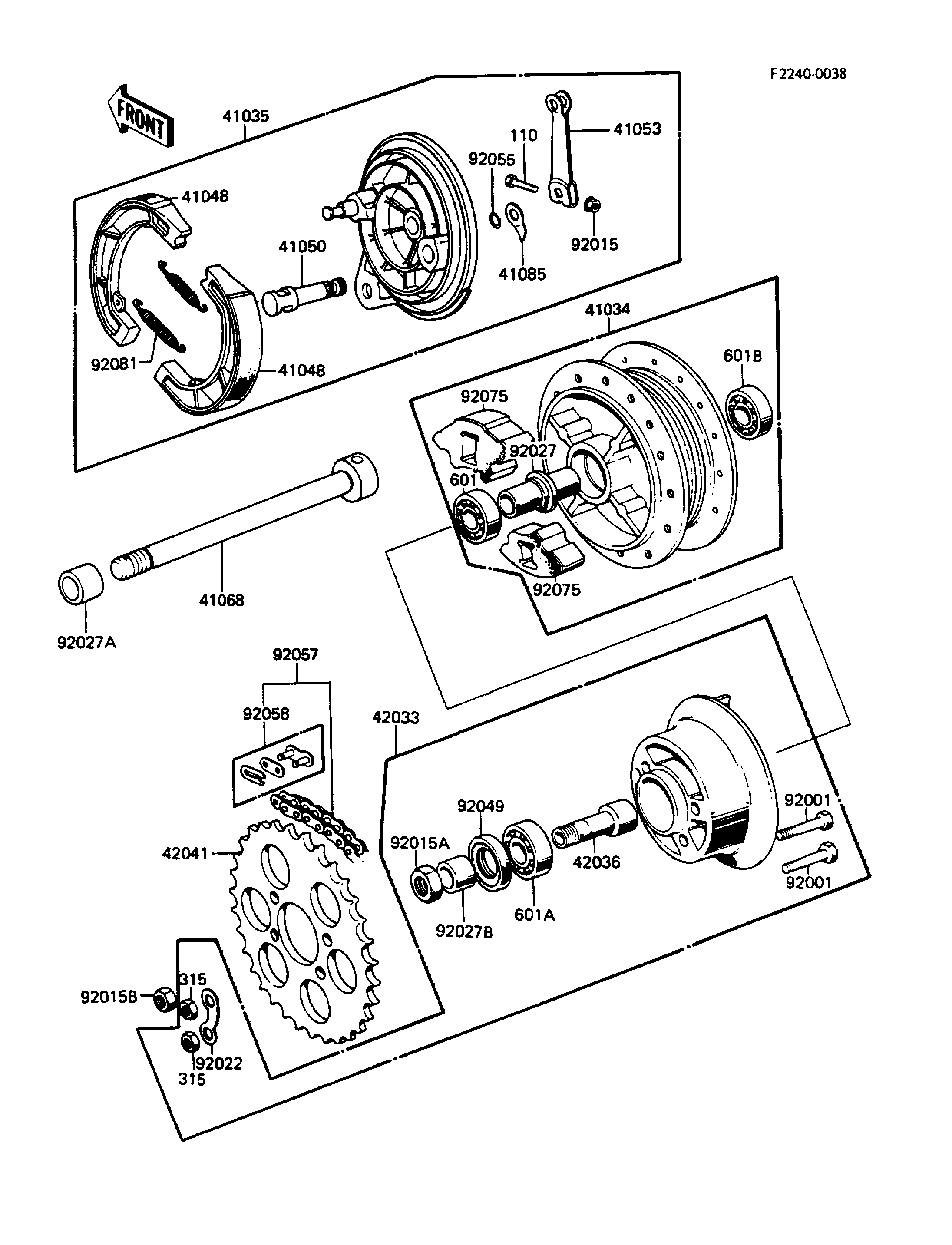

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR | 41034 | 41034-1048 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1081 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-017 | 2 | ||
| CAM-BRAKE | 41050 | 42026-018 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 42029-020 | 1 | ||
| AXLE,RR | 41068 | 41068-1229 | 1 | ||
| INDICATOR,BRAKE SHOE | 41085 | 41085-003 | 1 | ||
| COUPLING-ASSY | 42033 | 42033-1042 | 1 | ||
| SLEEVE,RR HUB COUPLING | 42036 | 42036-013 | 1 | ||
| SPROCKET-HUB,40T | 42041 | 42041-1095 | 1 | ||
| BOLT,HUB SPROCKET,10X36 | 92001 | 92001-082 | 4 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT,16MM | 92015A | 42045-004 | 1 | ||
| NUT,10MM | 92015B | 42045-005 | 1 | ||
| WASHER,LOCK | 92022 | 92088-011 | 2 | ||
| COLLAR,L=58 | 92027 | 42010-005 | 1 | ||
| COLLAR,12.2X22X28.5 | 92027A | 42032-006 | 1 | ||
| COLLAR,17X25X12.5 | 92027B | 42037-003 | 1 | ||
| SEAL-OIL,COUPLING | 92049 | 92052-003 | 1 | ||
| RING-O,BRAKE CAM | 92055 | 92055-004 | 1 | ||
| CHAIN,DRIVE,EK428-G 112L | 92057 | 92057-1099 | 1 | ||
| JOINT-CHAIN,EK428-G | 92058 | 92058-1014 | 1 | ||
| DAMPER,RR HUB SHOCK | 92075 | 42014-016 | 4 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
| BOLT,6X30 | 110 | 110G0630 | 1 | ||
| NUT-HEX-FINE,10MM | 315 | 315B1000 | 4 | ||
| BEARING-BALL,#6201G | 601 | 601B6201G | 1 | ||
| BEARING-BALL,#6203G | 601A | 601B6203G | 1 | ||
| BEARING-BALL,#6301ZG | 601B | 601B6301ZG | 1 |
