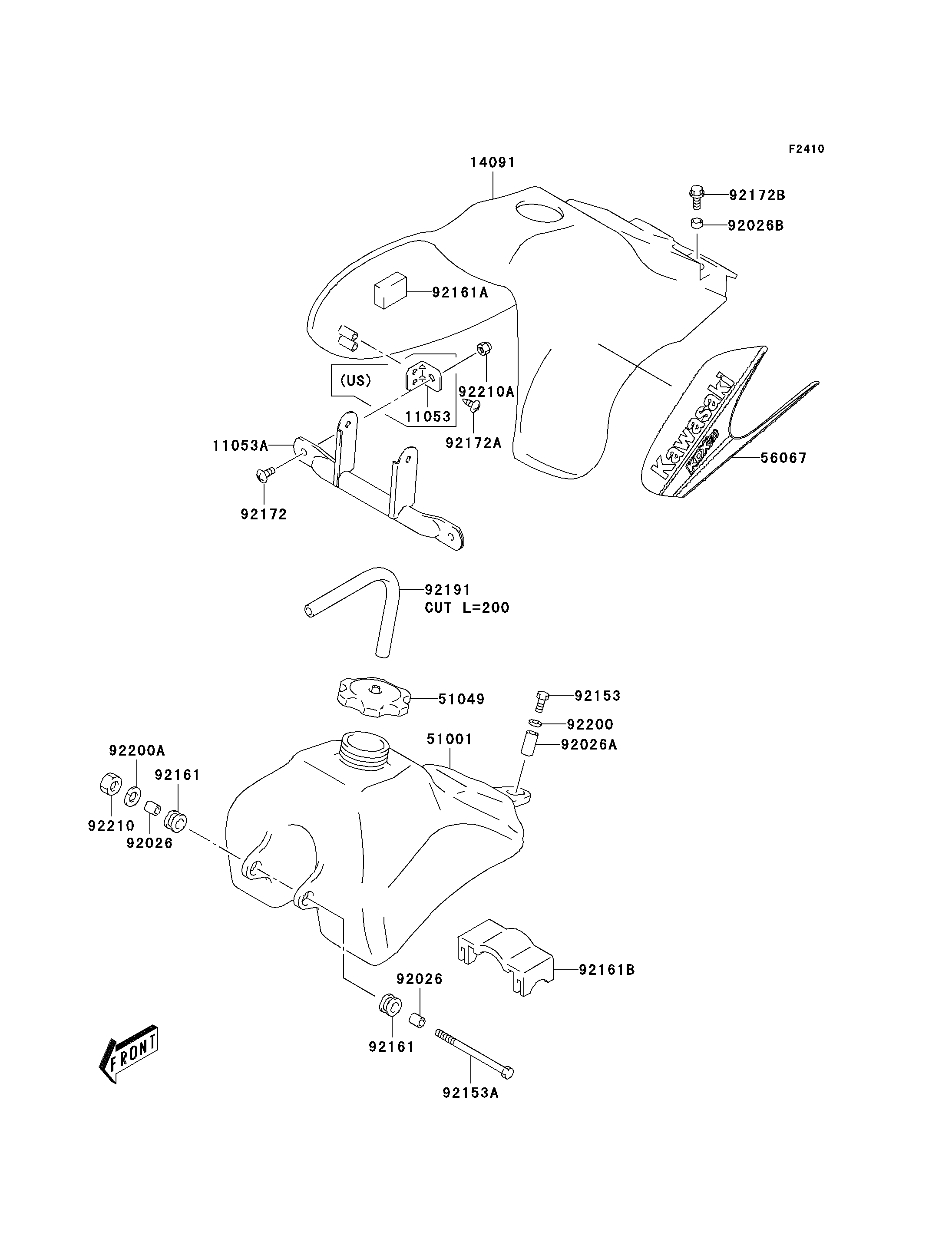

2006 KDX50 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11053A
14091
51001
51049
56067
92026
92026
92026A
92026B
92153
92153A
92161
92161
92161A
92161B
92172
92172A
92172B
92191
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK COVER 11053A 11053-S026 1
COVER,FUEL TANK,L.GREEN 14091 14091-S093-908 1
TANK-COMP-FUEL 51001 51001-S009 1
CAP-TANK 51049 51049-S005 1
PATTERN SET,TANK,BLK/WHT/GRN 56067 56067-S009-904 1
SPACER,FUEL TANK 92026 92026-S058 2
SPACER,FUEL TANK,RR 92026A 92026-S113 1
SPACER,FUEL TANK COVER,RR 92026B 92026-S114 3
BOLT 92153 92153-S126 1
BOLT,FUEL TANK 92153A 92153-S319 1
DAMPER,FUEL TANK 92161 92161-S067 2
DAMPER,FUEL TANK COVER 92161A 92161-S110 2
DAMPER 92161B 92161-S112 1
SCREW 92172 92172-S017 2
SCREW,FUEL TANK 92172A 92172-S188 4
SCREW,FUEL TANK 92172B 92172-S189 3
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
WASHER,6.5X18X1 92200 92200-S004 2
WASHER 92200A 92200-S102 1
NUT 92210 92210-S001 1
NUT 92210A 92210-S039 2
BRACKET,FUEL TANK COVER 11053 11053-S025 2 US
