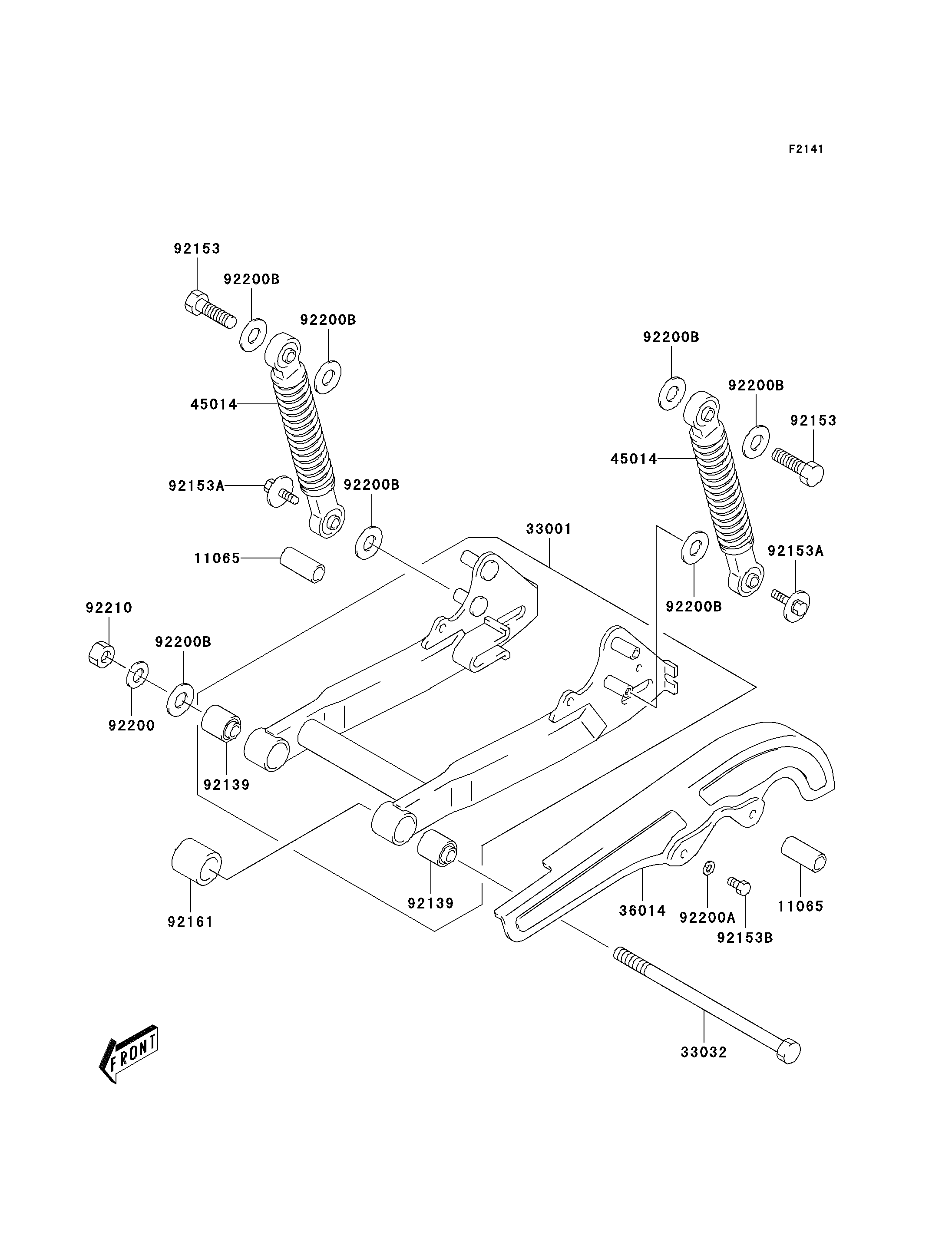

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
33001
33032
36014
45014
45014
92139
92139
92153
92153
92153A
92153A
92153B
92161
92200
92200A
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-S044 | 2 | ||
| ARM-COMP-SWING,B.SILVER | 33001 | 33001-S007-530 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-S006 | 1 | ||
| CASE-CHAIN | 36014 | 36014-S006 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-S020 | 2 | ||
| BUSHING,10X22X28 | 92139 | 92139-S031 | 2 | ||
| BOLT,10X35 | 92153 | 92153-S324 | 2 | ||
| BOLT,6X12 | 92153A | 92153-S325 | 2 | ||
| BOLT,6X12 | 92153B | 92153-S326 | 2 | ||
| DAMPER | 92161 | 92161-S181 | 1 | ||
| WASHER,MAGNETO LOCK | 92200 | 92200-S091 | 1 | ||
| WASHER | 92200A | 92200-S102 | 2 | ||
| WASHER,10.5X22X1.6 | 92200B | 92200-S173 | 7 | ||
| NUT | 92210 | 92210-S002 | 1 |
