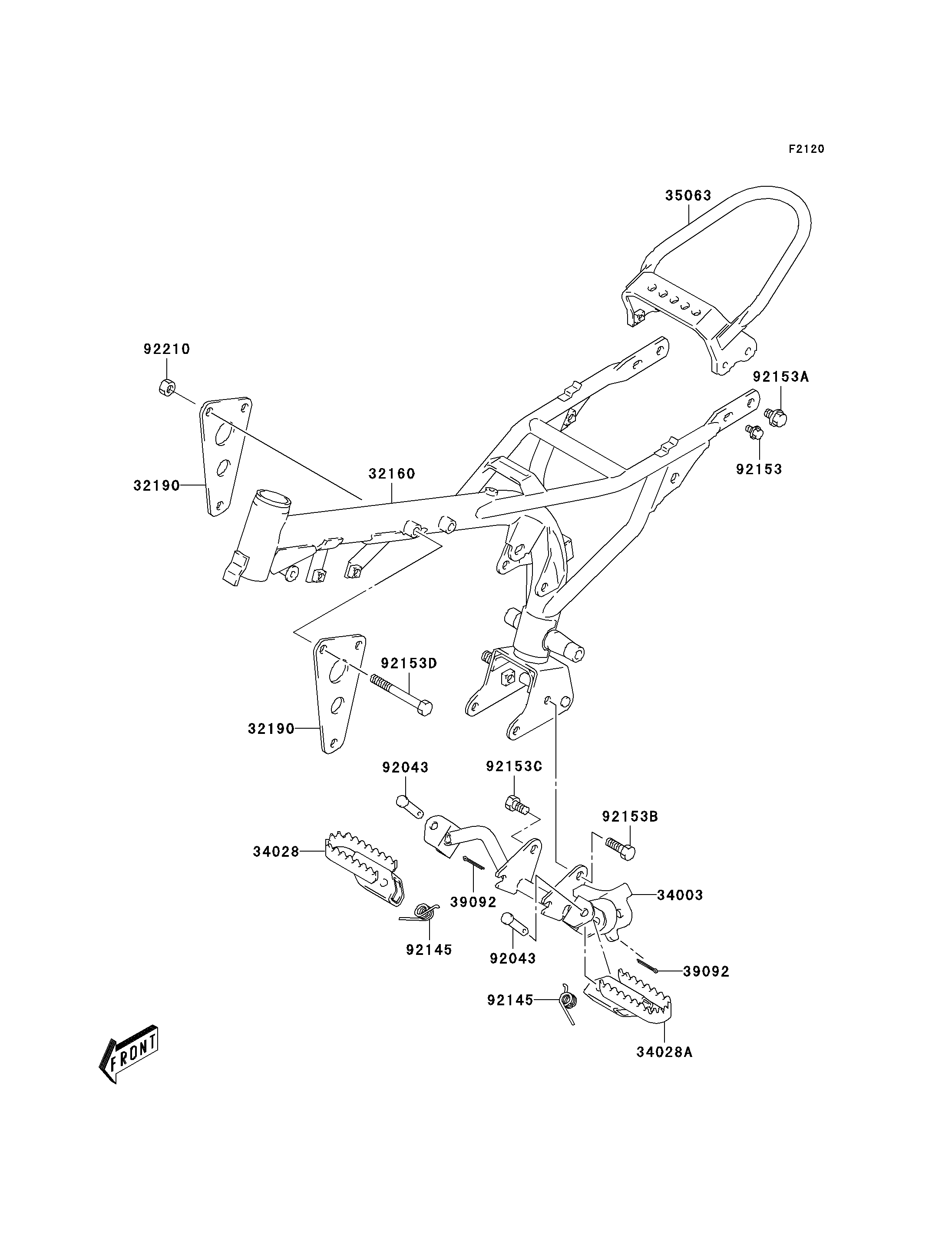

2006 KDX50 - Frame

DOWNLOAD PDF
SELECT A NEW PART
32160
32190
32190
34003
34028
34028A
35063
39092
39092
92043
92043
92145
92145
92153
92153A
92153B
92153C
92153D
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,BLACK 32160 32160-S012-503 1
BRACKET-ENGINE 32190 32190-S007 2
HOLDER-STEP 34003 34003-S004 1
STEP,RH,BLACK 34028 34028-S005-503 1
STEP,LH,BLACK 34028A 34028-S006-503 1
STAY,RR 35063 35063-S001 1
PIN-HAIR,FR FOOTREST COTTER 39092 39092-S004 2
PIN 92043 92043-S046 2
SPRING 92145 92145-S118 2
BOLT 92153 92153-S010 2
BOLT 92153A 92153-S015 2
BOLT 92153B 92153-S317 1
BOLT 92153C 92153-S321 1
BOLT 92153D 92153-S401 2
NUT 92210 92210-S094 2
