Parts Diagrams |

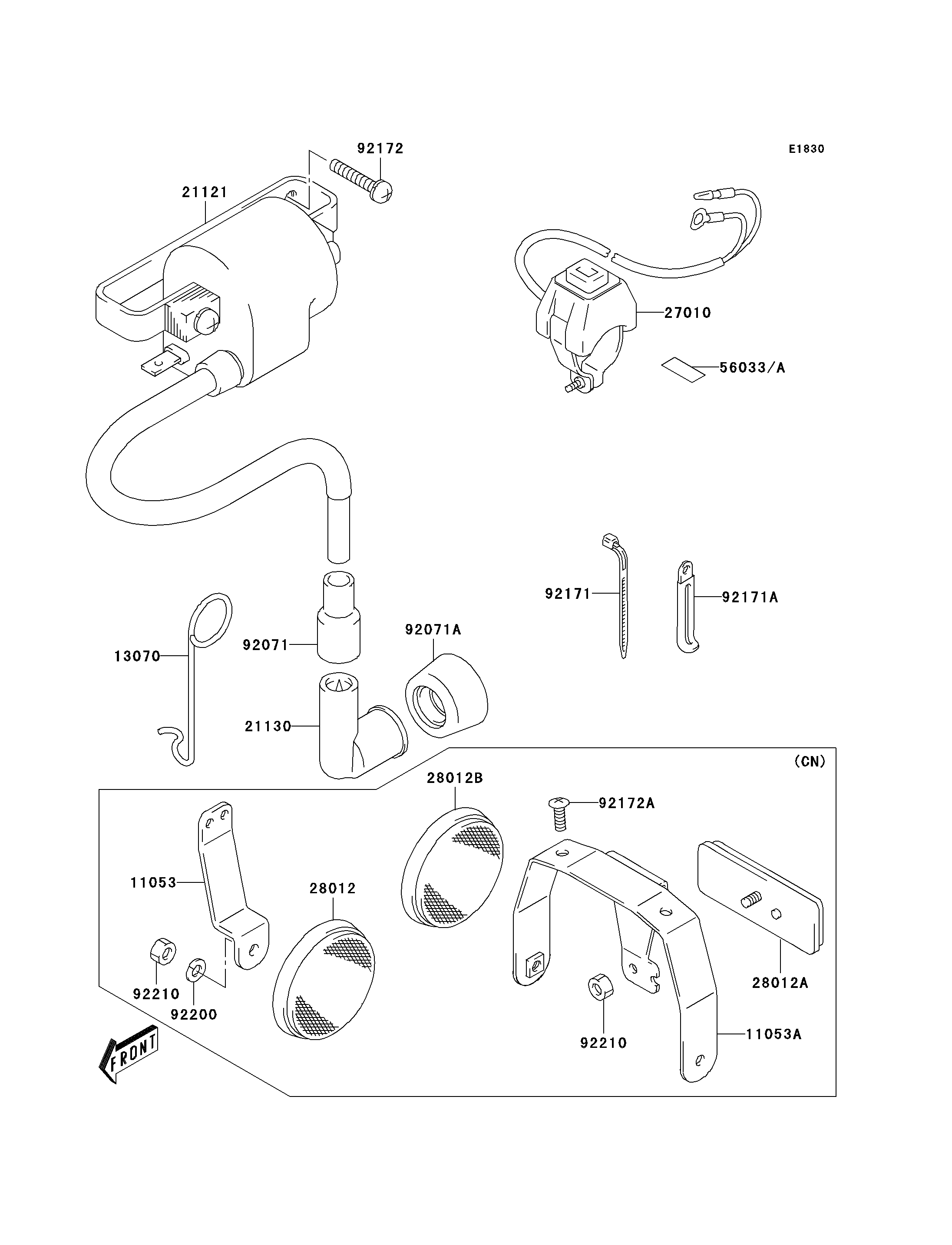

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,HIGHTENSION CORD | 13070 | 13070-S015 | 1 | ||
| COIL-IGNITION | 21121 | 21121-S004 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-S007 | 1 | ||
| SWITCH,ENGINE STOP | 27010 | 27010-S027 | 1 | ||
| GROMMET,HIGHTENSION | 92071 | 92071-S004 | 1 | ||
| GROMMET,SPARK PLUG | 92071A | 92071-S008 | 1 | ||
| CLAMP,L=165 | 92171 | 92171-S016 | 1 | ||
| CLAMP,L=45 | 92171A | 92171-S132 | 1 | ||
| SCREW,IGNITION COIL | 92172 | 92172-S187 | 2 | ||
| BRACKET,RR | 11053 | 11053-S027 | 2 | CN | |
| BRACKET,RR | 11053A | 11053-S028 | 1 | CN | |
| REFLECTOR-REFLEX,FR | 28012 | 28012-S001 | 2 | CN | |
| REFLECTOR-REFLEX,RR | 28012A | 28012-S003 | 1 | CN | |
| REFLECTOR-REFLEX,REAR SIDE | 28012B | 28012-S004 | 2 | CN | |
| LABEL-MANUAL,ENGINE STOP | 56033 | 56033-S014 | 1 | US | |
| LABEL-MANUAL,ENGINE STOP | 56033A | 56033-S016 | 1 | CN | |
| SCREW | 92172A | 92172-S193 | 2 | CN | |
| WASHER,BRAKE LEVER | 92200 | 92200-S168 | 2 | CN | |
| NUT | 92210 | 92210-S065 | 3 | CN |
| GUIDE,HIGHTENSION CORD | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,ENGINE STOP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGHTENSION | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,SPARK PLUG | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=165 | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=45 | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,IGNITION COIL | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RR | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BRACKET,RR | |
| REF # | 11053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| REFLECTOR-REFLEX,FR | |
| REF # | 28012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| REFLECTOR-REFLEX,RR | |
| REF # | 28012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| REFLECTOR-REFLEX,REAR SIDE | |
| REF # | 28012B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-MANUAL,ENGINE STOP | |
| REF # | 56033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| LABEL-MANUAL,ENGINE STOP | |
| REF # | 56033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SCREW | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| WASHER,BRAKE LEVER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN |
| REMARKS | |
