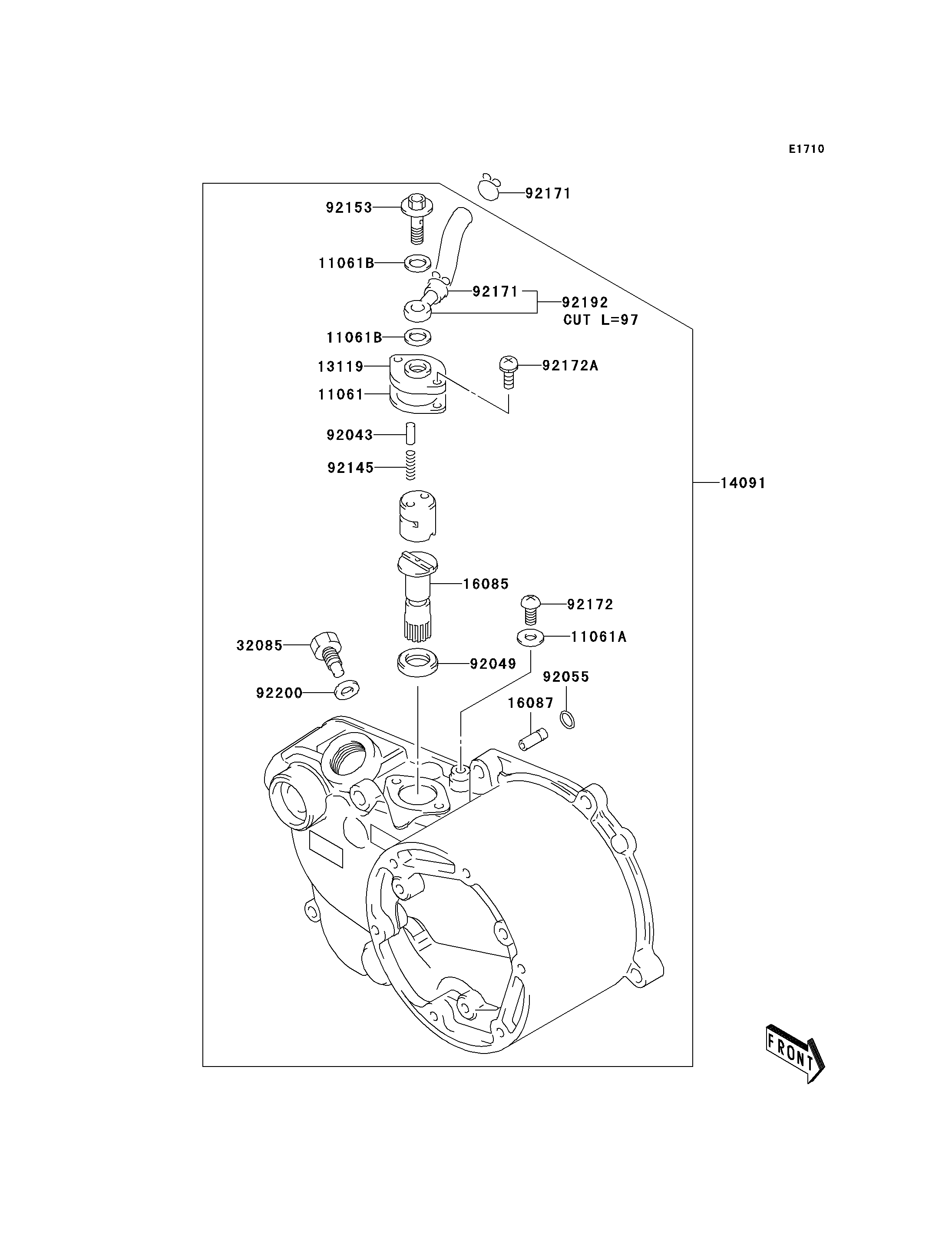

2006 KDX50 - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11061B
13119
14091
16085
16087
32085
92043
92049
92055
92145
92153
92171
92171
92172
92172A
92192
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PUMP 11061 11061-S043 2
GASKET,AIR VENT SCREW 11061A 11061-S044 1
GASKET 11061B 11061-S045 2
CAM-RELEASE 13119 13119-S001 1
COVER,CLUTCH 14091 14091-S119 1
GEAR 16085 16085-S002 1
VALVE-CHECK,CRANK 16087 16087-S002 1
STOPPER 32085 32085-S005 1
PIN,SUB 92043 92043-S025 1
SEAL-OIL,OIL PUMP 92049 92049-S027 1
RING-O,CHECK VALVE 92055 92055-S038 1
SPRING,OIL PUMP PLUNGER 92145 92145-S058 1
BOLT 92153 92153-S192 1
CLAMP,OIL HOSE 92171 92171-S062 2
SCREW 92172 92172-S110 1
SCREW,OIL PUMP 92172A 92172-S121 2
TUBE,KDX50-A3 92192 92192-S037 1
WASHER,PLUNGER 92200 92200-S084 1
