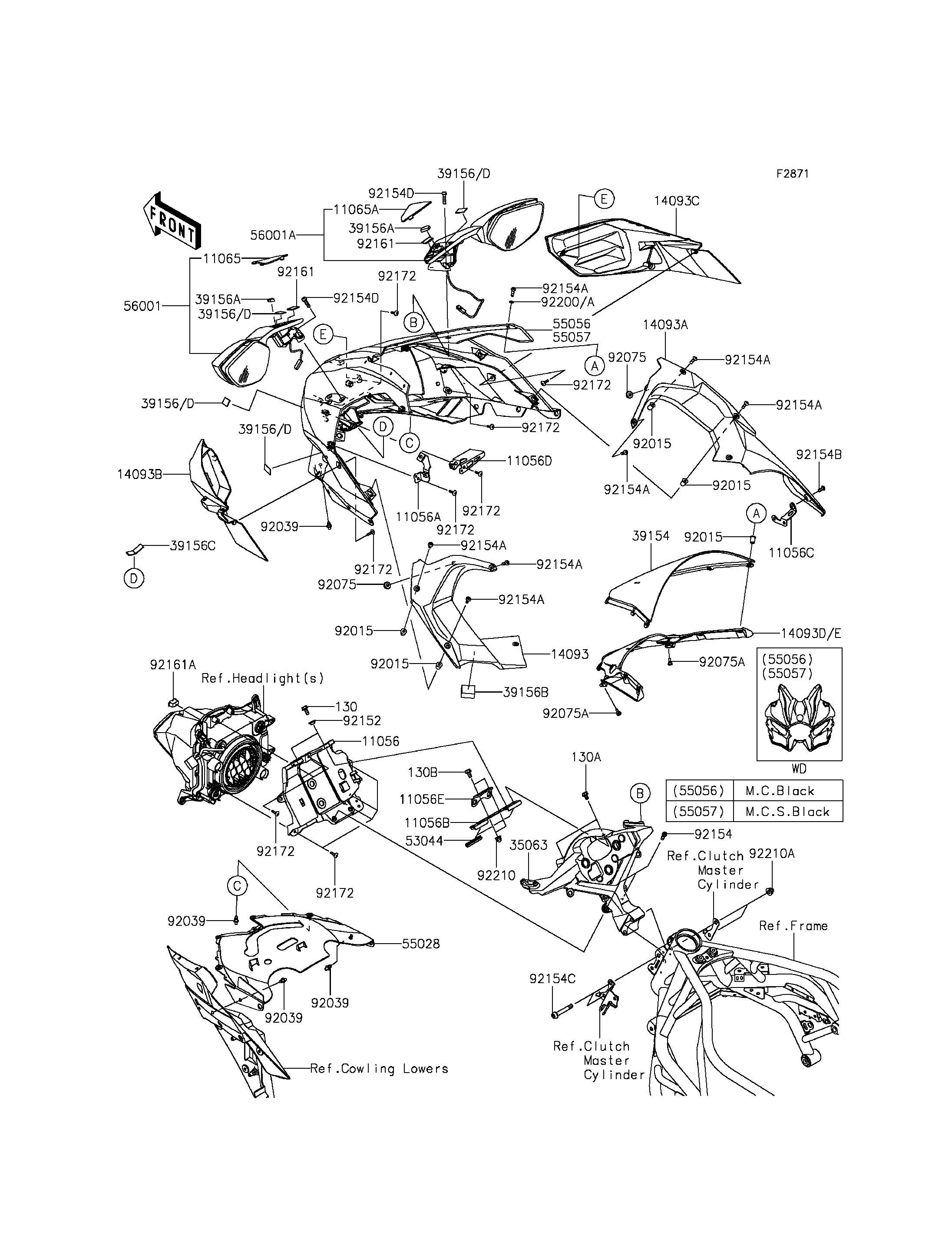

2016 NINJA H2™ - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
11056D
11056D
11056E
11056E
11065
11065
11065A
11065A
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
14093E
14093E
35063
35063
39154
39154
39156A
39156A
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156D
39156D
39156D
39156D
39156D
39156D
53044
53044
55028
55028
55057
55057
56001
56001
56001A
56001A
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
130
130
130A
130A
130B
130B
92200A
92200A
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 11056 11056-4497 1
BRACKET,RAM AIR DUCT 11056A 11056-4499 1
BRACKET,METER STAY 11056B 11056-7076 1
BRACKET,INNER COVER 11056C 11056-7098 1
BRACKET,HEAD LAMP HARNESS 11056D 11056-7263 1
BRACKET,V.D. SENSOR 11056E 11056-7534 1
CAP,UPP,LH 11065 11065-0922 1
CAP,UPP,RH 11065A 11065-0923 1
COVER,INNER,LH 14093 14093-0182 1
COVER,INNER,RH 14093A 14093-0183 1
COVER,DUCT,LH 14093B 14093-0185 1
COVER,DUCT,RH 14093C 14093-0186 1
COVER,METER VISOR 14093E 14093-0499 1
STAY,METER,M.F.S.BLACK 35063 35063-1342-46R 1
WINDSHIELD 39154 39154-0341 1
PAD,12X10X8 39156A 39156-1809 2
PAD,20X30X24 39156B 39156-1900 1
PAD,10X50X2 39156C 39156-1924 1
PAD,15X25X1 39156D 39156-2119 6
TRIM 53044 53044-0580 2
COWLING,UPP,LWR 55028 55028-0539 1
COWLING,UPP,M.C.S.BLACK 55057 55057-5147-53X 1
MIRROR-ASSY,LH,M.F.S.BLACK 56001 56001-0320-739 1
MIRROR-ASSY,RH,M.F.S.BLACK 56001A 56001-0321-739 1
NUT,WELL,5MM 92015 92015-1757 10
RIVET 92039 92039-0060 4
DAMPER,6X16X7 92075 92075-1011 2
DAMPER,6X10X15 92075A 92075-1808 2
COLLAR,6.5X10X5.6 92152 92152-0445 2
BOLT,SOCKET,6X18 92154 92154-1455 2
BOLT,SOCKET,5X16 92154A 92154-1560 12
BOLT,SOCKET,5X12 92154B 92154-1561 1
BOLT,SOCKET,8X52 92154C 92154-1710 2
BOLT,SOCKET,6X22 92154D 92154-1724 4
DAMPER,16X23X2 92161 92161-1696 2
DAMPER,HEAD LAMP 92161A 92161-1734 1
SCREW,TAPPING,5X16 92172 92172-0238 14
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X10 130A 130BB0610 2
BOLT-FLANGED,6X12 130B 130R0612 2
WASHER,5.2X10X1.0 92200A 92200-1820 6
NUT,CAP,6MM 92210 92210-0003 2
NUT,CAP,8MM 92210A 92210-1132 2
